12183 - Troy-Bilt Pony Rear-Tine Tiller (SN: 121831100101 - 121831199999) Wheel Shaft, Eccentric Shaft & Tiller Shaft Assemblies Parts Diagram

Pony Rear-Tine Tiller

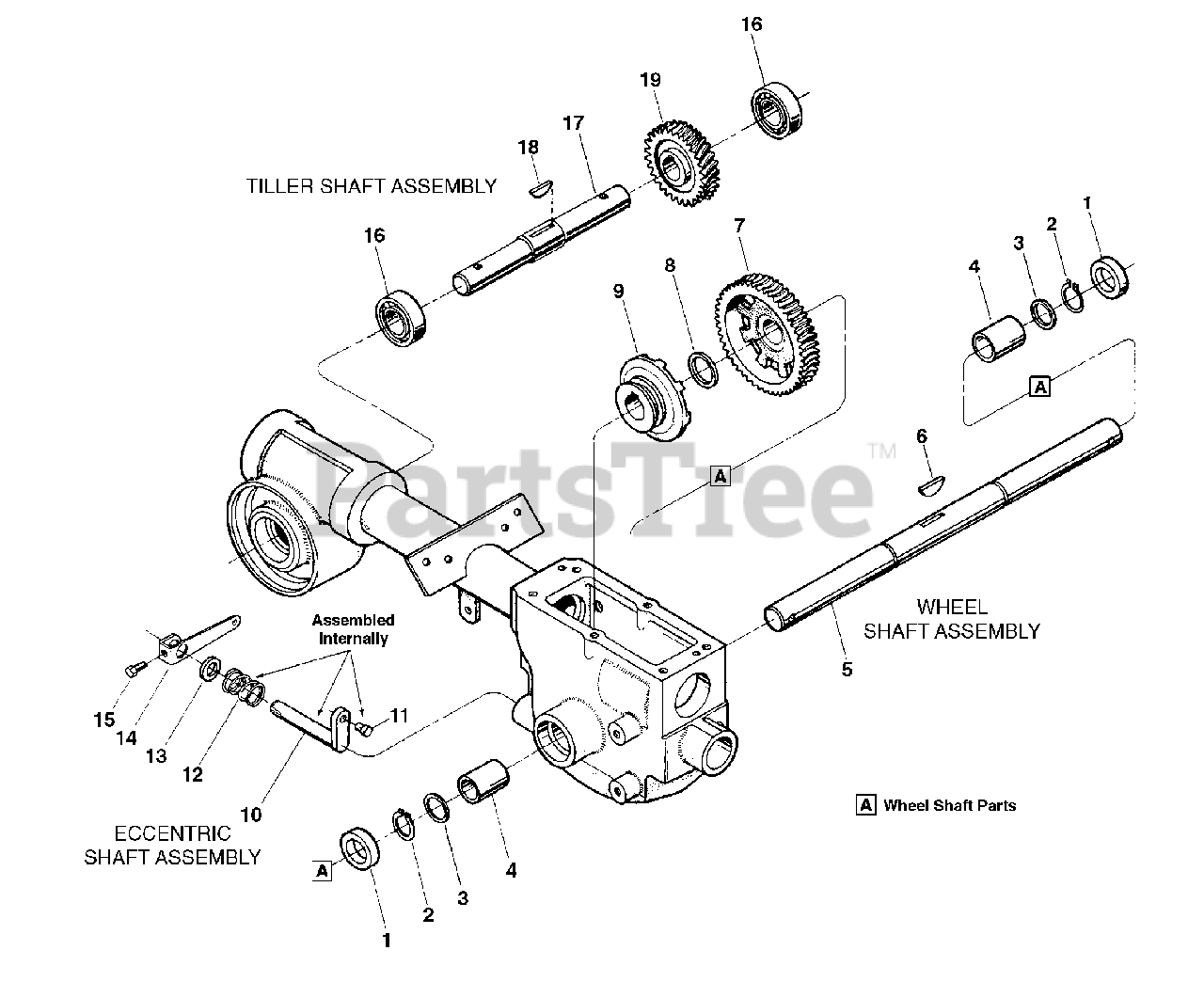

Wheel Shaft, Eccentric Shaft & Tiller Shaft Assemblies Parts Diagram

  • Title

1

Troy-Bilt 9621

Oil Seal
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9511

Ring-retaining, heavy-duty, ext.
(Superseded to 716-04104)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-1

Shim-1-1/64 I.D., .062 thick
(Superseded to 736-04309)

$3.99

$

In Stock, Qty 18

0

Troy-Bilt 1166-2

Shim-as above, but .030 thick
(Superseded to 736-04260)

$6.49

$

In Stock, Qty 20+

0

Troy-Bilt 1166-3

Shim-as above, but .015 thick
(Superseded to 736-04259)

$6.49

$

In Stock, Qty 19

0

Troy-Bilt 1166-4

Shim-as above, but .010 thick
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1086

Bushing
(Superseded to 941-04300)

$15.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 2494

Wheel Shaft (axle)-
(Superseded to 753-05579)

Note: Incl. Ref. No. 6

$

$

Not available

6

Troy-Bilt 9373

Key-hi-pro (1/4 x 1-5/16)
(Superseded to GW-9373)

$9.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 20914

Gear-wheel drive (worm gear)
(Superseded to GW-20914)

$180.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 9935

Shim-1.016 I.D. x 1.468 O.D. x .062 thick
(Superseded to GW-9935)

$3.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 20712

Clutch-wheel drive, cast iron
(Superseded to GW-20712)

$82.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 20879

Eccentric Shaft-wheel clutch
(Superseded to 611-04002)

$75.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 1442

Pin-eccentric shaft
(Superseded to 738-04448)

$7.99

$

In Stock, Qty 10

0

12

Troy-Bilt 9055

Spring
(Superseded to GW-9055)

$6.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 9622

Oil Seal-eccentric shaft
(Superseded to 921-04034)

$9.49

$

In Stock, Qty 20+

0

14

MTD 20757

Lever-eccentric shaft

$

$

Not available

15

Troy-Bilt 11000804

Screw-hex hd., 1/4-20 x 1/2

Note: Specify GRADE 5 if ordering part locally.

$

$

Currently unavailable

16

Troy-Bilt 97074

Ball Bearing-
(Superseded to 941-3037)

Note: For tiller shaft

$38.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 20896

Tiller Shaft-
(Superseded to GW-20896)

Note: Incl. Ref. No. 18

$102.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 1104

Key-woodruff, 1/4 x 1-1/4
(Superseded to GW-1104)

$8.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 20913

Worm Gear-bronze, tiller drive
(Superseded to GW-20913)

$187.99

$

Usually ships in 3-6 days

0

Troy-Bilt 737-04040

Transmission Gear Oil Quart
(Superseded to 490-000-V045)

$19.99

$

In Stock, Qty 7

0

$

$
