12185 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: 121851100101 - 121851199999) Bolo Tines, Wheels Parts Diagram

Econo-Horse Rear-Tine Tiller

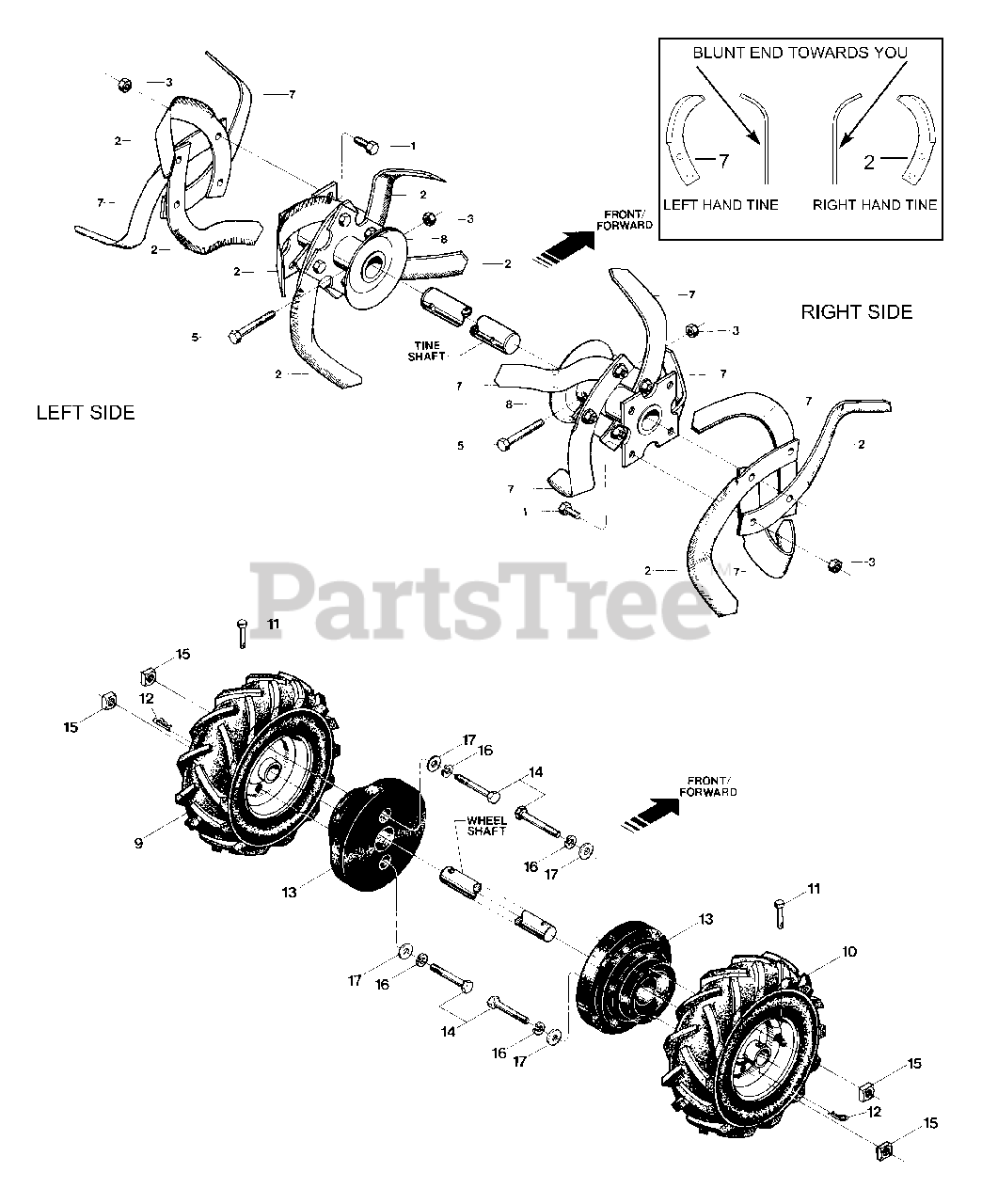

Bolo Tines, Wheels Parts Diagram

  • Title

1

Troy-Bilt 1100043

Screw, hex hd., 3/8-16 x 1- 1/4, Grade 5
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 1270-2A

Bolo Tine, single, right hand
(Superseded to 742-04118-0637)

Note: Used on left and right side tine assemblies. (Incl. two each of Ref. No's.1 and 3)

$

$

Not available

3

Troy-Bilt 1733398

Nut, hex locking, 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 1982612

Screw, hex hd., 3/8-16 x 2, Grade 8
(Superseded to 710-3096)

$7.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1270-1A

Bolo Tine, single, left hand
(Superseded to 742-04119-0637)

Note: Used on left and right side tine assemblies. (Incl. two each of Ref. No's.1 and 3

$

$

Not available

8

MTD 1902153010

Tine Holder

$

$

Not available

Troy-Bilt 1348

Replacement Set of 16 Bolo Tines

Note: Includes eight each of right hand and left hand tines; sixteen each of Ref No's. 1 and 3

$

$

Currently unavailable

9

MTD 2706-01

Wheel and Tire Assembly, left side, 5.0 x 6" tire mounted on 6" grey wheel, tubeless, valve stem, tractor tread

$

$

Not available

10

MTD 2706-02

Wheel and Tire Assembly, right side, 5.0 x 6" tire mounted on 6" grey wheel, tubeless, valve stem, tractor tread

$

$

Not available

11

Troy-Bilt 9380

Clevis Pin, .312 x 1- 3/4
(Superseded to 711-04126)

$3.99

$

In Stock, Qty 15

0

12

Troy-Bilt 9338

Hitch Pin
(Superseded to 714-04048)

$7.49

$

In Stock, only 3 left!

0

13

Troy-Bilt 2731

Wheel weight, 16-1/2 lbs.

$

$

Currently unavailable

14

Troy-Bilt 1111614

Screw, hex hd., 3/8-16 x 3
(Superseded to 710-0521)

$4.99

$

In Stock, Qty 15

0

15

Troy-Bilt 9849

Nut, 3/8-16

$

$

Currently unavailable

16

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 9904

Washer, plain (flat), 3/8
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 10802

Custom Tilling Tine Kit
(Superseded to GW-10802)

Note: Incl. (qty. 8) No. 2475-1 bolo tines, (qty. 8) No. 2475-2 bolo tines, (qty. 16) No. 1100043 bolts, and (qty. 16) No. 1733398 locknuts

$499.99

$

Usually ships in 3-6 days

0

Troy-Bilt 2745-1

Bolo tine, custom tilling, left hand

$

$

Currently unavailable

Troy-Bilt 2475-2

Bolo tine, custom tilling, right hand
(Superseded to GW-2475-2001)

$54.99

$

In Stock, only 1 left!

0
