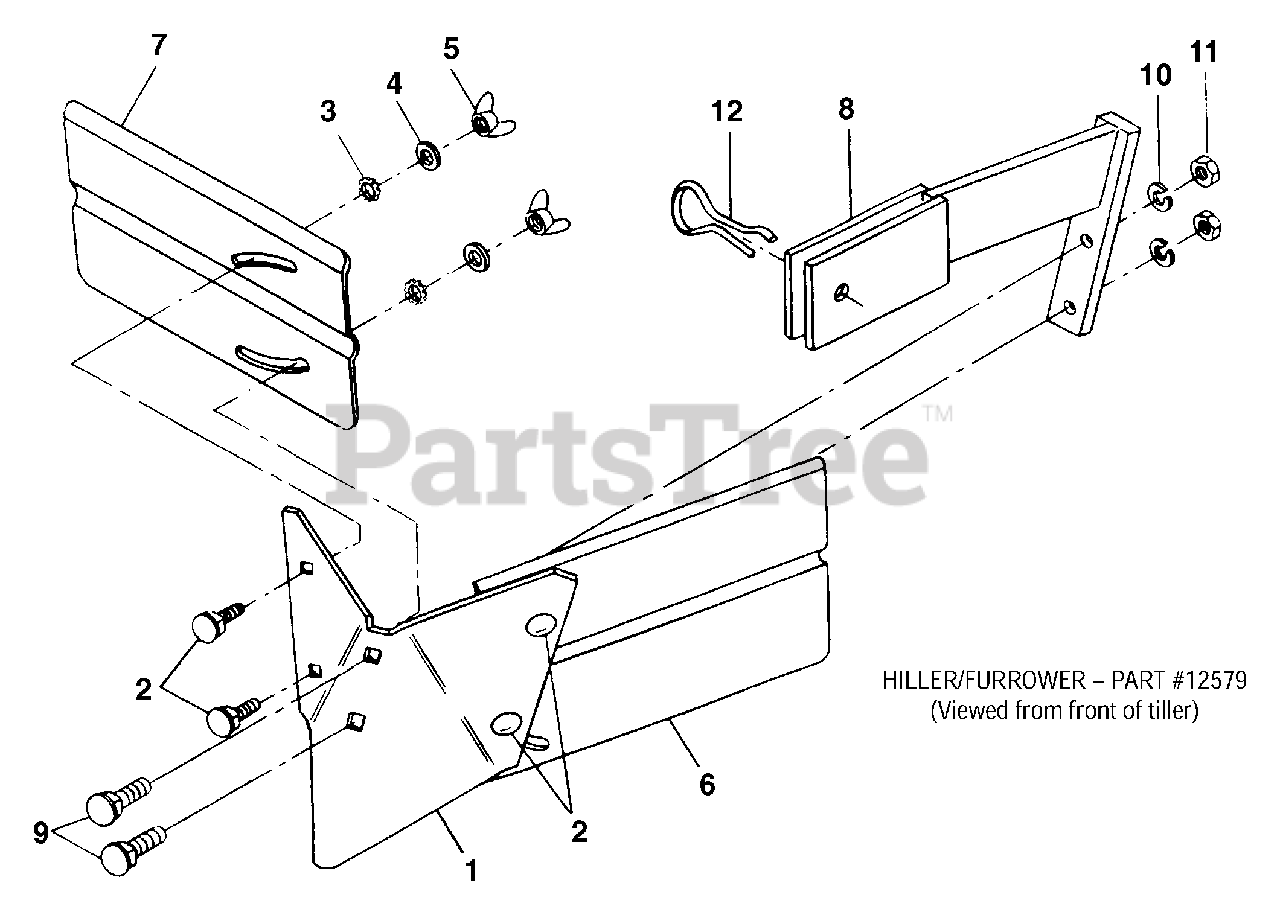

12185 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: 121851100101 - 121851199999) Hiller/Furrower Complete Attachment - PN 12579 Parts Diagram

Econo-Horse Rear-Tine Tiller

Hiller/Furrower Complete Attachment - PN 12579 Parts Diagram

  • Title

1

Troy-Bilt 1900771001

Furrower, blade only

$69.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1186098

Carriage bolt, 5/16-18 x 3/4

$

$

Not available

3

Troy-Bilt 1177548

Star Washer, ext. tooth, 5/16
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 9902

Washer, plain, 5/16 S.A.E.

$

$

Currently unavailable

5

Troy-Bilt 9824

Wing nut, 5/16-18
(Superseded to GW-9824)

$5.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1900773001

Hiller wing, left

$42.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1900774001

Hiller wing, right

$53.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1900772001

Bracket, blade mounting
(Superseded to GW-2636)

$175.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 9725

Carriage bolt, 3/8-16 x 1- 1/2
(Superseded to 710-0431)

$4.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1100243

Lockwasher, 3/8, plated
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 1186231

Nut, hex, 3/8-16, plated
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

12

MTD 9318

Pin, clinch

$

$

Not available

12579

Troy-Bilt 12579

Hiller/Furrower, complete attachment

Note: (Some assembly required - instructions included)

$

$

Currently unavailable
