12194 - Troy-Bilt Horse Rear-Tine Tiller (SN: 121941100101 - 121941199999) Wheel Shaft, Eccentric Shaft And Tiller Shaft Assemblies Parts Diagram

Horse Rear-Tine Tiller

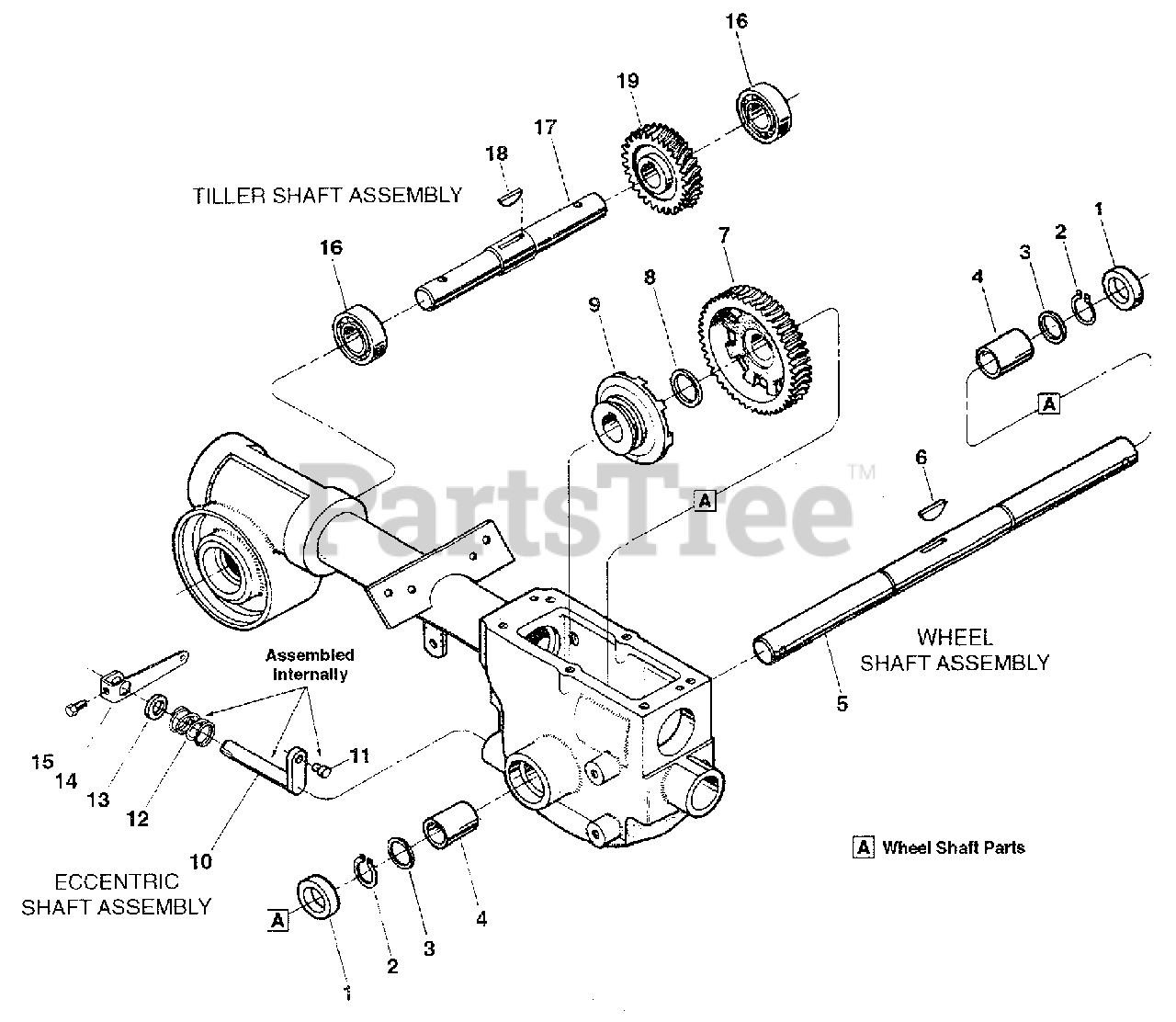

Wheel Shaft, Eccentric Shaft And Tiller Shaft Assemblies Parts Diagram

  • Title

1

Troy-Bilt 9621

Oil Seal-left and right sides
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9511

Ring-retaining, heavy-duty, external
(Superseded to 716-04104)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-1

Shim-1-1/64 I.D., .062 thick
(Superseded to 736-04309)

$3.99

$

In Stock, Qty 18

0

Troy-Bilt 1166-2

Shim-as above, but .030 thick
(Superseded to 736-04260)

$6.49

$

In Stock, Qty 18

0

Troy-Bilt 1166-3

Shim-as above, but .015 thick
(Superseded to 736-04259)

$6.49

$

In Stock, Qty 19

0

Troy-Bilt 1166-4

Shim-as above, but .010 thick
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1086

Bushing
(Superseded to 941-04300)

$15.99

$

In Stock, Qty 20+

0

5

MTD 1916711

Wheel Shaft (axle)

$

$

Not available

6

Troy-Bilt 9373

Key-hi-pro (1/4 x 1-5/16), clutch to wheel shaft
(Superseded to GW-9373)

$9.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 20914

Gear-wheel drive (worm gear), cast iron
(Superseded to GW-20914)

$180.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 9935

Shim-between key and gear (1.016 I.D. x 1.468 O.D. x .062 thick)
(Superseded to GW-9935)

$3.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 20712

Clutch-wheel drive, cast iron
(Superseded to GW-20712)

$82.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-20699

Eccentric Shaft-wheel clutch shifting
(Superseded to 611-04002)

$75.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 1442

Pin-eccentric shaft
(Superseded to 738-04448)

$7.99

$

In Stock, Qty 10

0

12

Troy-Bilt 9055

Spring
(Superseded to GW-9055)

$6.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 9622

Oil Seal-eccentric shaft
(Superseded to 921-04034)

$9.49

$

In Stock, Qty 20+

0

14

MTD 20757

Lever-eccentric shaft

$

$

Not available

15

Troy-Bilt 1100804

Screw-hex hd., 1/4-20 x 1/2
(Superseded to 710-3013)

$4.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 97074

Ball Bearing-for tiller shaft
(Superseded to 941-3037)

$38.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1916709

Tiller Shaft
(Superseded to 911-04130)

$

$

Not available

18

Troy-Bilt 1104

Key-woodruff, 1/4 x 1-1/4, for tiller shaft/worm gear
(Superseded to GW-1104)

$8.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 1904279

Worm Gear-bronze, tiller drive
(Superseded to 917-04383)

$142.99

$

In Stock, only 2 left!

0

Troy-Bilt 737-04040

Transmission Gear Oil
(Superseded to 490-000-V045)

$19.99

$

In Stock, Qty 7

0

$

$

Not available
