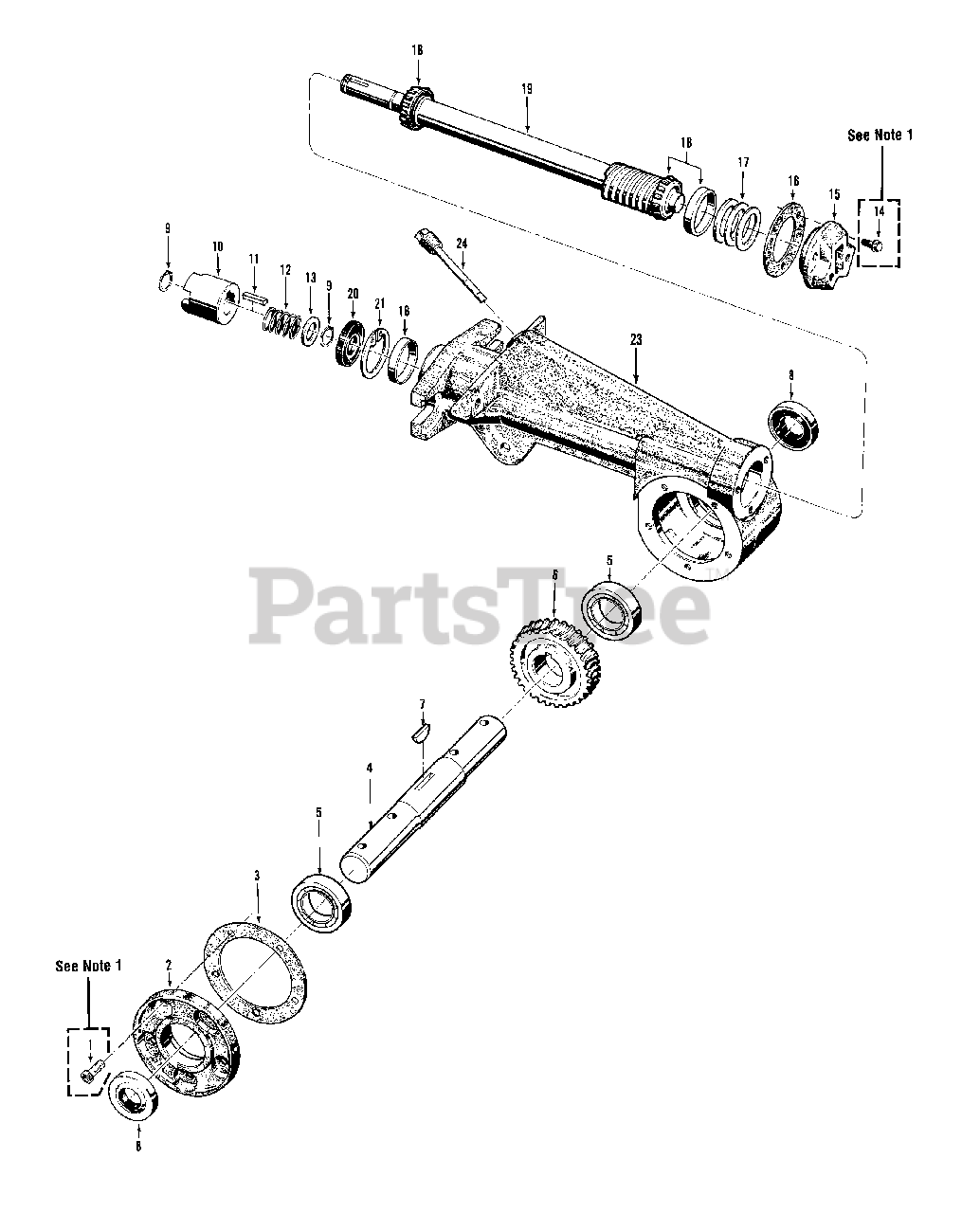

12204 - Troy-Bilt Horse Rear-Tine Tiller, Electric PTO Tiller Attachment Transmission Assemblies Parts Diagram

Horse Rear-Tine Tiller, Electric PTO

Tiller Attachment Transmission Assemblies Parts Diagram

  • Title

1

Troy-Bilt 1915087

Screw Kit

Note: Includes five (5) 1/4"-20 x 5/8" self-sealing screws

$

$

Not available

2

Troy-Bilt 20873

Cover-tiller housing
(Superseded to GW-20873)

$100.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 1129-1

Gasket-tiller housing cover, .010". thick
(Superseded to GW-1129-1099)

$8.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1129-2

Gasket-same as above, .030" thick
(Superseded to GW-1129-2099)

$8.49

$

In Stock, Qty 17

0

4

Troy-Bilt 1901972

Shaft-tiller tine
(Superseded to 911-04082)

$107.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 97074

Ball Bearing
(Superseded to 941-3037)

$38.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1901976

Worm Gear-bronze, tiller tine shaft

$155.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 1104

Key-tiller tine shaft, woodruff key
(Superseded to GW-1104)

$8.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 97073

Seal-oil, tiller tine shaft
(Superseded to 921-04035)

$10.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 9500

Retaining Ring-external
(Superseded to 916-0101)

$3.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 1909138

Dog Clutch-tiller drive shaft
(Superseded to 718-04614)

$29.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 9301

Key-3/16" x 1"
(Superseded to GW-9301099)

$3.49

$

In Stock, Qty 16

0

12

Troy-Bilt 2127

Spring-dog clutch
(Superseded to GW-2127)

$5.49

$

In Stock, Qty 17

0

13

Troy-Bilt 1138-1

Shim-dog clutch, 1/16" (.62") thick
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1915089

Screw Kit

Note: Includes three (3) 1/4"-20 x 7/8" self-sealing screws

$

$

Not available

15

Troy-Bilt 1900881001

Cap-rear bearing
(Superseded to 718-04406)

$46.99

$

In Stock, Qty 5

0

16

Troy-Bilt 1124-2

Gasket-rear bearing cap
(Superseded to GW-1124-2099)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1224-1

Shim-front bearing cap, .010" thick
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1224-2

Shim-same as above, .030" thick
(Superseded to 736-04307)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1224-3

Shim-same as above, .005" thick
(Superseded to 736-04306)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1224-4

Shim-same as above, .062" thick
(Superseded to 736-04305)

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 1714

Bearing & Cup-sold as set only
(Superseded to 941-0107)

$44.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 11602

Shaft-main tiller drive
(Superseded to GW-11602)

Note: (Incl. an integral worm gear

$281.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 9617

Seal-oil, drive shaft, front
(Superseded to 921-04030)

$11.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 9517

Retaining Ring-internal
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1902000

Housing-tiller attachment

Note: (Incl. pressed-on sleeve in front of housing).

$296.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 1909157

Dipstick-oil, tiller attachment

$17.99

$

In Stock, only 3 left!

0

$

$
