12211 (21A-531-081) - Troy-Bilt Pony Rear-Tine Tiller Bolo Tines, Wheels Parts Diagram

Pony Rear-Tine Tiller

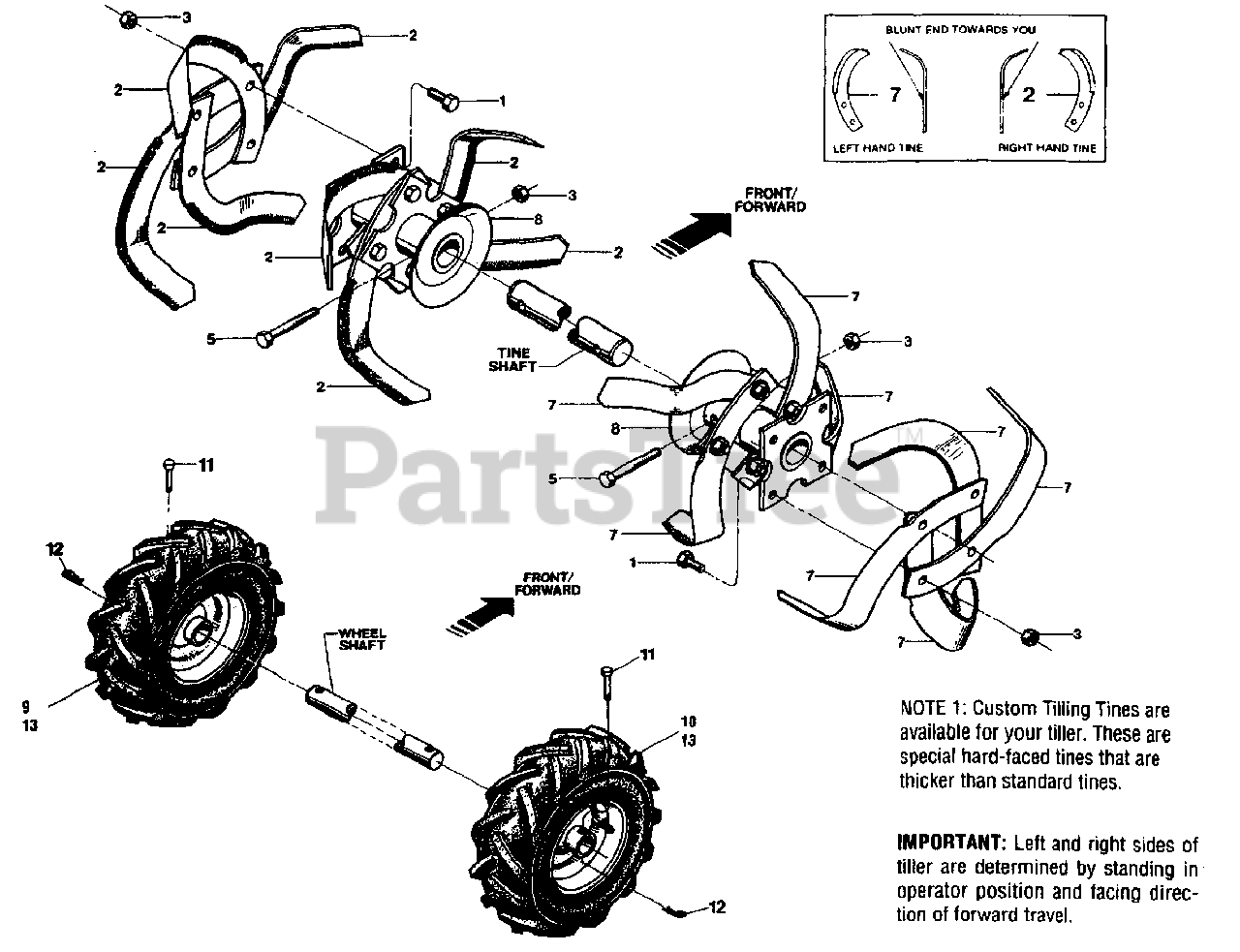

Bolo Tines, Wheels Parts Diagram

  • Title

1

Troy-Bilt 1100043

Hex Hd. Screw, 3/8-16 x 1-1/4
(Superseded to 710-3005)

Note: Specify GRADE 5 if ordering part locally.

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 1270-2A

Bolo Tine-single.
(Superseded to 742-04118-0637)

Note: Right hand tine used on left side of tiller.(Incl. two ea. Refs. 1 and 3)

$

$

Not available

3

Troy-Bilt 1733398

Hex Locknut, 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 1982612

Hex Hd. Screw, 3/8-16 x 2, Grade 8
(Superseded to 710-3096)

$7.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1270-1A

Bolo Tine-single.
(Superseded to 742-04119-0637)

Note: Left hand tine used on right side of tiller.(Incl. two ea. Refs. 1 and 3)

$

$

Not available

8

Troy-Bilt 1902154010

Tine Holder.
(Superseded to 686-04067-0638)

Note: For left and right sides

$94.99

$

In Stock, only 2 left!

0

Troy-Bilt 1901118

Bolo Tine Replacement Set
(Superseded to 1901118A)

Note: (Incl. eight ea. right hand and left hand tines, and sixteen ea. Refs. 1 and 3)

$

$

Not available

Troy-Bilt 2475-1

Custom Tilling Bolo Tine, Left hand tine
(Superseded to GW-2475-1001)

Note: Custom Tilling tines are available for your tiller. These are spaecial hard-faced tines that are thicker than standard tines.

$54.99

$

In Stock, only 2 left!

0

Troy-Bilt 2475-2

Custom Tilling Bolo Tine, Right hand tine
(Superseded to GW-2475-2001)

Note: Custom Tilling tines are available for your tiller. These are spaecial hard-faced tines that are thicker than standard tines.

$54.99

$

In Stock, only 1 left!

0

Troy-Bilt 10802

Custom Tilling Bolo Tine Replacement Set
(Superseded to GW-10802)

Note: (Incl. eight ea. right hand and left hand custom tines, and sixteen each of Refs. 1 and 3)

$499.99

$

Usually ships in 3-6 days

0

9

MTD 2706-01

Wheel and Tire Assy., left side, 4.10 x 6 tire on 6" wheel

Note: For Model 12211 - S/N 122111100101-122111199999

$

$

Not available

10

MTD 2706-02

Wheel & Tire Assy., right side, 4.10 x 6 tire on 6" wheel

Note: For Model 12211 - S/N 122111100101-122111199999

$

$

Not available

11

Troy-Bilt 9380

Clevis Pin, .312 x 1-3/4
(Superseded to 711-04126)

$3.99

$

In Stock, Qty 15

0

12

Troy-Bilt 9338

Hitch Pin
(Superseded to 714-04048)

$7.49

$

In Stock, only 3 left!

0

13

MTD 1917487

Wheel and Tire Assembly
(Superseded to 634-04202-0911)

Note: For Model 12211 - S/N 122111200101-122111299999

$

$

Not available
