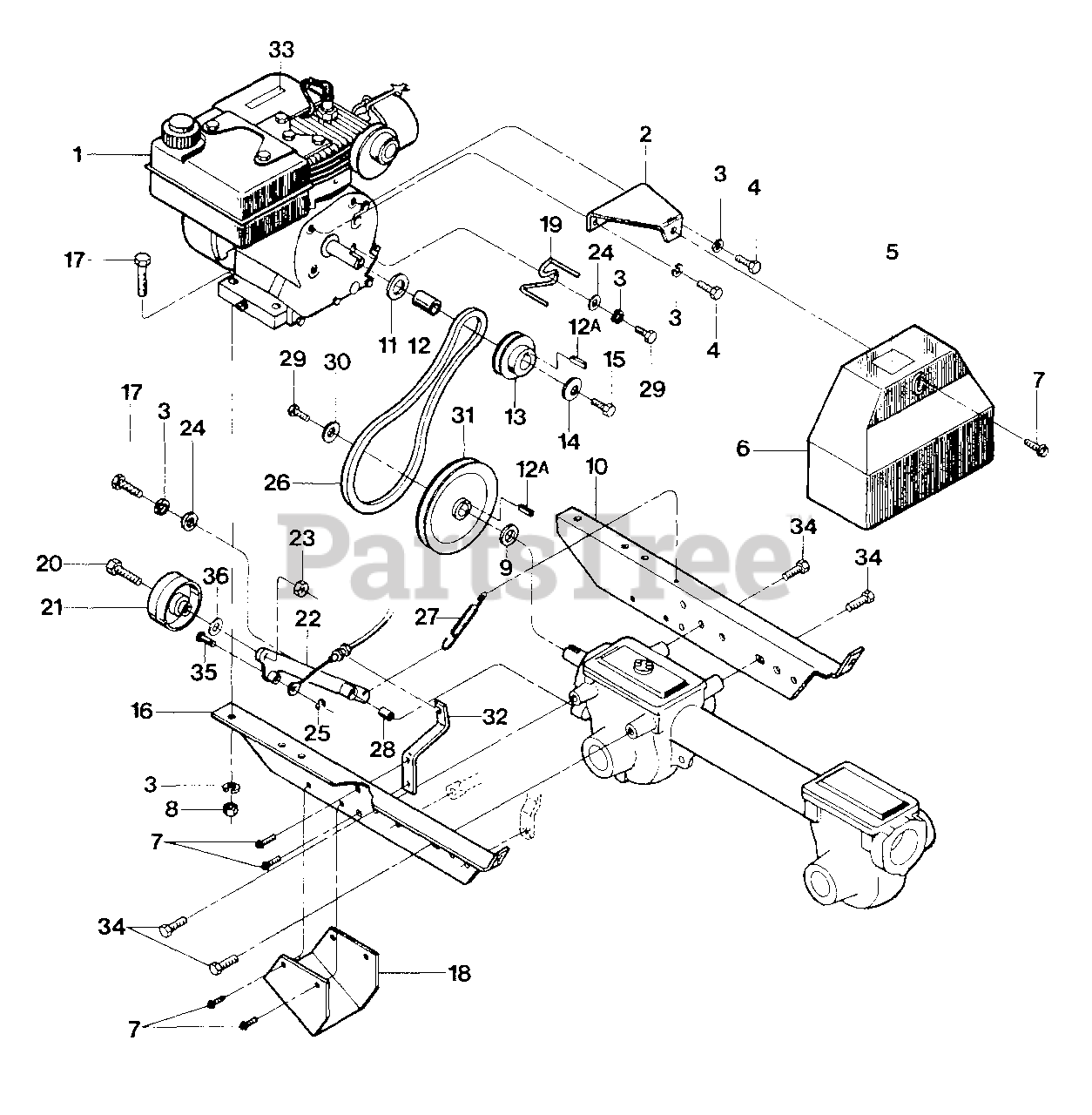

12217 (21A-511-081) - Troy-Bilt Tuffy Rear-Tine Tiller Engine, Engine Brackets And Belt Drive System Parts Diagram

Tuffy Rear-Tine Tiller

Engine, Engine Brackets And Belt Drive System Parts Diagram

  • Title

1

Engine, Recoil Start

Note: Contact your local authorized engine service dealer for engine parts and service. Refer to your engine nameplate for engine model/type number.

$

$

Not available

2

Troy-Bilt 1916112001

Bracket, Belt Cover

$

$

Not available

3

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

MTD 1111696

Hex Hd. Screw, 5/16-24 x 1/2

$

$

Not available

5

MTD 1904549

Decal, Hot Surfaces Warning

$

$

Not available

6

Troy-Bilt 1904573

Belt Cover

Note: (Incl. Ref. 5)

$

$

Currently unavailable

7

Troy-Bilt 9552

Flange Screw, Self-Tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 50027

Support Washer
(Superseded to GW-50027)

$6.49

$

In Stock, Qty 10

0

10

Troy-Bilt 1916795001

Engine Bracket, Right
(Superseded to 786-04069)

$

$

Not available

11

Troy-Bilt 1138-2

Shim
(Superseded to 736-04192)

Note: As Required

$6.49

$

In Stock, only 3 left!

0

12

MTD 55036

Spacer

$

$

Not available

12A

Troy-Bilt 9301

Key, 3/16 x 1
(Superseded to GW-9301099)

$3.49

$

In Stock, Qty 17

0

13

Troy-Bilt 55035

Pulley, Engine Drive
(Superseded to GW-55035)

$

$

Not available

14

MTD 9925

Belleville Washer

$

$

Not available

15

Troy-Bilt 1100009

Hex Hd. Screw, 3/8-24 x 1, Grade 5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

16

MTD 1916794001

Engine Bracket, Left

$

$

Not available

17

Troy-Bilt 1100799

Hex Hd. Screw, 5/16-18 x 1-1/2, Grade 5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

18

Troy-Bilt 1916652001

Guard, Belt/Pulley
(Superseded to 786-04095-0637)

$31.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 55039

Belt Guide
(Superseded to GW-55039)

$

$

Not available

20

MTD 9558

Hex Hd. Screw, 3/8-16 x 1-1/2

$

$

Not available

21

Troy-Bilt 9090

Idler Pulley
(Superseded to 756-04170)

$33.99

$

In Stock, Qty 10

0

22

MTD 1916116001

Idler Lever

$

$

Not available

23

Troy-Bilt 1110108

Locknut, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

24

Troy-Bilt 1107382

Flat Washer
(Superseded to 936-0275)

$

$

Not available

25

MTD 9386

Klip Ring

$

$

Not available

26

Troy-Bilt 55037

V-Belt
(Superseded to 954-04089)

$25.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 55034

Return Spring
(Superseded to 732-04085)

$13.99

$

In Stock, Qty 6

0

28

MTD 55033

Bushing, Idler Lever

$

$

Not available

29

Troy-Bilt 1100004

Hex Hd. Screw, 5/16-24 x 3/4, Grade 5
(Superseded to 710-0157)

$3.99

$

In Stock, Qty 16

0

30

Troy-Bilt 9944

Belleville Washer, Belleville
(Superseded to 736-04193)

$6.49

$

In Stock, Qty 9

0

31

MTD 55031

Transmission Pulley
(Superseded to 656-04017)

$

$

Not available

32

MTD 1916117001

Bracket, Cable Mount

$

$

Not available

33

MTD 1900766

Decal, Stabilization

$

$

Not available

34

Troy-Bilt 1186328

Hex Hd. Screw, 5/16-18 x 5/8
(Superseded to 710-04049)

$4.49

$

In Stock, Qty 14

0

35

MTD 9856

Clevis Pin

$

$

Not available

36

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

$

$
