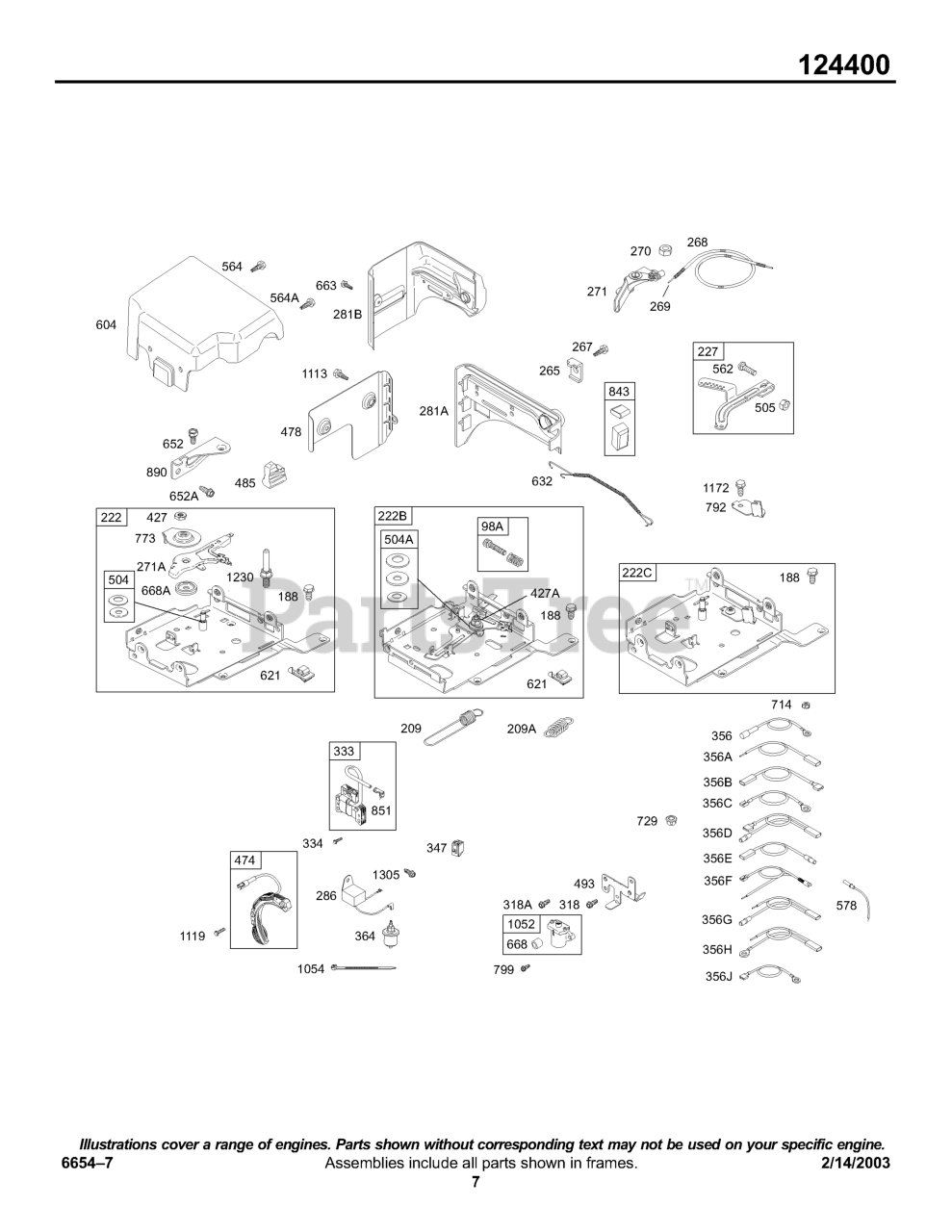

124432-0116-E1 - Briggs & Stratton Horizontal Engine Controls, Governor Springs, Ignition Parts Diagram

Horizontal Engine

Controls, Governor Springs, Ignition Parts Diagram

  • Title

209A

Briggs & Stratton 691278

Spring-Governor

$7.99

$

In Stock, only 4 left!

0

209

Briggs & Stratton 692571

Spring-Governor

Note: (Silver)

$7.49

$

In Stock, only 4 left!

0

222C

Briggs & Stratton 696288

Bracket-Control
(Superseded to 793100)

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 692573

Lever-Governor Control
(Superseded to 794367)

$16.99

$

In Stock, Qty 6

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 692577

Screw

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (72" Long)(Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (78" Long)(Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 695711

Armature-Magneto
(Superseded to 796964)

$55.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 17

0

347

Briggs & Stratton 692599

Switch-Rocker
(Superseded to 795333)

Note: (2 Tines, ON/OFF Marking, 2 Position, Non-Lighted)

$13.99

$

In Stock, only 1 left!

0

356B

Briggs & Stratton 692602

Wire-Stop

Note: (1 Wire, 14" Long)(Snap Connect Insulated Female Blade Terminal, AndInsulated Push-On Female Blade Terminal)

$11.99

$

Usually ships in 2-12 days

0

356C

Briggs & Stratton 695630

WIRE, Stop

Note: (1 Wire, 6-1/2" Long)(Push-On Insulated Female Blade Terminal, And RingTerminal)

$7.99

$

Usually ships in 2-12 days

0

356A

Briggs & Stratton 692390

Wire-Stop

Note: (1 Wire, 17" Long)(Snap Connect Insulated Female Blade Terminal, AndBare Wire End)

$10.99

$

Usually ships in 2-12 days

0

427

Briggs & Stratton 694255

Nut

Note: (Control Bracket)

$3.49

$

Usually ships in 2-12 days

0

504

Briggs & Stratton 694254

Washer Set-Friction
(Superseded to 695383)

$10.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 10

0

562

Briggs & Stratton 691112

Bolt

Note: (Governor Control Lever)

$

$

Not available

632

Briggs & Stratton 693408

Spring/Link-Mechanical Governor

$8.99

$

In Stock, Qty 10

0

652A

Briggs & Stratton 695629

SCREW

Note: (Support Bracket)

$3.49

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 691108

SCREW

Note: (Support Bracket)

$3.49

$

In Stock, Qty 20+

0

663

Briggs & Stratton 694593

Screw
(Superseded to 691693)

Note: (Control Panel)

$3.99

$

In Stock, only 2 left!

0

668A

Briggs & Stratton 694257

Spacer

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

890

Briggs & Stratton 694933

Bracket-Support
(Superseded to 790203)

$5.99

$

Usually ships in 2-12 days

0

1052

Briggs & Stratton 696954

Sensor-Oil
(Superseded to 790141)

$61.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0
