124432-0116-E1 - Briggs & Stratton Horizontal Engine Fuel Tank Group Parts Diagram

Horizontal Engine

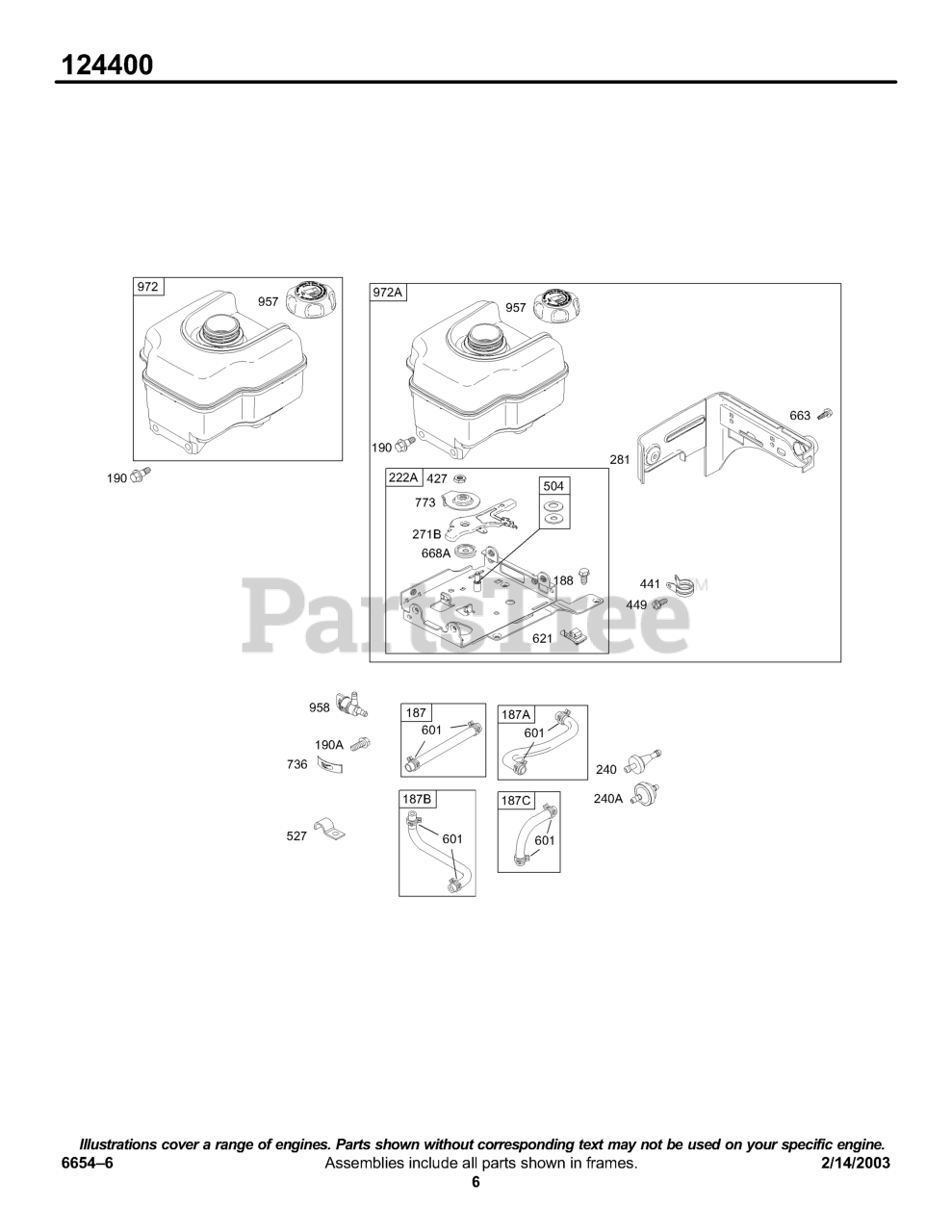

Fuel Tank Group Parts Diagram

  • Title

187B

Briggs & Stratton 693401

Line-Fuel
(Superseded to 791874)

Note: (Molded)

$16.99

$

In Stock, Qty 6

0

187C

Briggs & Stratton 694486

Line-Fuel
(Superseded to 791866)

Note: (Molded)

$24.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 691050

Line-Fuel
(Superseded to 791766)

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 690877

Screw

Note: (Control Bracket)

$3.99

$

In Stock, Qty 5

0

190

Briggs & Stratton 692127

Screw

Note: (Fuel Tank)

$6.49

$

In Stock, only 2 left!

0

222A

Briggs & Stratton 694253

Bracket-Control
(Superseded to 793107)

$45.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 694485

Filter-Fuel
(Superseded to 595824)

$15.99

$

Usually ships in 2-12 days

0

271B

Briggs & Stratton 694256

Lever-Control

Note: (Control Bracket)

$19.99

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 694252

Panel-Control
(Superseded to 793122)

$35.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

773

Briggs & Stratton 694258

Retainer

Note: (Control Bracket)

$4.49

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 694261

Cap-Fuel Tank
(Superseded to 792647)

Note: (Plastic)

$10.99

$

In Stock, Qty 8

0

958

Briggs & Stratton 692586

Valve-Fuel Shut Off
(Superseded to 698180)

Note: (Plastic)

$11.99

$

In Stock, Qty 6

0

972

Briggs & Stratton 694260

Tank-Fuel
(Superseded to 799863)

Note: (Plastic)

$89.99

$

In Stock, Qty 18

0
