12596 - Troy-Bilt Bumper Bumper Guard Attachment 12596 Parts Diagram

Bumper

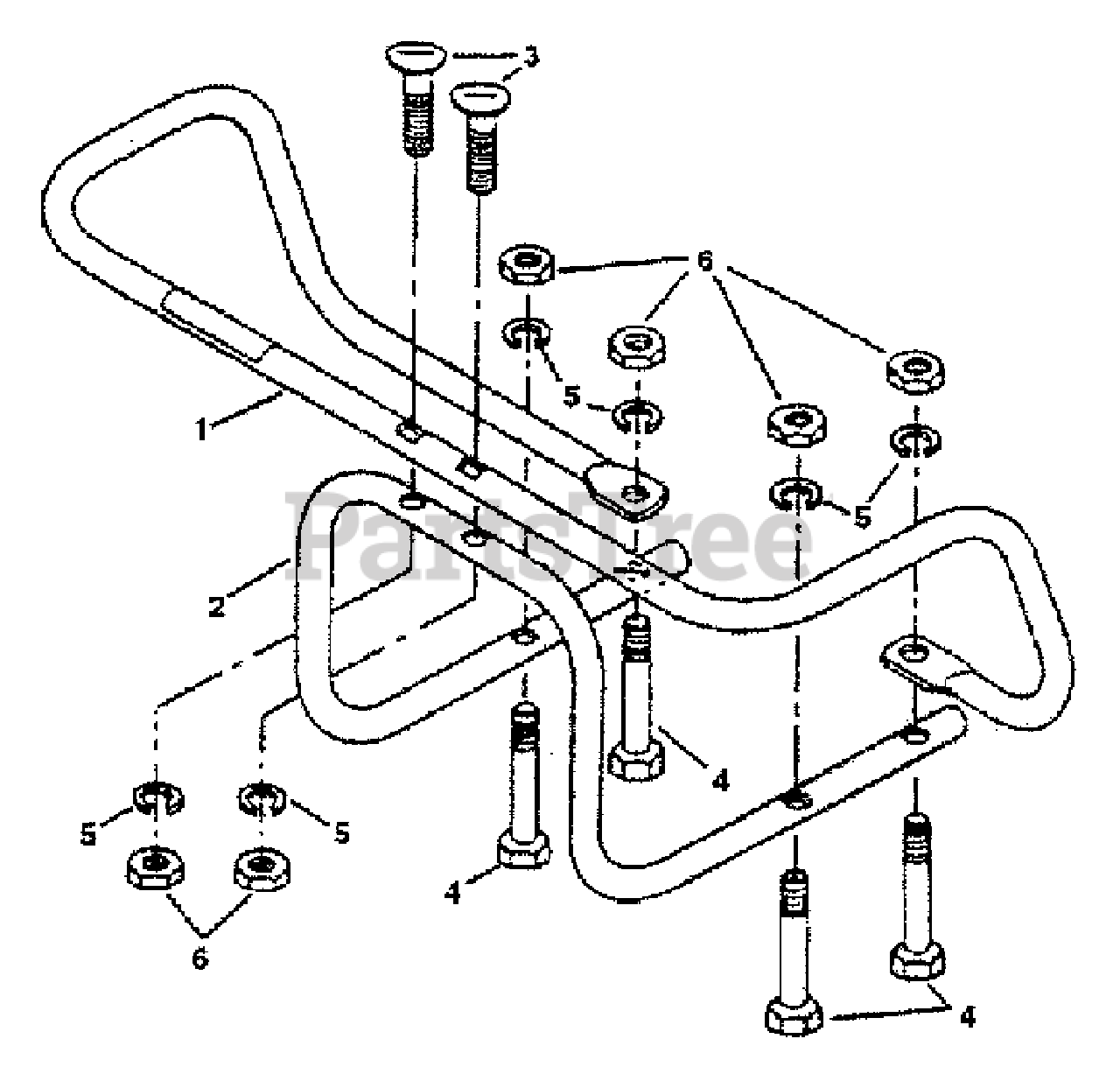

Bumper Guard Attachment 12596 Parts Diagram

  • Title

1

MTD 1916714001

Bumper, Top Section

$

$

Not available

2

Troy-Bilt 1904758001

Bumper, Bottom Section
(Superseded to 749-04193-0637)

$50.99

$

In Stock, Qty 7

0

3

Troy-Bilt 1731025

Curved Hd. Screw, 5/16-18 x 2 (special)
(Superseded to 710-1174)

Note: Also see Hardware Kit #1915811

$6.99

$

In Stock, Qty 20+

0

4

MTD 1111608

Hex Screw, 5/16-18 x 2-1/2, Grade 5

Note: Not available separately, order Hardware Kit #1915811

$

$

Not available

5

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

Note: Not available separately, order Hardware Kit #1915811

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

Note: Not available separately, order Hardware Kit #1915811

$4.49

$

In Stock, Qty 20+

0

MTD 1915811

Hardware Kit

Note: Includes two #1731025, four #1111608, six #1100242 and six #1186230

$

$

Not available

Troy-Bilt 12596

Bumper Guard Attachment Kit

Note: For use with the model 12185, 7HP Econo-Horse only. It contains the same parts as Kit No. 12593, with the exception of the Top Bumper.

$

$

Currently unavailable
