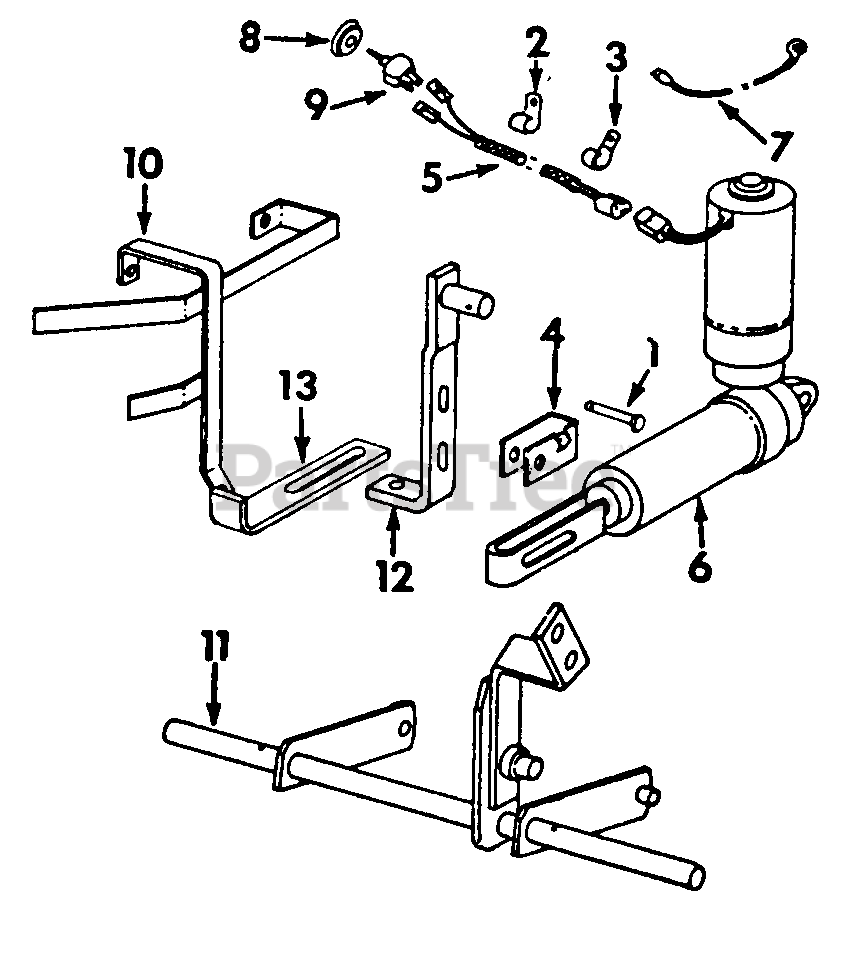

127 (2050040U) - Cub Cadet Garden Tractor Electric Lift & Related Parts Parts Diagram

Garden Tractor

Electric Lift & Related Parts Parts Diagram

  • Title

1

Cub Cadet BR-H-200P

Pin, 1/2 X 1/2 C-Z Headed

$

$

Currently unavailable

Cub Cadet 736-0272

Washer, 17/32 X 1 X 11 Ga C-Z

$4.49

$

In Stock, Qty 20+

0

Pin, 3/16 X 1 C-Z Cot

Note: Common Hardware Purchase Locally

$

$

Not available

2

Cub Cadet 726-3023

Clip, Cable Harness

$

$

Currently unavailable

Screw, 1/4-20 X 3/8 Znd Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-117963

Grommet

$

$

Currently unavailable

3

~NLA

Clip, Cable

$

$

Not available

4

~NLA

Clip, Locking

$

$

Not available

5

Cub Cadet IH-529936-R2

Harness Assy, Cable

$

$

Currently unavailable

6

Cub Cadet IH-529494-R94

Electric Lift Assy

Note: (For components see list of parts under details of electric lift assy)

$

$

Currently unavailable

7

~NLA

Cable Assy, Ground

$

$

Not available

8

~NLA

Washer, Actuator Switch

$

$

Not available

9

Cub Cadet IH-529933-R91

Switch Assy, Actuator

$

$

Not available

Cub Cadet IH-178374-R1

Washer, 17/32 X 1-1/8 X 1 Ga C-Z

$

$

Not available

10

~NLA

Guard Assy, Foot

$

$

Not available

Cub Cadet 736-0169

Washer, 3/8 Znd Med Lock

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 710-3000

Screw, 3/8-16 X 3/4 Znd Hex Hd Cap
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

11

~NLA

Rockshaft Assy, Electric Lift

$

$

Not available

Cub Cadet IH-131017

Washer, 13/16 X 1-1/2 X .134 C-Z

$

$

Currently unavailable

~NLA

Pin, 3/32 x 1-1/4 Cot

$

$

Not available

12

~NLA

Bracket Assy, Lift Mounting

$

$

Not available

Screw, 3/8-16 X 1-1/8 Znd Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 736-0140

Washer, 13/32 X 13/16 X 14 Ga C-Z

$6.99

$

In Stock, Qty 9

0

Cub Cadet IH-131017

Washer, 13/16 X 1-1/2 X 10 Ga C-Z

$

$

Currently unavailable

Cub Cadet 714-0142

Pin, 3/16 X 1-1/4 Cot

$6.49

$

In Stock, only 1 left!

0

13

~NLA

Stop, Lift Arm

$

$

Not available
