127 (2050040U) - Cub Cadet Garden Tractor Fenders Parts Diagram

Garden Tractor

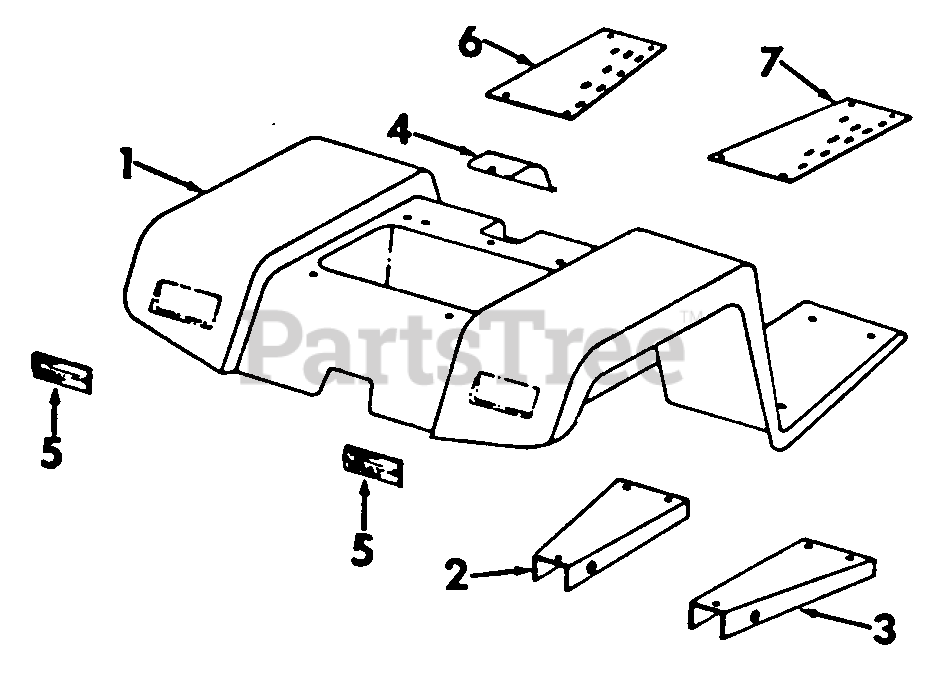

Fenders Parts Diagram

  • Title

1

~NLA

Fender Assy

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 Znd Hex Hd Cap

$

$

Not available

Cub Cadet 736-3004

Washer, 13/32 X 7/8 X 11 Ga C-Z

$4.49

$

In Stock, Qty 19

0

Cub Cadet IH-528907-R1

Bumper, Seat Support

$

$

Currently unavailable

2

~NLA

Channel Assy, Foot Support LH

$

$

Not available

3

~NLA

Channel Assy, Foot Support RH

$

$

Not available

4

Cub Cadet 703-0067

Cover, Hydrostatic Center

$

$

Not available

Screw, 3/8-16 X 1/2 Znd Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

5

Cub Cadet 730-3000

Reflector
(Superseded to 930-3000)

$16.99

$

In Stock, only 3 left!

0

Screw, 8-32 X 1/2 Pan Hd Cross Recess Mach

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 712-0142

Nut, 8-32 Hex

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-121841

Washer, No. 8 Med Lock

$

$

Not available

6

~NLA

Tread, Platform LH

$

$

Not available

Cub Cadet 710-3055

Screw, 5/16-18 X 5/8 C-Z Slt Truss Hd Mach

$

$

Not available

Cub Cadet 736-0119

Washer, 5/16 Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16-18 Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

~NLA

Tread, Platform RH

$

$

Not available

Cub Cadet 710-3055

Screw, 5/16-18 X 5/8 C-Z Slt Truss Hd Mach

$

$

Not available

Cub Cadet 736-0119

Washer, 5/16 Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16-18 Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
