129 R (967193301) - Husqvarna Brush Cutter SHAFT & HANDLE Parts Diagram

Brush Cutter

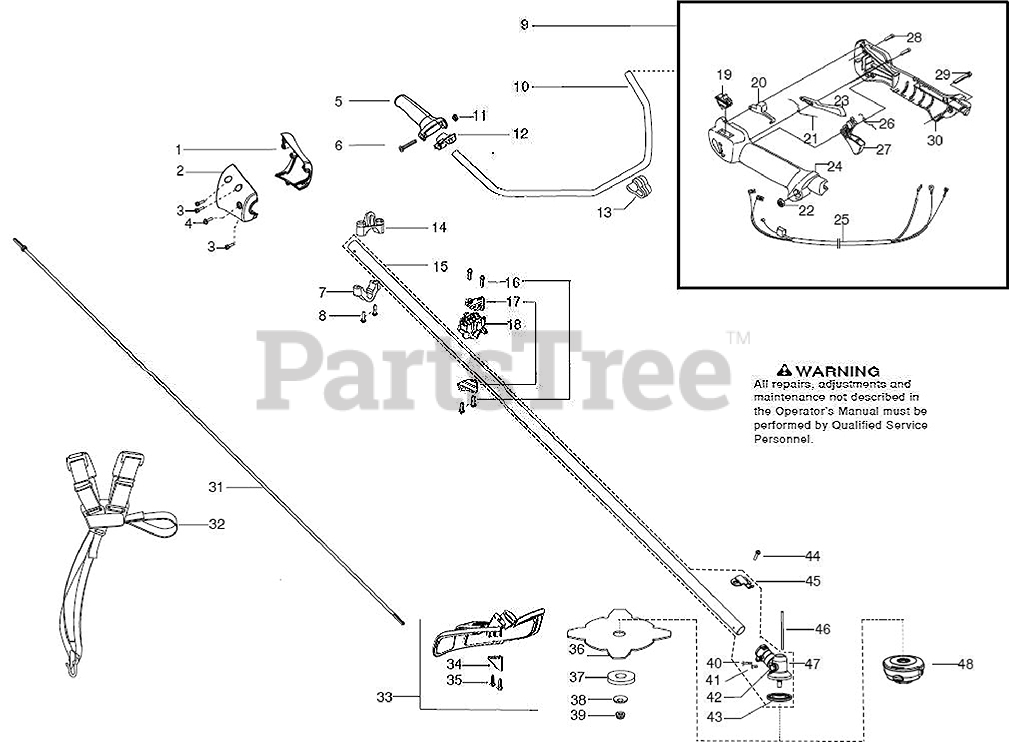

SHAFT & HANDLE Parts Diagram

  • Title

36

Husqvarna 504001303

Blade - Grass
(Superseded to 596278001)

$36.99

$

Usually ships in 3-10 days

0

29

Husqvarna 503200735

SCREW
(Superseded to 503200782)

$6.99

$

In Stock, only 3 left!

0

31

Husqvarna 545007507

FLEXSHAFT 57"

$34.99

$

In Stock, only 1 left!

0

37

Husqvarna 503890101

SUPPORTING CUP

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574810301

CONE

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 502211201

GROMMET

$7.49

$

In Stock, only 2 left!

0

15

Husqvarna 580446621

KIT DRIVESHAFT SS BLADE

$133.99

$

Usually ships in 3-10 days

0

44

Husqvarna 584410101

SCREW 1/4-20

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 506495101

THROTTLE LOCKOUT

$3.49

$

In Stock, only 1 left!

0

32

Husqvarna 537216301

HARNESS DUO

$

$

Not available

30

Husqvarna 537160302

HANDLE

$31.99

$

Usually ships in 3-10 days

0

20

Husqvarna 537160703

STARTER THROTTLE LOCK

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574444001

SCREW

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 502285901

LOCKING PIN

$8.99

$

In Stock, only 1 left!

0

34

Husqvarna 530052286

Limiter - Line

$

$

Not available

8

Husqvarna 530015940

SCREW

$6.49

$

In Stock, Qty 9

0

18

Husqvarna 545058501

CLAMP

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 530058563

CLAMP BRACKET

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 537174301

SPRING

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

25

Husqvarna 580294301

CABLE ASSY

$26.99

$

In Stock, only 1 left!

0

14

Husqvarna 545113301

CLAMP HARNESS UPPER

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 537234901

DRIVE DISC

$40.99

$

In Stock, only 2 left!

0

48

Husqvarna 537338306

T25 TRIM HEAD 10MM LH
(Superseded to 537338310)

$30.99

$

In Stock, Qty 20+

0

Husqvarna 530031159

HEX WRENCH 5/32

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 537160209

HANDLE HALF LEFT

$28.99

$

Usually ships in 3-10 days

0

41

Husqvarna 584410601

SCREW 8-32 X 16.51 TT SC TRX

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 503200245

SCREW

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 584410001

SCREW 10-14X3/4 PLASTITE

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 537172901

BRACKET

$7.99

$

In Stock, only 1 left!

0

39

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, Qty 5

0

4

Husqvarna 584294001

SCREW

$4.99

$

In Stock, Qty 10

0

22

Husqvarna 503221013

NUT

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 506495001

THROTTLE CONTROL

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 545125505

ASSY THROTTLE HSG

$121.99

$

Usually ships in 3-10 days

0

38

Husqvarna 537285601

SUPPORT FLANGE

$15.99

$

In Stock, only 4 left!

0

5

Husqvarna 537172802

HANDLE

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 580446606

KIT STRAIGHT SHIELD

$18.99

$

Usually ships in 3-10 days

0

47

Husqvarna 530096295

ASSY GEARBOX

$80.99

$

In Stock, Qty 10

0

40

Husqvarna 584410501

SCREW 8-32 X 16.51

$3.99

$

In Stock, only 2 left!

0

42

Husqvarna 575724601

PLUG GREASE 9MM

$4.99

$

In Stock, only 2 left!

0

Husqvarna 587344201

GUARD TRANSPORT

$3.49

$

Usually ships in 3-10 days

0

45

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

$6.49

$

In Stock, Qty 11

0

7

Husqvarna 545056601

CLAMP HARNESS LOWER

$4.99

$

In Stock, only 4 left!

0

1

Husqvarna 574810701

NOSE CONE B/H LH HVA 25.4MM

$2.49

$

Usually ships in 3-10 days

0

19

Husqvarna 537419001

STOP BUTTON

$8.99

$

In Stock, Qty 20+

0

35

Husqvarna 584410001

SCREW 10-14X3/4 PLASTITE

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 502199504

HANDLE BAR

$21.99

$

Usually ships in 3-10 days

0

28

Husqvarna 574444001

SCREW

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 537174201

SPRING

$6.49

$

In Stock, Qty 15

0
