12A-446L163 - Bolens Walk-Behind Mower (2003) General Assembly Parts Diagram

Walk-Behind Mower

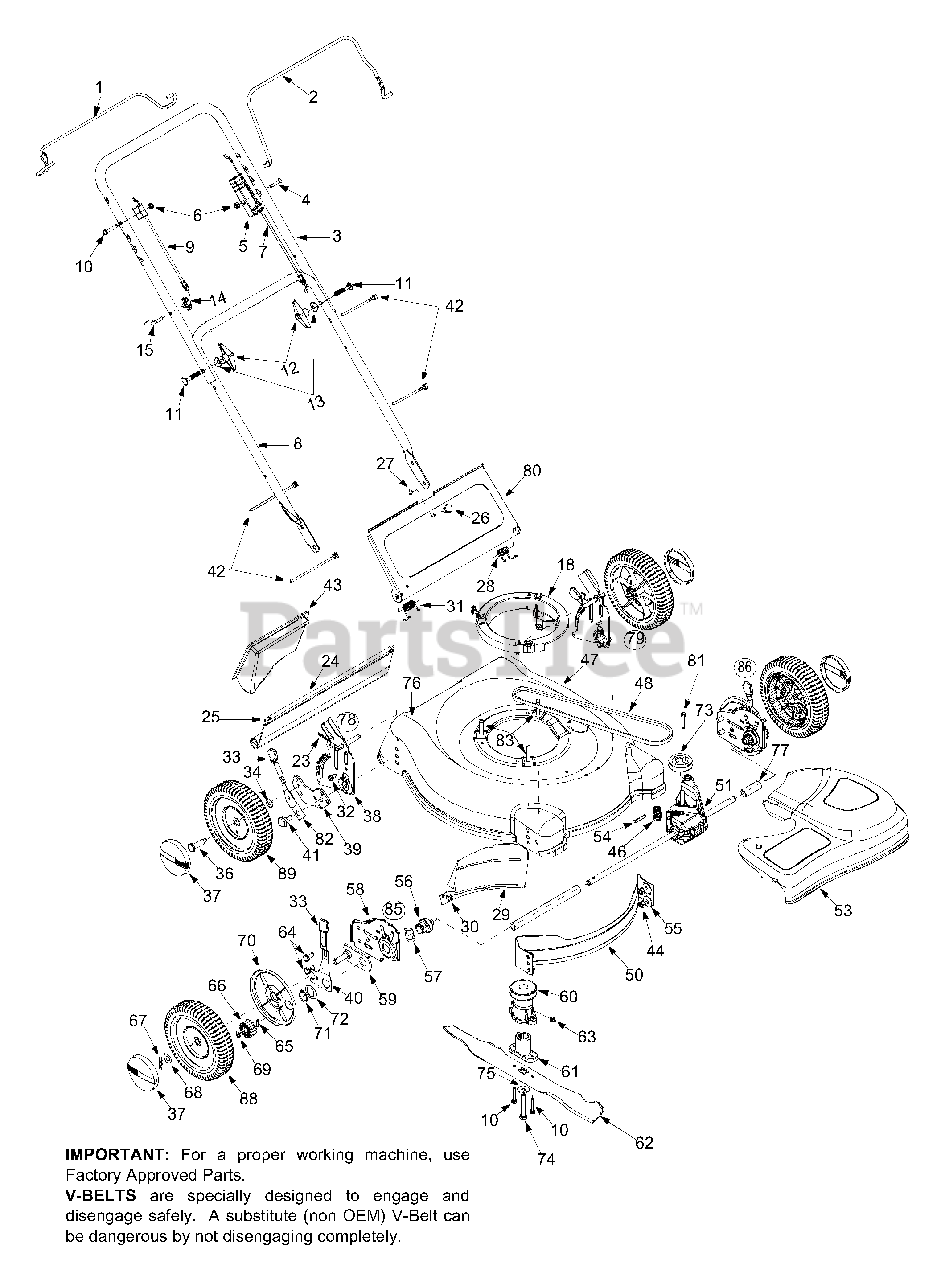

General Assembly Parts Diagram

  • Title
1

MTD 747-2136

Lower Bail Handle
(Superseded to 747-2136-0637)

Variations

MTD 747-2136-0637

BAIL-DRIVE 21" UND - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

2

MTD 747-0824

Blade Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

3

MTD 749-1501

Upper Handle

Variations

MTD 749-1501-0637

HANDLE-UPPER LONG - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 710-1270

Oval C-Sunk Scr. 1/4-20 x 1.31"

$4.49

$

Usually ships in 3-6 days

0

5

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 4 left!

0

6

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 17

0

7

MTD 746-0551

Control Cable: 43"
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

8

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

9

MTD 746-04026

Drive Cable
(Superseded to 946-04026)

$53.99

$

In Stock, Qty 7

0

10

MTD 710-0606

Hex Screw 1/4-20 x 1.5"

$5.49

$

In Stock, Qty 9

0

11

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

12

MTD 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

13

MTD 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

14

MTD 720-0279

Wing Nut

$4.49

$

In Stock, only 2 left!

0

15

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 4 left!

0

18

MTD 631-0075B

Engine Spacer Assembly

$

$

Not available

23

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

24

MTD 731-1236

Rear Trail Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 6

0

25

MTD 732-0700

Wire: Trail Shield
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

26

$

$

Not available

27

MTD 710-0192

Scr. Tr. Mach. #10-24 x 0.380"

$3.99

$

In Stock, Qty 12

0

28

MTD 732-0677

Torsion Spring LH
(Superseded to 932-0677)

$

$

Not available

29

MTD 782-5003

Rear Baffle LH
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

30

MTD 710-1017

Scr. AB 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

31

MTD 732-0678

Torsion Spring RH

$8.49

$

Usually ships in 3-6 days

0

32

MTD 710-0896

Hex Scr. w/ Wash. 1/4-14 x 0.62"

$4.49

$

In Stock, Qty 20+

0

33

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

34

MTD 736-0105

Bell Washer .375 x .870

$4.49

$

In Stock, Qty 20+

0

?35

MTD 634-0020

Rear Wheel: Disk Bar Gray

$39.99

$

In Stock, Qty 6

0

36

MTD 738-0102

Shoulder Screw

$9.99

$

In Stock, Qty 10

0

37

MTD 720-0249

Hubcap: Euro Gray
(Superseded to 920-0249)

$

$

Not available

38

MTD 682-0513

Handle Bracket Assembly LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

MTD 682-0514

Handle Bracket Assembly RH
(Superseded to 682-0516-0637)

$

$

Not available

39

MTD 14766

Pivot Bar LH

$19.99

$

Usually ships in 3-6 days

0

MTD 14765

Pivot Bar RH

$19.99

$

Usually ships in 3-6 days

0

40

MTD 732-0706

Front Lever RH

$15.99

$

In Stock, only 4 left!

0

MTD 732-0707

Front Lever LH

$15.99

$

In Stock, only 1 left!

0

41

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, only 4 left!

0

42

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

43

MTD 782-5007A

Mulch Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0

44

MTD 712-0798

Hex Nut

$4.49

$

In Stock, only 2 left!

0

?45

MTD 736-0356

Flat Washer
(Superseded to 936-0356)

$

$

Not available

46

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

47

MTD 782-0080A

Rear Discharge Deck: 21"

Variations

MTD 782-0080A-0665

No Longer Available DECK-21 R - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0080A-0638

No Longer Available DECK-21 R - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0080A-0691

No Longer Available DECK-21 R - BLACK JACK (0691)

$

$

Not available

MTD 782-0080A-0709

No Longer Available DECK-21 R - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

48

MTD 754-0637

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

?49

MTD 731-1404A

Mulch Plug
(Superseded to 682-7000)

$

$

Not available

50

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 618-0657

Transmission Assembly Compl.
(Superseded to 753-05465)

$245.99

$

Usually ships in 3-6 days

0

53

MTD 731-1937A

Front Drive Cover: Black
(Superseded to 931-04580)

$

$

Not available

54

MTD 715-0169

Roll Pin

$

$

Not available

55

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 16

0

56

MTD 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

57

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

58

MTD 782-0511A

Height Adj. Plate LH
(Superseded to 782-0511A-0637)

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 782-0512B

Height Adj. Plate RH
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

59

MTD 682-0509

Pivot Plate Assembly

$

$

Not available

60

MTD 756-1146A

Drive Pulley

$57.99

$

Usually ships in 3-6 days

0

61

MTD 748-0411

Blade Adapter
(Superseded to 753-05151)

$67.99

$

Usually ships in 3-6 days

0

62

MTD 742-0741

Mulching Blade w/ Star: 21"
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

63

MTD 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 17

0

64

MTD 710-0216

Hex Screw

$4.49

$

In Stock, Qty 16

0

65

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 13

0

66

MTD 717-1762

Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

MTD 717-1761

Gear 14T LH

$13.99

$

In Stock, only 4 left!

0

67

MTD 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

68

MTD 736-3013

Flat Washer

$4.49

$

In Stock, only 3 left!

0

69

MTD 716-0865

Snap Ring

$4.49

$

In Stock, only 1 left!

0

70

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

71

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

72

MTD 736-0474

Washer DD 1.5" O.D.

$6.99

$

In Stock, only 3 left!

0

73

MTD 756-1231

Input Pulley

$

$

Not available

74

MTD 710-1257

Hex Bolt

$7.99

$

In Stock, only 2 left!

0

75

MTD 736-0452

Bell Washer

$4.99

$

In Stock, Qty 7

0

76

MTD 782-5004

Rear Baffle RH
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

77

MTD 750-1166

Slev. Spacer LH

$4.99

$

Usually ships in 3-6 days

0

MTD 750-1165

Slev. Spacer RH
(Superseded to 750-1210)

$

$

Not available

78

MTD 682-0516A

Handle Bracket Assembly RH Compl.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

79

MTD 682-0515A

Handle Bracket Assembly LH Compl.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

80

MTD 782-7000

RD Chute Door

Variations

MTD 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

MTD 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

MTD 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-7000-0674

No Longer Available DOOR-REAR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

81

MTD 710-0606

Hex Bolt

$5.49

$

In Stock, Qty 9

0

82

MTD 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

83

MTD 732-0417A

Spring Lever

$

$

Not available

?84

MTD 710-1008

TT Screw

$5.49

$

In Stock, Qty 9

0

85

MTD 682-0512A

Height Adj. Assembly RH Compl.
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

86

MTD 682-0511A

Height Adj. Assembly LH Compl.
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

?87

MTD 710-1248

Weld Pin

$

$

Currently unavailable

88

MTD 634-0021C

Front Wheel Complete
(Superseded to 734-04223A)

$55.99

$

In Stock, Qty 20+

0

89

MTD 634-0020

Rear Wheel Complete

$39.99

$

In Stock, Qty 6

0
