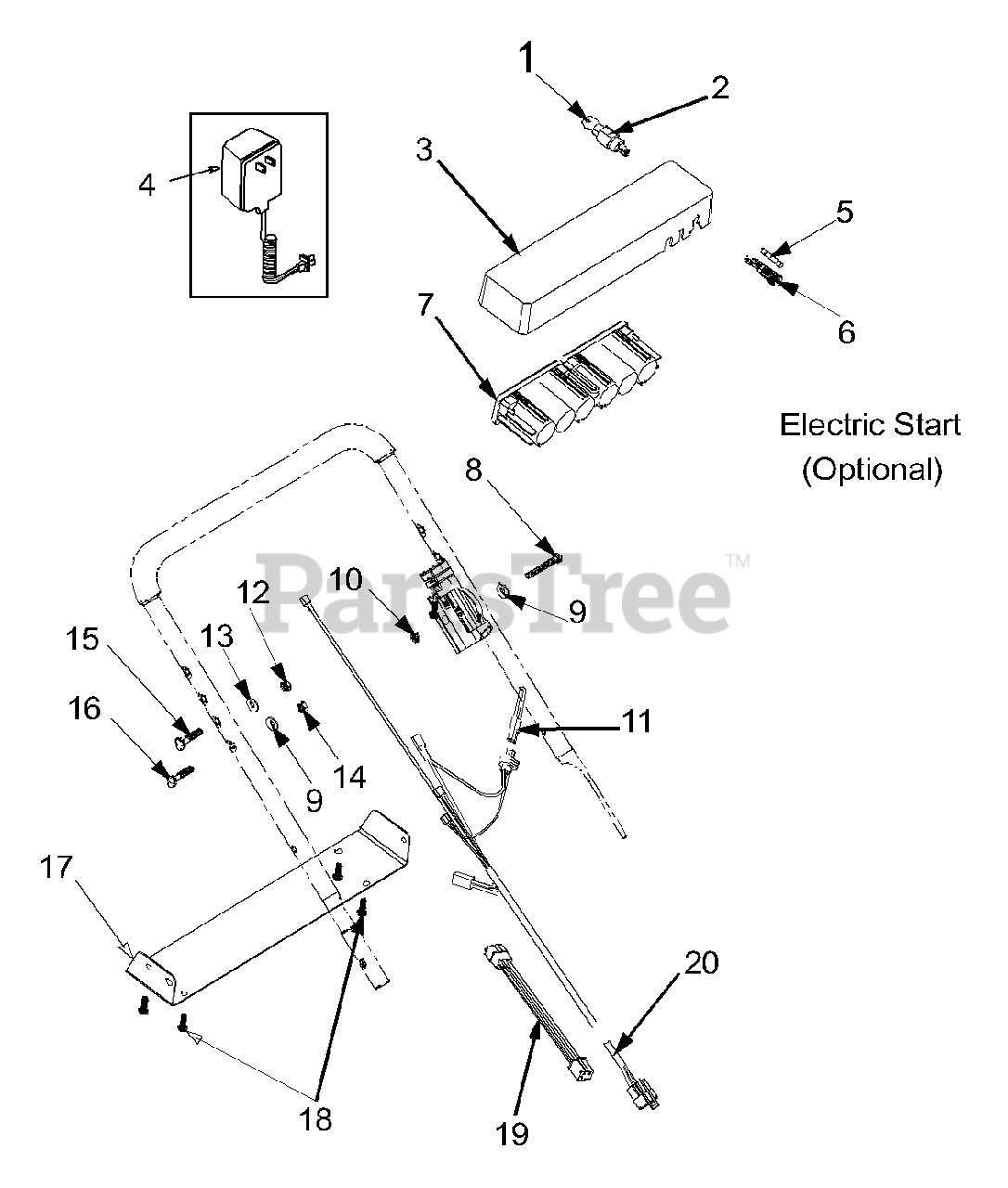

12A-459B120 - Yard Machines Walk-Behind Mower (2002) (K-Mart) Electric Start Parts Diagram

Walk-Behind Mower

Electric Start Parts Diagram

  • Title

1

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

Note: If equipped

$9.49

$

In Stock, Qty 11

0

2

MTD 725-0873

Key Switch
(Superseded to 925-0873)

Note: If equipped

$

$

Not available

3

MTD 731-0891A

Battery Tray

Note: If equipped

$

$

Not available

4

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

Note: If equipped

$77.99

$

In Stock, only 1 left!

0

5

MTD 725-0298

Fuse 7.5 Amp
(Superseded to 925-0298)

Note: If equipped

$4.49

$

Usually ships in 3-6 days

0

6

MTD 725-1428

Fuse Holder
(Superseded to 925-1428)

Note: If equipped

$

$

Not available

7

MTD 725-1276

Battery 12V
(Superseded to 925-1276)

Note: If equipped

$185.99

$

Usually ships in 3-6 days

0

8

MTD 710-0501

Hex Screw:1/4-20:2.0

Note: If equipped

$7.49

$

In Stock, only 1 left!

0

9

MTD 736-0270

Bell Washer .265 x .75 x .062

Note: If equipped

$3.99

$

In Stock, Qty 9

0

10

MTD 712-0329

Special Hex Nut 5/16-18

Note: If equipped

$

$

Not available

11

MTD 725-1206

Plug
(Superseded to 925-1206)

Note: If equipped

$

$

Not available

12

MTD 712-0267

Nut 5/16-18
(Superseded to 912-3010)

Note: If equipped

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0242

Bell Wash .340 ID x .872 OD

Note: If equipped

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

Note: If equipped

$4.99

$

In Stock, only 3 left!

0

15

MTD 710-1250

Carriage Bolt 5/16-18 x 1

Note: If equipped

$4.99

$

In Stock, Qty 5

0

16

MTD 710-0111

Carriage Screw

Note: If equipped

$3.99

$

Usually ships in 3-6 days

0

17

MTD 782-9012

Lower Battery Tray
(Superseded to 782-9012-0637)

Note: If equipped

Variations

MTD 782-9012-0637

BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 710-0969

Tapp Screw

Note: If equipped

$4.49

$

In Stock, only 3 left!

0

19

MTD 725-1538

Harness Extension

Note: If equipped

$

$

Not available

20

MTD 625-0022

Harness
(Superseded to 925-1442)

Note: If equipped

$

$

Not available
