1300 (13A-130F100) - Cub Cadet Garden Tractor Cylinder Assembly Parts Diagram

Garden Tractor

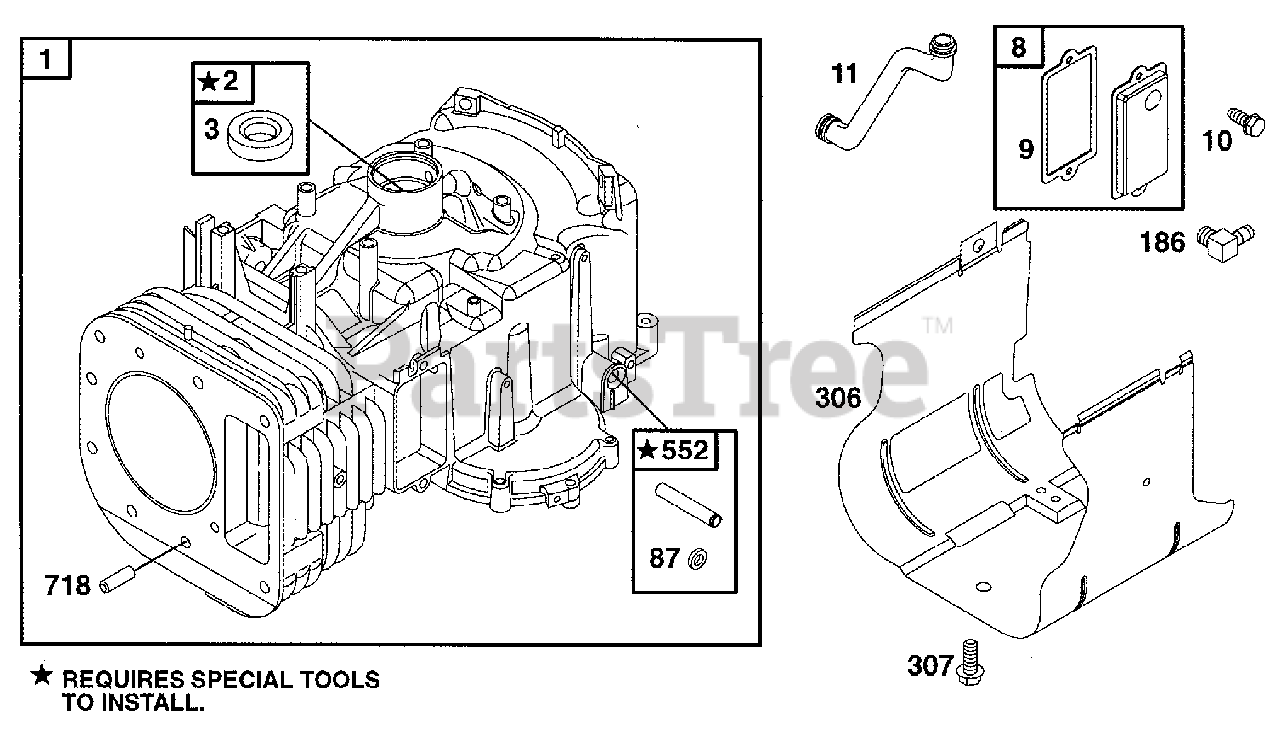

Cylinder Assembly Parts Diagram

  • Title

Cub Cadet BS-28Q777-0536

13 HP B&S Intek Engine

$1087.99

$

Usually ships in 2-12 days

0

1

Cub Cadet BS-496412

Cylinder Assembly

$

$

Currently unavailable

2

Cub Cadet BS-399265

Bushing/Seal Kit
(Superseded to BS-797673)

Note: Requires special tools to install.

$18.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-391086

Oil Seal
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-495734

Breather Assembly

$55.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-27803

Breather Gasket
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-94621

Hex Screw
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-281246

Breather Tube
(Superseded to BS-691328)

$15.99

$

In Stock, only 1 left!

0

87

Cub Cadet BS-491323

Governor Shaft Seal
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 11

0

186

Cub Cadet BS-67218

Hose Connector

Note: (Vacuum Line)

$

$

Not available

306

Cub Cadet BS-225020

Cylinder Shield

$

$

Not available

307

Cub Cadet BS-94930

Hex Screw

$

$

Not available

552

Cub Cadet BS-491986

Governor Crank Bushing

Note: Requires special tools to install.

$

$

Not available

718

Cub Cadet BS-230192

Locating Pin
(Superseded to BS-690959)

$6.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-497149

Short Block

$

$

Not available
