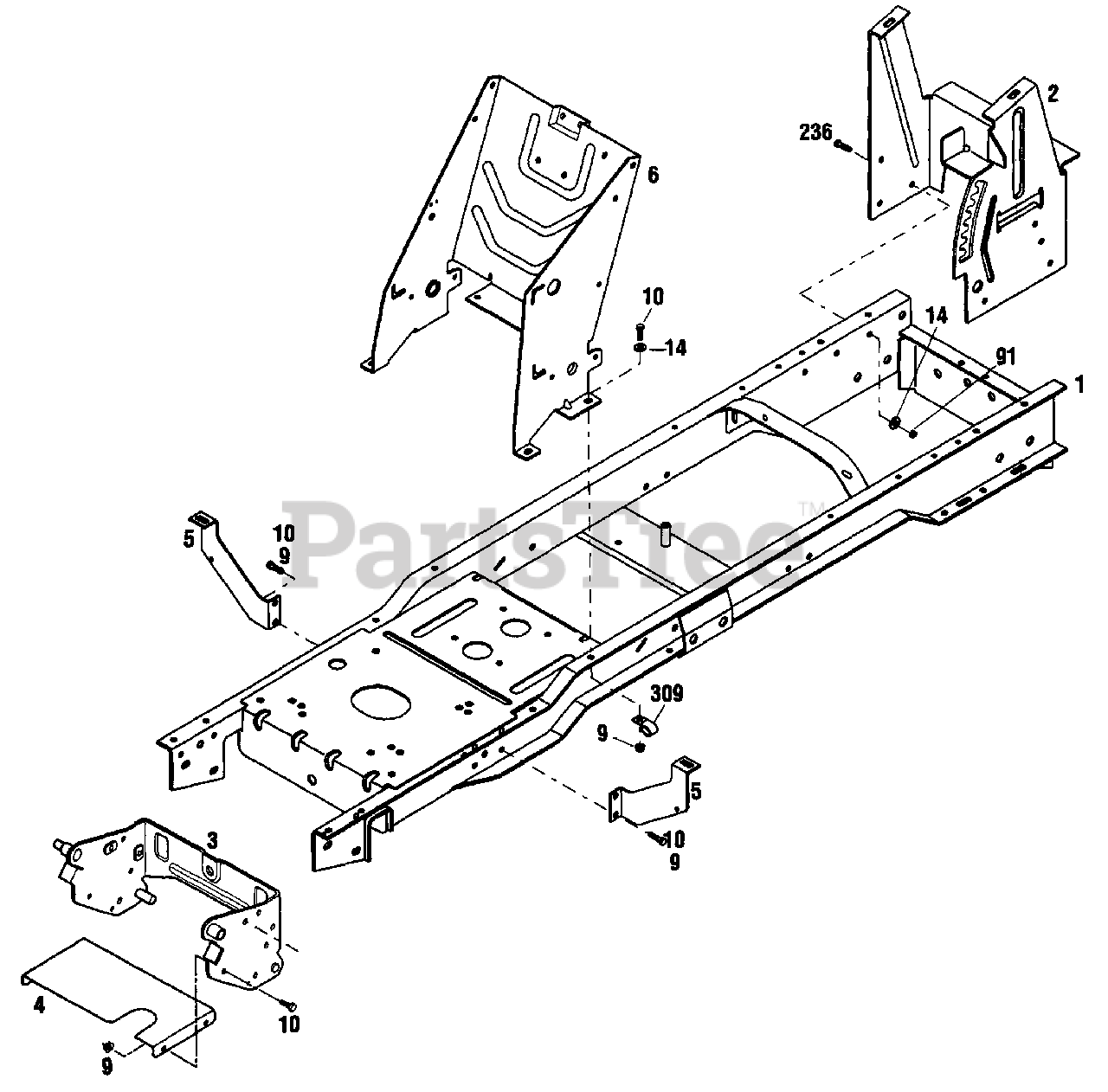

1300 (13A-130F100) - Cub Cadet Garden Tractor Frame Assembly Parts Diagram

Garden Tractor

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 1772924072

Frame
(Superseded to 1772924001)

$

$

Not available

2

Cub Cadet 703-3308-0498

Rear Tank Support

$

$

Not available

3

Cub Cadet 1772809072

Attachment Bracket Assembly

$

$

Not available

4

Cub Cadet 1772807072

Heat Shield

$

$

Not available

5

Cub Cadet 1765431072

Fender Support

$

$

Not available

6

Cub Cadet 703-3293-0498

Console Support

$

$

Not available

9

Cub Cadet 1186391

Flange Nut, 5/16-18
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 1100044

Hex Head Capscrew, 5/16-18 x 3/4
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

?11

Cub Cadet 1185798

Hex Head Capscrew, 3/8-16 x 1/2

$

$

Not available

14

Cub Cadet 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

91

Cub Cadet 1732499

Locknut, 5/16-18
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

236

Cub Cadet 1186329

Flange Screw, 5/16-18 x 3/4
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

309

Cub Cadet 1747738

J-Clamp

$

$

Not available
