13039 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130390100101 & Above) HYDRO TRANSMISSION BREAKDOWN Parts Diagram

Garden Tractor, Hydro Drive

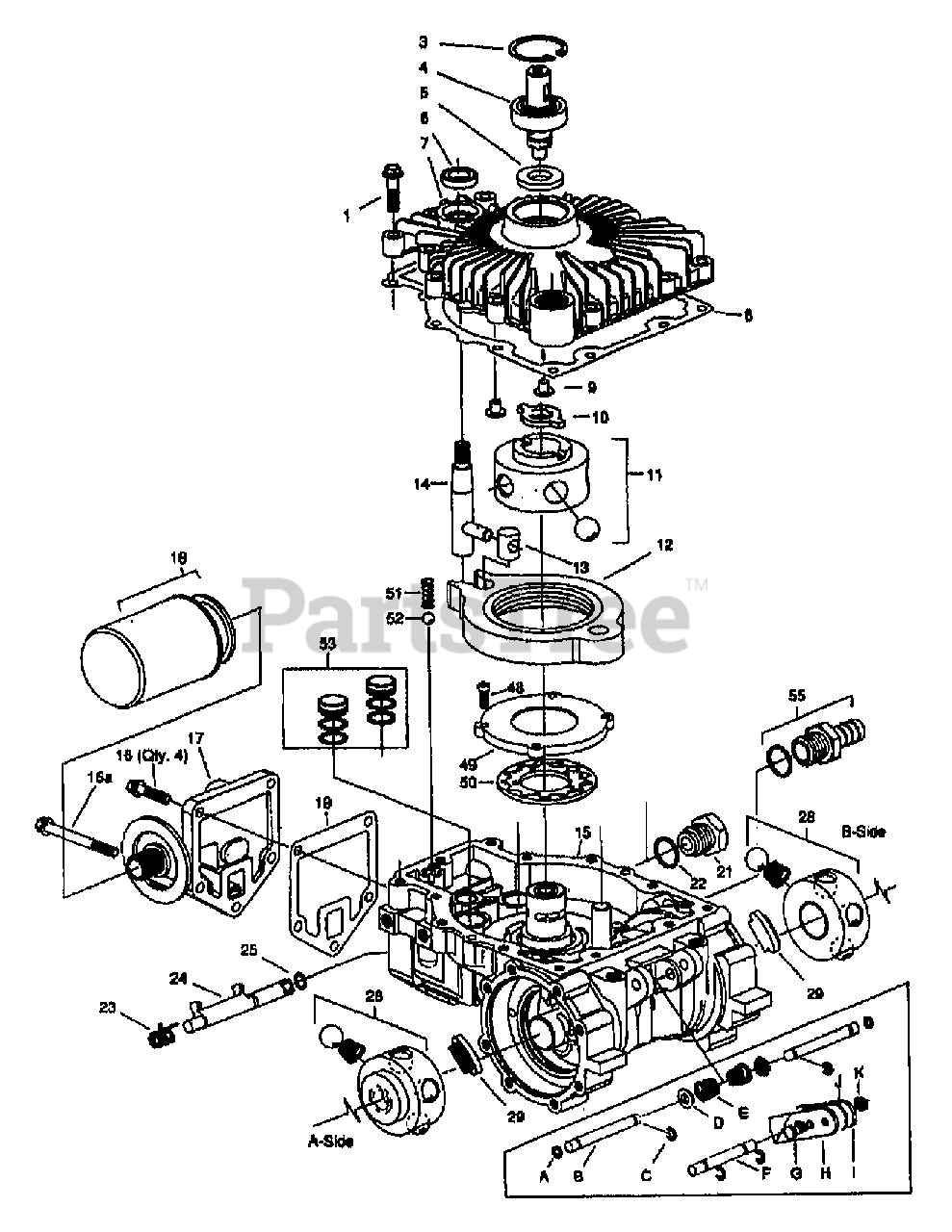

HYDRO TRANSMISSION BREAKDOWN Parts Diagram

  • Title

Troy-Bilt 1765350

TRANSAXLE-HYDROSTATIC
(Superseded to 1770634)

$

$

Not available

1

$

$

Not available

3

MTD 1769201

RING-RETAINING

$

$

Not available

4

MTD 1760892

SHAFT-INPUT

$

$

Not available

5

MTD 1760893

SEAL-OIL

$

$

Not available

6

MTD 1757374

SEAL-CONTROL SHAFT

$

$

Not available

7

MTD 1769202

COVER

$

$

Not available

8

MTD 1769203

COVER-GASKET

$

$

Not available

9

MTD 1769204

BUTTON

$

$

Not available

10

MTD 1769205

DRIVE

$

$

Not available

11

MTD 1769206

PUMP ROTOR/BALL/PN

$

$

Not available

12

MTD 1769207

RING-CAM

$

$

Not available

13

MTD 1769208

INSERT

$

$

Not available

14

MTD 1769209

SHAFT-CONTROL EXT THREAD

$

$

Not available

15

MTD 1769211

HOUSING

$

$

Not available

16

$

$

Not available

16A

$

$

Not available

17

MTD 1769214

BASE-FILTER

$

$

Not available

18

MTD 1769125

FILTER

$

$

Not available

19

MTD 1769127

GASKET

$

$

Not available

21

$

$

Not available

22

MTD 1769216

SEAL-O RING

$

$

Not available

23

MTD 1769217

VALVE-SPRING DUMP

$

$

Not available

24

MTD 1757376

BRACKET

$

$

Not available

25

MTD 1757377

RING-O

$

$

Not available

?26

$

$

Not available

?27

MTD 1769219

GASKET-AXLE HSG

$

$

Not available

28

MTD 1769220

15T MOTOR ROTOR/BALL

$

$

Not available

29

MTD 1769221

PAD-FRICTION

$

$

Not available

?30

MTD 1769222

PLATE-REACTION

$

$

Not available

?31

MTD 1769223

PLATE-BACKUP

$

$

Not available

?32

MTD 1769224

15T SUN GEAR, FIRST

$

$

Not available

?33

MTD 1769225

GEAR-RING 57T

$

$

Not available

?34

MTD 1769226

GEAR-PLANET

$

$

Not available

?35

MTD 1769227

PRIMARY CARRIER

$

$

Not available

?36

MTD 1769228

GEAR-SUN

$

$

Not available

?37

MTD 1769229

GEAR-PINT

$

$

Not available

?38

MTD 1769230

SECOND CARRIER

$

$

Not available

?40

MTD 1769231

AXLE-HOUSING

$

$

Not available

?41

MTD 1769232

RING-RETAIN EXT

$

$

Not available

?42

MTD 1769233

WASHER-THRUST

$

$

Not available

?43

MTD 1769234

RING-RETAIN INT

$

$

Not available

?44

MTD 1757700

BEARING

$

$

Not available

?45

Troy-Bilt 1769235

SEAL-RADIAL LIP

$

$

Not available

?46

MTD 1769236

AXLE-SHAFT

$

$

Not available

48

MTD 1769237

SCR-HXSKT

$

$

Not available

49

MTD 1769238

PUMP-PLATE

$

$

Not available

50

MTD 1769239

GEROTOR

$

$

Not available

51

MTD 1769240

SPRING

$

$

Not available

52

$

$

Not available

53

MTD 1769242

PISTON

$

$

Not available

?54-A

MTD 1769243

SEAL-QUAD

$

$

Not available

?54-B

MTD 1769244

ROD-PUSH

$

$

Not available

?54-C

Troy-Bilt 1769245

RING-RETAIN "E"
(Superseded to 916-0125)

$

$

Not available

?54-D

MTD 1769246

BASE-SPRING

$

$

Not available

?54-E

MTD 1769247

SPRING-CONICAL

$

$

Not available

?54-F

MTD 1769248

BRAKE-SHAFT

$

$

Not available

?54-G

MTD 1769249

SCR-HH

$

$

Not available

?54-H

MTD 1769250

LEVER-BRAKE RH

$

$

Not available

?54-I

MTD 1769251

LEVER-BRAKE LH

$

$

Not available

?54-J

$

$

Not available

?54-K

MTD 1769253

NUT-HEX LOCK

$

$

Not available

?55

MTD 1769254

FITTING-ORING

$

$

Not available

A

UNKNOWN

$

$

Not available

B

UNKNOWN

$

$

Not available

C

UNKNOWN

$

$

Not available

D

UNKNOWN

$

$

Not available

E

UNKNOWN

$

$

Not available

F

UNKNOWN

$

$

Not available

G

UNKNOWN

$

$

Not available

H

UNKNOWN

$

$

Not available

I

UNKNOWN

$

$

Not available

J

UNKNOWN

$

$

Not available

K

UNKNOWN

$

$

Not available

66

UNKNOWN

$

$

Not available
