13045 (31AH9P77766) - Troy-Bilt Polar Blast 45" Snow Thrower (2007) Auger, Auger Housing & Gear Box Parts Diagram

Polar Blast 45" Snow Thrower

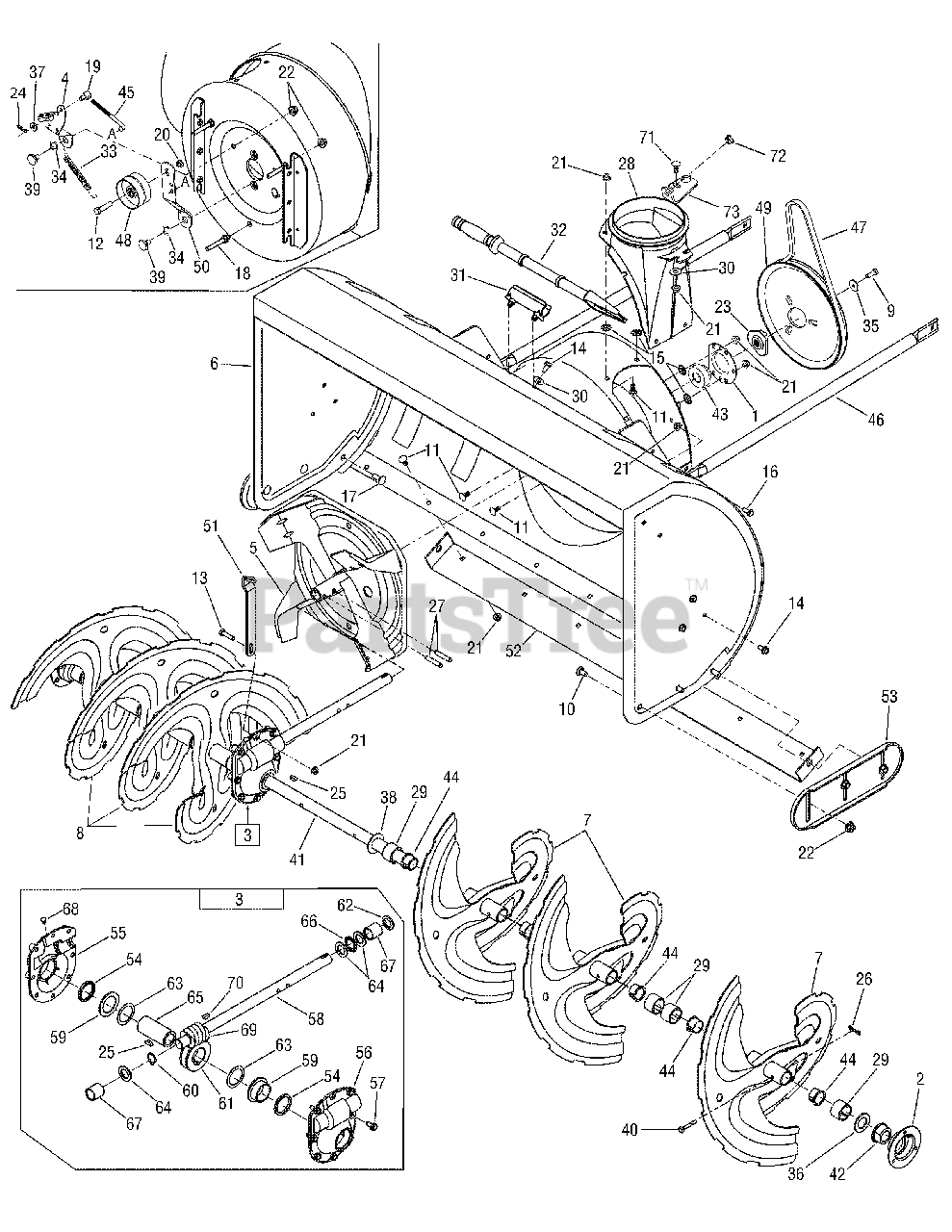

Auger, Auger Housing & Gear Box Parts Diagram

  • Title

1

Troy-Bilt 05244B

Housing, Bearing

$22.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 05845C

Housing, Bearing

Variations

Troy-Bilt 05845C-0637

Bearing Housing - POWDER BLACK (0637)

$22.99

$

In Stock, only 2 left!

0

Troy-Bilt 05845C-0665

HOUSING:BEARING - YARDMAN GREEN (0665)

$

$

Not available

$17.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 618-04515

Gear Box Assembly
(Superseded to 918-04515)

$699.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 618-0281A

Bracket Ass’y, Auger Brake
(Superseded to 918-0281A)

$60.99

$

In Stock, only 4 left!

0

5

Troy-Bilt 684-0090B

Impellar , 16"

Variations

Troy-Bilt 684-0090B-0637

IMPELLER ASM:16" - POWDER BLACK (0637)

$425.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0090B-0717

IMPELLER ASM:16" - SILVER MIST (0717)

$425.99

$

Usually ships in 3-6 days

0

$344.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 684-04223

Housing, Auger - 45"

Variations

Troy-Bilt 684-04223-0638

HOUSING ASM-AUGER - MTD/TROY-BILT RED (0638)

$976.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04223-0650

HOUSING ASM-AUGER - RED METALLIC (0650)

$849.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04223-4021

HOUSING ASM-AUGER - CUB YELLOW 2 (4021)

$849.99

$

Usually ships in 3-6 days

0

$849.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 777S32066

Graphic, Danger

Note: not shown

$

$

Not available

6

Troy-Bilt 777D11472

Graphic, Troy Bilt

Note: not shown

$

$

Not available

6

Troy-Bilt 777D11473

Graphic, 1345 - 45"

Note: not shown

$

$

Not available

7

Troy-Bilt 684-04151

Spiral Ass’y, LH

Variations

Troy-Bilt 684-04151-0606

Spiral Assembly, LH 900 - MAJESTIC ORANGE (0606)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04151-0637

SPIRAL ASM:LH 900 - POWDER BLACK (0637)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04151-0638

SPIRAL ASM:LH 900 - MTD/TROY-BILT RED (0638)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04151-0650

SPIRAL ASM:LH 900 - RED METALLIC (0650)

$231.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04151-0662

SPIRAL ASM:LH 900 - OYSTER GRAY (0662)

$201.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04151-0674

SPIRAL ASM:LH 900 - YARDMAN YELLOW (0674)

$231.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04151-0716

SPIRAL ASM:LH 900 - CUB YELLOW-99 (0716)

$231.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04151-0717

SPIRAL ASM:LH 900 - SILVER MIST (0717)

$201.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04151-4021

SPIRAL ASM:LH 900 - CUB YELLOW 2 (4021)

$231.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04151-4028

SPIRAL ASM:LH 900 - SEARS YELLOW (4028)

$231.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04151-4044

SPIRAL ASM:LH 900 - CRAFTSMAN RED (4044)

$231.99

$

Usually ships in 3-6 days

0

$231.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 684-04152

Spiral Ass’y, RH

Variations

Troy-Bilt 684-04152-0638

SPIRAL ASM:RH 900 - MTD/TROY-BILT RED (0638)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04152-0499

SPIRAL ASM-RH 900 - CUB BEIGE (0499)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04152-0606

SPIRAL ASM:RH 900 - MAJESTIC ORANGE (0606)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04152-0637

SPIRAL ASM:RH 900 - POWDER BLACK (0637)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04152-0650

SPIRAL ASM:RH 900 - RED METALLIC (0650)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04152-0662

SPIRAL ASM:RH 900 - OYSTER GRAY (0662)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04152-0674

SPIRAL ASM:RH 900 - YARDMAN YELLOW (0674)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04152-0716

SPIRAL ASM:RH 900 - CUB YELLOW-99 (0716)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04152-0717

SPIRAL ASM:RH 900 - SILVER MIST (0717)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04152-4021

SPIRAL ASM:RH 900 - CUB YELLOW 2 (4021)

$249.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04152-4028

SPIRAL ASM:RH 900 - SEARS YELLOW (4028)

$231.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04152-4044

SPIRAL ASM:RH 900 - CRAFTSMAN RED (4044)

$231.99

$

Usually ships in 3-6 days

0

$201.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-1245B

Screw, Hex Cap Lock, 5/16-24 x .875 Gr8

$7.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 710-0389

Screw, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 10

0

11

Troy-Bilt 710-0451

Screw, Carr, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0459A

Screw, Hex Cap, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 10

0

13

Troy-Bilt 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 Gr5

$3.99

$

In Stock, Qty 17

0

14

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 726-04012

Nut, Push

$6.99

$

In Stock, Qty 12

0

16

Troy-Bilt 710-3008

Screw, 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-03168

Screw, Carr,3/8-16 x 1.0

$

$

Currently unavailable

18

Troy-Bilt 710-04606

Screw w/Stud, 5/16-18 x .4300
(Superseded to 710-04606A)

$6.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 711-0677

Ferrule
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

20

Troy-Bilt 712-0116

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 7

0

21

Troy-Bilt 712-04063

Nut, Flnge Lk, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-04065

Nut, Flg Lk, 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 748-04067A

Adapter, Pulley w/Pins

$24.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 714-0104

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 714-0135

Key, Woodruff, 1/4 x 3/4

$4.49

$

In Stock, Qty 9

0

26

Troy-Bilt 714-04040

Pin, Bowtie Cotter

$1.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 715-0118

Pin, Spirol, 5/16 x 1.75

$11.99

$

In Stock, Qty 7

0

28

Troy-Bilt 731-1696B

Adapter, Chute, 6"

$84.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 731-05163

Spacer, 1.0 x 1.5 x 1.0Lg

$6.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 736-0159

Washer, Flat, .349 x .879 .063

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 731-2635

Clip, Mounting
(Superseded to 731-11421)

$10.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 731-2643

Tool, Cleanout
(Superseded to 931-2643)

$18.99

$

In Stock, Qty 7

0

33

Troy-Bilt 732-0858

Spring, Extension

$23.99

$

In Stock, Qty 6

0

34

Troy-Bilt 736-0174

Washer, Wave, .625 x .885 x .015

$6.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 736-0505

Washer, Flat, .34 x 1.5 x .15 HT

$5.99

$

In Stock, Qty 6

0

36

MTD 750-04020

Spacer, 1.004 x 1.375 x .25
(Superseded to 950-04020)

$11.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 736-3008

Washer, .344 x .75 x .12
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

38

Troy-Bilt 736-3046A

Washer, 1.01 x 1.86 x .06

$8.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 738-0281

Screw, Shoulder, .625 x .17

$9.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 738-04155

Pin, Shear, .25 x 1.75

$1.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 738-04159

Shaft, Spiral, 45"

$213.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 741-0192

Bearing, Flange w/Flats
(Superseded to 941-0170)

$17.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 741-04024

Bearing, Self Aligning
(Superseded to 941-04024)

$60.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 741-0494

Bushing, Flange,

$3.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 747-0980A

Rod, Auger Idler

$44.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 749-1117

Tube, Support

Variations

Troy-Bilt 749-1117-0637

TUBE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 749-1117-0716

SUPPORT TUBE (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

47

Troy-Bilt 754-0222A

Belt, V, 1/2 x 44
(Superseded to 954-0222A)

$40.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 756-0178

Pulley, Flat Idler, 2.75 OD

$18.99

$

In Stock, only 4 left!

0

49

Troy-Bilt 756-04244A

Pulley, Auger Drive, 10.0

$56.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 784-0385B

Bracket, Auger Idler
(Superseded to 784-0385D)

$27.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 790-00264A

Bracket, Gear Box Support
(Superseded to 790-00264A-0637)

Variations

Troy-Bilt 790-00264A-0637

Auger Gear Box Bracket - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 790-00280

Plate, Shave, — 45"

Variations

Troy-Bilt 790-00280-4021

Shave Plate, 45" - CUB YELLOW 2 (4021)

$57.99

$

In Stock, only 1 left!

0

Troy-Bilt 790-00280-0637

Shave Plate, 45" Black - POWDER BLACK (0637)

$57.99

$

In Stock, only 1 left!

0

Troy-Bilt 790-00280-0691

Shave Plate, 45" - BLACK JACK (0691)

$57.99

$

In Stock, only 1 left!

0

Troy-Bilt 790-00280-0638

Shave Plate, 45" - MTD/TROY-BILT RED (0638)

$57.99

$

In Stock, only 1 left!

0

$52.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 784-5697

Shoe, Skid

Variations

Troy-Bilt 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$42.99

$

In Stock, only 2 left!

0

Troy-Bilt 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$42.99

$

In Stock, Qty 7

0

Troy-Bilt 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$42.99

$

In Stock, only 2 left!

0

Troy-Bilt 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$42.99

$

In Stock, only 2 left!

0

Troy-Bilt 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$42.99

$

In Stock, only 2 left!

0

Troy-Bilt 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$42.99

$

In Stock, only 2 left!

0

Troy-Bilt 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$42.99

$

In Stock, only 2 left!

0

$42.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 721-0146

Oil Seal
(Superseded to 921-0146)

$11.99

$

In Stock, only 4 left!

0

55

Troy-Bilt 618-0246

Hsg, Ass’y, Auger, RH (Incl. Ref. # 54 & 59)
(Superseded to 918-0246)

$

$

Not available

56

Troy-Bilt 618-0247

Hsg, Ass’y, Auger, LH (Incl. Ref. # 54 & 59)
(Superseded to 918-0247)

$96.99

$

In Stock, only 1 left!

0

57

Troy-Bilt 710-1260A

Scr, LD, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 711-04714

Shf, Drive, Auger

$62.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 741-0670

Flange Bearing

$12.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 716-0111

Ext, Ret, Ring

$6.49

$

In Stock, Qty 11

0

61

Troy-Bilt 717-1425

Gear, Worm, LH
(Superseded to 917-1425)

$165.99

$

In Stock, only 2 left!

0

62

Troy-Bilt 721-0145

Seal, Oil
(Superseded to 921-0145)

$9.49

$

In Stock, only 4 left!

0

63

Troy-Bilt 736-0266

Wash, Flat, 1.52ID x 2.0 OD
(Superseded to 936-0266)

$

$

Not available

64

Troy-Bilt 736-0291

Wash, Flat, .88 ID x .38 OD

$10.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 738-0275

Shf, Gear, Worm

$104.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 741-0184

Bearing, Thrust

$15.99

$

In Stock, only 4 left!

0

67

Troy-Bilt 741-0217

Sleeve
(Superseded to 941-0217)

$16.99

$

In Stock, Qty 11

0

68

Troy-Bilt 721-0325

Plug

$4.49

$

Usually ships in 3-6 days

0

69

Troy-Bilt 717-0299

Gear, Worn
(Superseded to 917-0299)

$115.99

$

In Stock, only 2 left!

0

70

Troy-Bilt 714-0126

Key, Hi Pro, 3/16 x 3/4

$4.49

$

In Stock, Qty 20+

0

71

Troy-Bilt 710-0276

Screw, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

72

Troy-Bilt 741-0475

Bushing, Plastic, .38 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

73

Troy-Bilt 784-5123

Bracket, Chute Crank
(Superseded to 784-5123-0637)

Variations

Troy-Bilt 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0
