13105 - Troy-Bilt Hydro LTX Lawn Tractor (SN: 131051200101 - 131051299999) Electric Lift Assembly Parts Diagram

Hydro LTX Lawn Tractor

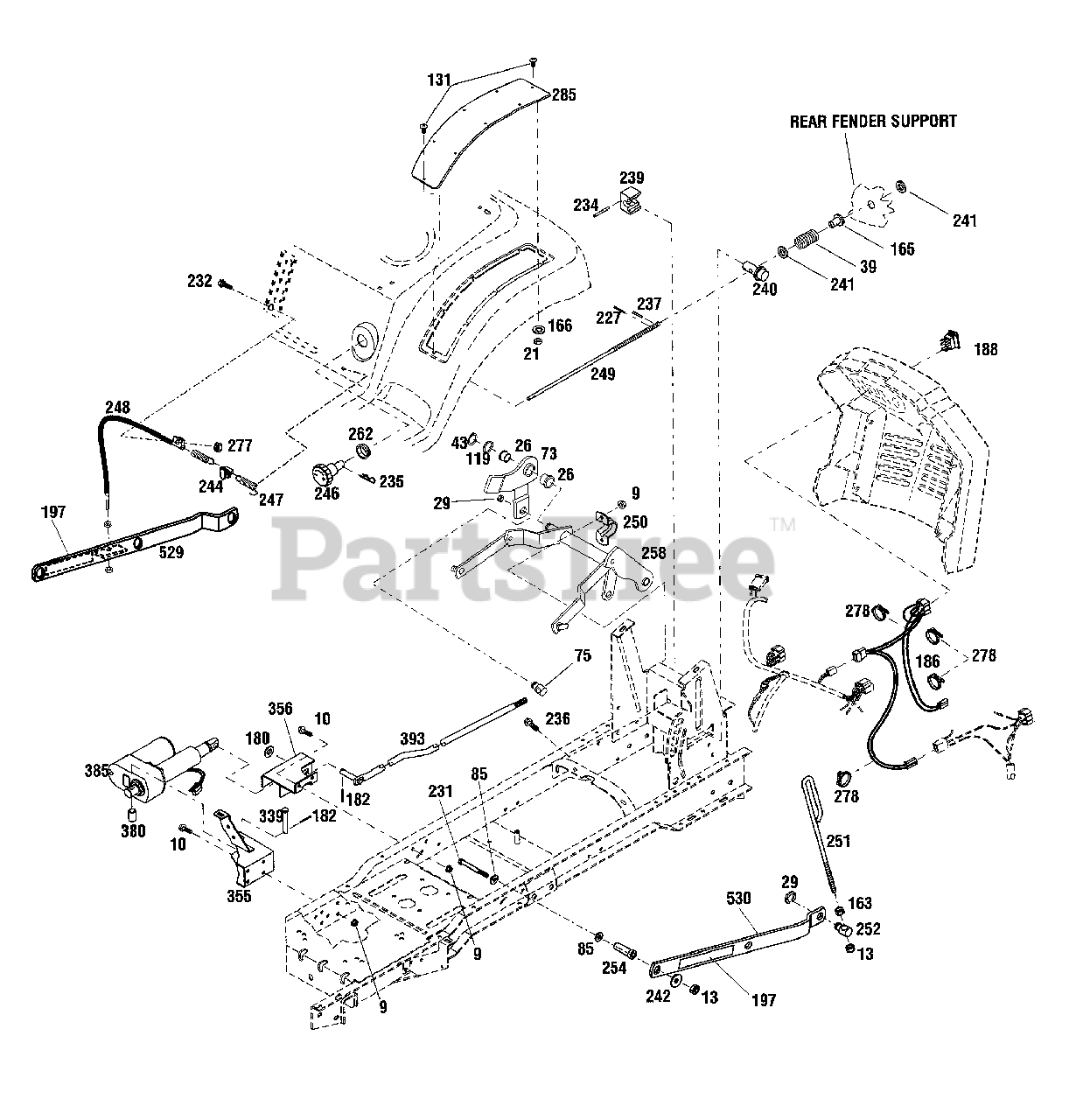

Electric Lift Assembly Parts Diagram

  • Title

9

Troy-Bilt 1186391

Flange Nut, 5/16-18
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

Hex Head Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1733398

Hex Top Locknut 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 1817146

Nylon Locknut, 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

26

MTD 1752556

Flange Bushing

$

$

Not available

29

Troy-Bilt 1177567

E-Ring, 5/8
(Superseded to 716-0106)

$3.99

$

In Stock, only 3 left!

0

39

MTD 1721492

Compression spring

$

$

Not available

43

MTD 1185689

Retaining Ring

$

$

Not available

73

Troy-Bilt 1773025

Pivot Arm Assembly

$

$

Currently unavailable

75

Troy-Bilt 1770696

Pivot Block

$

$

Currently unavailable

85

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

119

Troy-Bilt 1185816

Flat Washer 1-1/64

$3.49

$

Usually ships in 3-6 days

0

131

Troy-Bilt 1772882

Screw, 1/4-20 x 5/8
(Superseded to 710-0946)

$3.49

$

Usually ships in 3-6 days

0

163

Troy-Bilt 1186231

Hex Nut, 3/8-18
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

165

Troy-Bilt 1715716

Nyliner Bushing

$3.49

$

In Stock, only 1 left!

0

166

Troy-Bilt 1720883

Flat Washer, 1/4

$

$

Not available

180

Troy-Bilt 1107385

Flat Washer, 1/2
(Superseded to 936-0326)

$4.49

$

In Stock, Qty 20+

0

182

Troy-Bilt 1100350

Cotter Pin, 1/4 x 1
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

186

Troy-Bilt 1771081

Actuator Harness

$3.49

$

In Stock, only 2 left!

0

188

MTD 1771668

Rocker Switch

$

$

Not available

197

MTD 1773104

Warning Decal

$

$

Not available

227

Troy-Bilt 1100349

Cotter Pin, 1/8 x 3/4
(Superseded to 914-0474)

$

$

Not available

231

Troy-Bilt 1111614

Hex Head Screw, 3/8-16 x 3
(Superseded to 710-0521)

$4.99

$

In Stock, Qty 15

0

232

Troy-Bilt 1773610

Screw, 10-24 x 5/16
(Superseded to 710-0192)

$3.49

$

In Stock, Qty 11

0

234

MTD 1185376

Drive Pin

$

$

Not available

235

MTD 1817091

Hitch Pin

$

$

Not available

236

Troy-Bilt 1186329

Flange Screw 5/16-18 x 3/4
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

237

Troy-Bilt 1187961

Drive Pin
(Superseded to 915-0249)

$6.49

$

In Stock, only 2 left!

0

239

MTD 1766259

Height Adjust Collar

$

$

Not available

240

MTD 1766257

Height Adjust Block

$

$

Not available

241

Troy-Bilt 1738490

Flat Washer, 1/2 x 1

$

$

Not available

242

Troy-Bilt 1763355

Flat Washer, 3/8 x 1-1/2
(Superseded to 936-0227)

$

$

Not available

244

Troy-Bilt 1773201

Height Indicator

$

$

Not available

246

MTD 1765485

Height Adjust Knob

$

$

Not available

247

MTD 1773206

Extension Spring

$

$

Not available

248

MTD 1773183

Cable Assembly

$

$

Not available

249

MTD 1773133

Height Adjust Screw

$

$

Not available

250

MTD 1772806

Lift Clamp

$

$

Not available

251

Troy-Bilt 1772866

Lift Rod

$

$

Currently unavailable

252

MTD 1772438

Rear Lift Swivel

$

$

Not available

254

MTD 1766080

Spacer

$

$

Not available

258

Troy-Bilt 1772970001

Lift Assembly

$

$

Currently unavailable

262

MTD 1766346

Snap Bushing Grommet

$

$

Not available

277

Troy-Bilt 1185958

Keps Nut,10-24

$

$

Currently unavailable

278

Troy-Bilt 1735531

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

285

Troy-Bilt 1773064

Cover

$

$

Currently unavailable

339

MTD 1706621

Clevis Pin, 1/2

$

$

Not available

355

MTD 1770688001

Front Support

$

$

Not available

356

Troy-Bilt 1771799001

Rear Support

$

$

Currently unavailable

380

Troy-Bilt 1770694

Spacer

$

$

Currently unavailable

385

Troy-Bilt 1771678

Actuator

$

$

Currently unavailable

393

Troy-Bilt 1772978

Lift Rod

$

$

Currently unavailable

529

Troy-Bilt 1773524

Lift Link Assembly RH

Note: (Incl. 197)

$

$

Currently unavailable

530

MTD 1772962

Lift Link Assembly LH

Note: (Incl. 197)

$

$

Not available
