131D02-0001-01 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

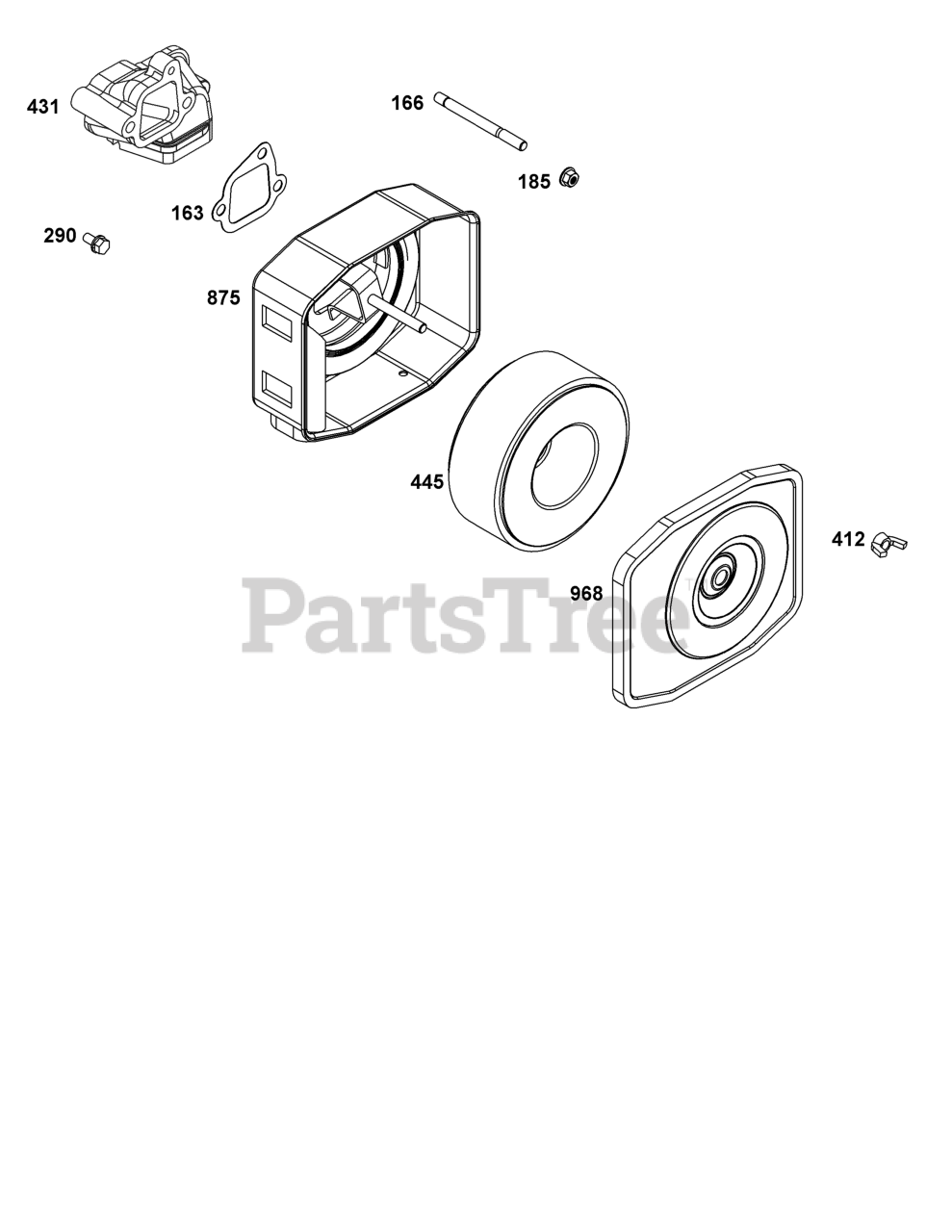

Air Cleaner Group Parts Diagram

  • Title

163

Briggs & Stratton 84006234

GASKET, Air Cleaner

$2.49

$

Usually ships in 2-12 days

0

166

Briggs & Stratton 84006247

STUD

Note: (Air Cleaner)

$2.49

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 84005350

NUT

Note: (Air Cleaner Base)

$2.99

$

Usually ships in 2-12 days

0

290

Briggs & Stratton 84005407

SCREW

Note: (Intake Elbow)

$2.49

$

Usually ships in 2-12 days

0

412

Briggs & Stratton 84006246

NUT

Note: (Air Cleaner Cover)

$2.49

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 84006235

ELBOW, Intake

$11.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 84006236

FILTER, A/C Cartridge

$13.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 84006233

BASE, Air Cleaner

$19.99

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 84006232

COVER, Air Cleaner

$16.99

$

Usually ships in 2-12 days

0
