135-2472 - Exmark Foot Operator Control Discharge Kit (SN: 402082300 - 404314158) (2018) 135-2472 Assembly Parts Diagram

Foot Operator Control Discharge Kit

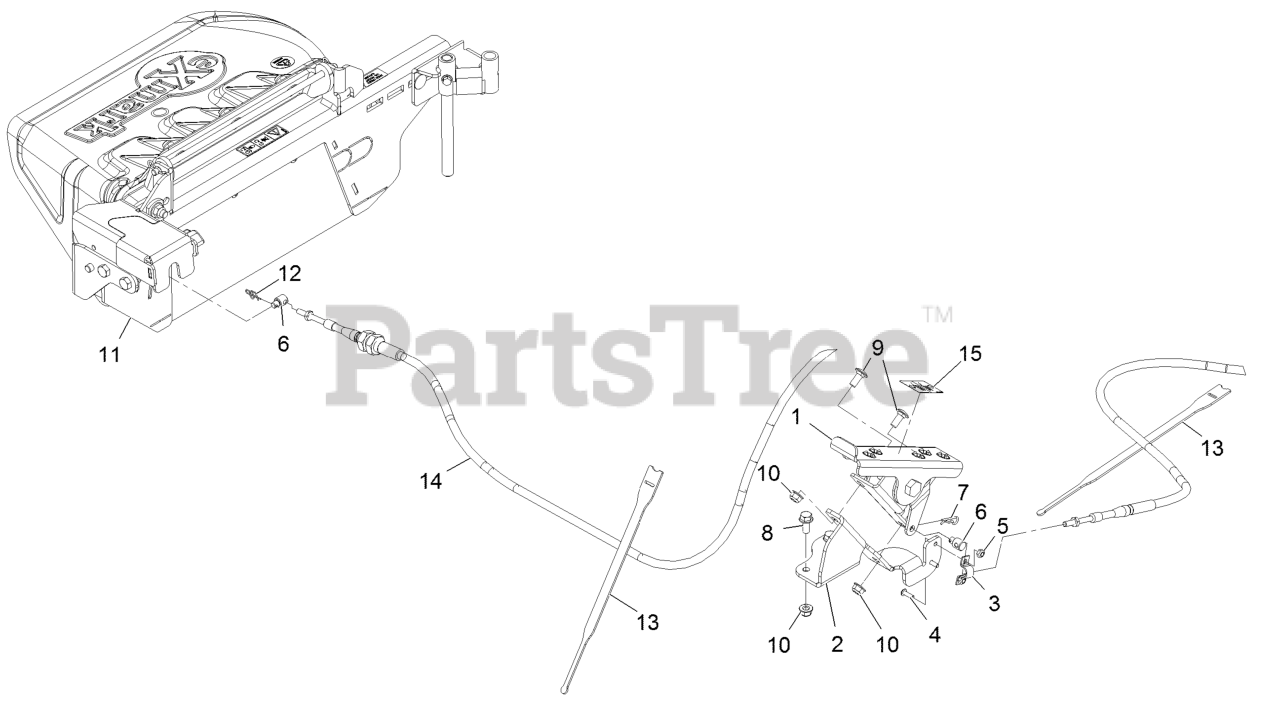

135-2472 Assembly Parts Diagram

  • Title

1

Exmark 116-7814

ASM, Pedal, Ocd Gate

$231.99

$

Usually ships in 3-6 days

0

2

Exmark 135-1871-01

Mount-Pedal, Ocd

$

$

Not available

3

Exmark 116-1545

Clamp

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 3274-39

Screw-HSBH

$5.99

$

In Stock, only 3 left!

0

5

Exmark 3296-12

Nut-Nyloc #10-24 Thin
(Superseded to 3296-12)

$1.49

$

In Stock, Qty 12

0

6

Exmark 116-7868

Pivot, Control Cable

$14.99

$

Usually ships in 3-6 days

0

7

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

0

8

Exmark 3234-47

Screw-HH Flg 5/16-18 X 3/4

$2.99

$

In Stock, only 4 left!

0

9

Exmark 3230-23

Bolt-Carriage 5/16-18 X 3/4 Short Neck

$1.49

$

In Stock, Qty 20+

0

10

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-8556

ASM, Ocd

$542.99

$

In Stock, only 1 left!

0

12

Exmark 116-6639

Pin-Cotter, Locking

$1.49

$

In Stock, only 4 left!

0

13

Exmark 116-2469

Strap-Velcro, Cable Tie

$18.99

$

Usually ships in 3-6 days

0

14

Exmark 116-4005

Cable-Discharge Gate

$242.99

$

In Stock, only 3 left!

0

15

Exmark 135-3908

Decal-Ocd Operation

$16.99

$

Usually ships in 3-6 days

0
