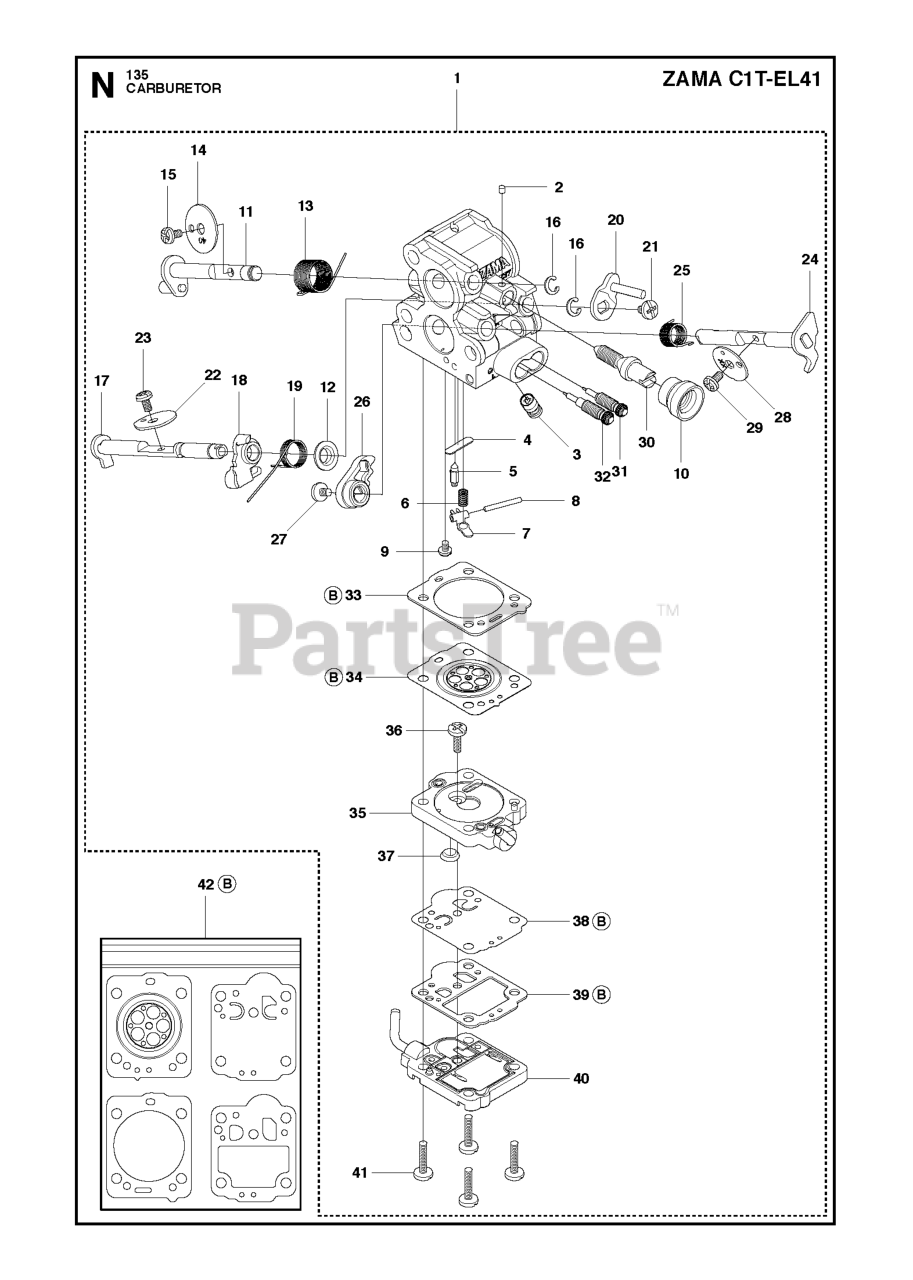

135 e - Husqvarna Chainsaw CARBURETOR Parts Diagram

Chainsaw

CARBURETOR Parts Diagram

  • Title

14

Husqvarna 504027501

VALVE

Note: Valve

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 504024001

NOZZLE ASSY

Note: Nozzle assy

$8.99

$

Usually ships in 3-10 days

0

41

Husqvarna 504027801

SCREW

Note: Screw

$2.49

$

Usually ships in 3-10 days

0

28

Husqvarna 504027601

VALVE

Note: Valve

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 504025001

STRAINER

Note: Strainer

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 504028401

SPRING

Note: Spring

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 504028201

SCREW

Note: Screw

$2.49

$

Usually ships in 3-10 days

0

22

Husqvarna 504027401

VALVE

Note: Valve

$

$

Not available

10

Husqvarna 505535201

CAP ZAMA 0051034

Note: Cap

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 503481801

SCREW

Note: Screw

$3.99

$

In Stock, only 1 left!

0

32

Husqvarna 504028101

SCREW

Note: Screw

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

Note: Pin retaning screw

$3.49

$

In Stock, only 1 left!

0

34

Husqvarna 504024501

DIAPHRAGM

Note: Diaphragm

$9.99

$

In Stock, Qty 18

0

4

Husqvarna 503535601

PLUG

Note: Plug welch

$7.49

$

In Stock, Qty 6

0

29

Husqvarna 503479201

SCREW

Note: Screw

$3.99

$

In Stock, only 2 left!

0

9

Husqvarna 504024101

SCREW

Note: Screw

$

$

Not available

16

Husqvarna 504026701

E RING

Note: Circlip

$3.99

$

In Stock, only 1 left!

0

42

Husqvarna 504028601

GASKET KIT
(Superseded to 545008031)

Note: Set of gaskets

$24.99

$

In Stock, only 3 left!

0

40

Husqvarna 504025901

COVER

Note: Cover

$10.99

$

In Stock, only 1 left!

0

20

Husqvarna 504026301

LEVER

Note: Lever

$26.99

$

Usually ships in 3-10 days

0

12

Husqvarna 505110701

COLLAR ZAMA 005020

Note: Collar

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 504025701

GASKET

Note: Gasket

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 503479001

SCREW

Note: Screw

$3.99

$

In Stock, Qty 11

0

13

Husqvarna 504028501

SPRING

Note: Spring

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 544983101

LEVER

Note: Lever

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 503481101

PLUG

Note: Piece

$10.99

$

Usually ships in 3-10 days

0

31

Husqvarna 504909201

SCREW

Note: Screw

$8.99

$

In Stock, only 2 left!

0

33

Husqvarna 504024301

GASKET

Note: Gasket

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 504026101

SHAFT ASSY

Note: Shaft assy

$

$

Not available

6

Husqvarna 537020301

SPRING
(Superseded to 537273401)

Note: Spring

$

$

Not available

15

Husqvarna 503481801

SCREW

Note: Screw

$3.99

$

In Stock, only 1 left!

0

35

Husqvarna 504024601

BODY

Note: Body

$21.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503665901

LEVER

Note: Lever

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 503479701

INLET NEEDLE

Note: Valve

$8.99

$

In Stock, only 2 left!

0

17

Husqvarna 504026201

CHOKE SHAFT ASSY

Note: Shaft assy

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 504028301

SPRING

Note: Spring

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 504026001

THROTTLE SHAFT ASSY

Note: Shaft assy

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 540053701

LEVER

Note: Lever

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 504025601

DIAPHRAGM

Note: Diaphragm

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 503479001

SCREW

Note: Screw

$3.99

$

In Stock, Qty 11

0

30

Husqvarna 504027301

SCREW

Note: Screw

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 506450501

CARBURETOR

Note: Zama C1T-EL41

$80.99

$

Usually ships in 3-10 days

0
