135O765N013 - MTD Lawn Tractor (1995) (Costco) Chute Assembly - Center Section Parts Diagram

Lawn Tractor

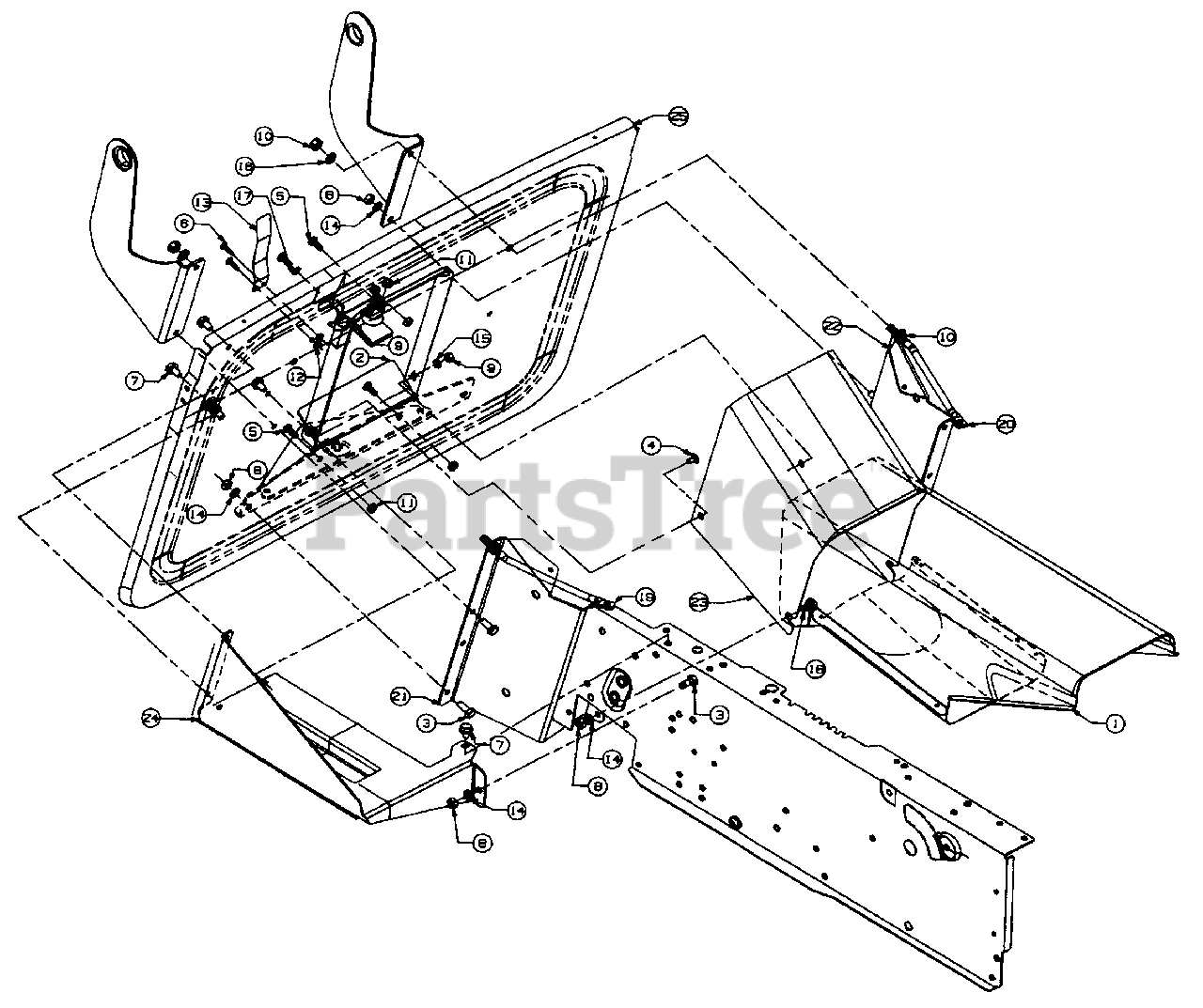

Chute Assembly - Center Section Parts Diagram

  • Title

1

MTD 683-0078

Chute Ass'y. Center Section

$

$

Not available

2

MTD 683-0109

Hitch Extension Brkt.

$

$

Not available

3

MTD 710-0118

Hex bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

5

MTD 710-0258

Hex Bolt 1/4-20 x 5/8" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-3009

Phillip Hd. Tap Scr. #10-24 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

7

MTD 710-0607

Hex Wash. Hd. SF-Tap Scr. 5/16 x .5" Lg.

$6.49

$

In Stock, Qty 20+

0

8

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

10

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

11

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

12

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

13

MTD 732-0750

Spring Switch
(Superseded to 932-0750A)

$20.99

$

Usually ships in 3-6 days

0

14

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

16

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

17

MTD 736-0222

Ext. L-Wash. 1/4" I.D.

$5.49

$

In Stock, only 3 left!

0

18

MTD 738-0155

Shld. Bolt .437" x 1.62" Lg.
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

19

MTD 747-0616

Brace Rod - R.H.

$

$

Not available

20

MTD 747-0617

Brace Rod - L.H.

$

$

Not available

21

MTD 783-0171

Hitch Plate Ext. - R.H.

$

$

Not available

22

MTD 783-0170

Hitch Plate Ext. - L.H.

$

$

Not available

23

MTD 783-0203

Chute Cover Brkt.

$

$

Not available

24

MTD 783-0234

Battery Tray

$

$

Not available

25

MTD 783-0283

Grass Catcher Support

$

$

Not available
