135O765N013 - MTD Lawn Tractor (1995) (Costco) Fender & Running Board Parts Diagram

Lawn Tractor

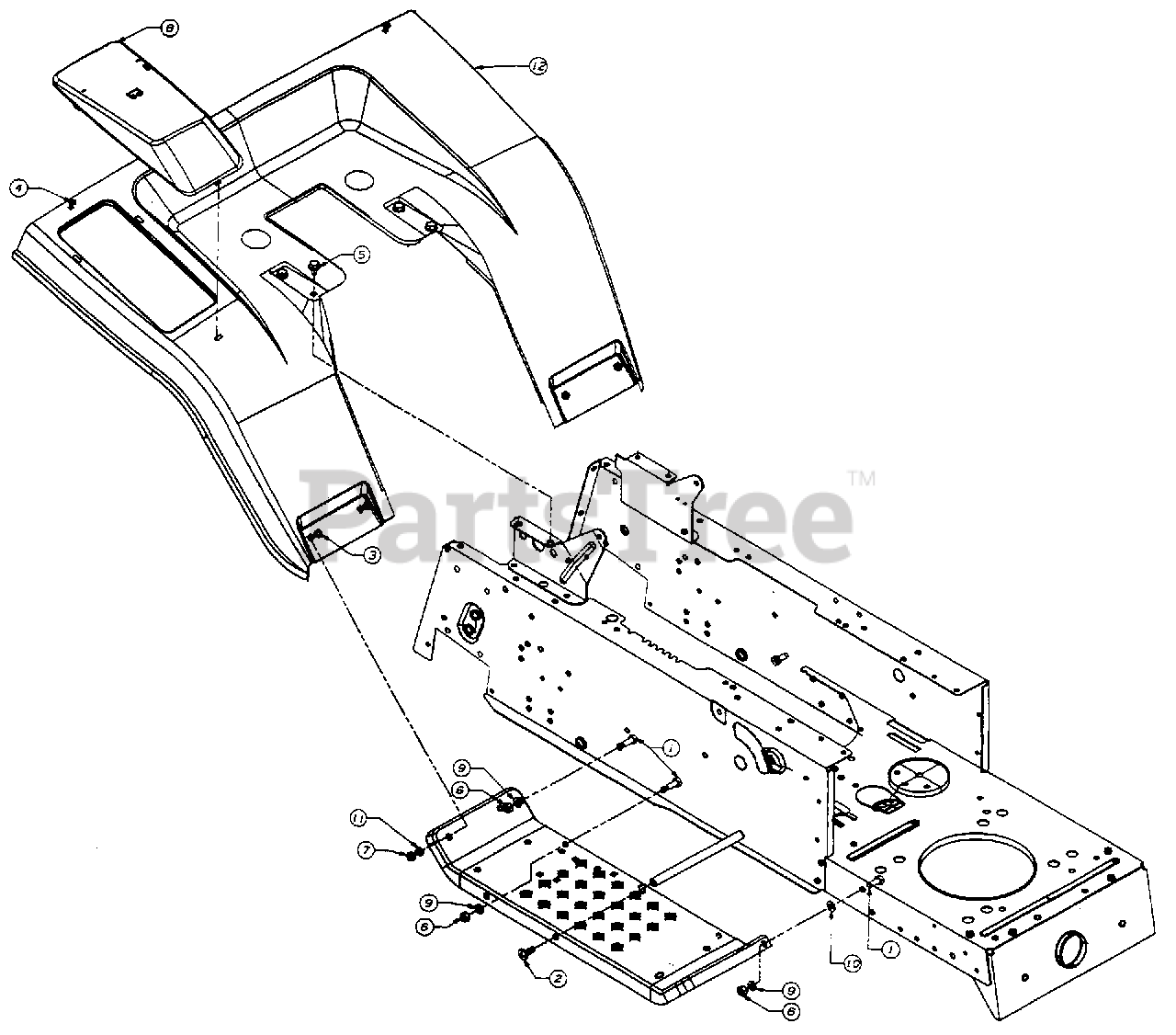

Fender & Running Board Parts Diagram

  • Title

1

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-1221

Pan Hd. Scr. 5/16-18 x .75" Lg.

$

$

Not available

3

MTD 710-0286

Pan Hd. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

4

MTD 710-0351

Recess Hd. B-Tap Scr. #10-16 x .5" Lg.

$4.49

$

In Stock, only 3 left!

0

5

MTD 710-0607

Hex SF-Tap Scr. 5/16 x 1/2" Lg.

$6.49

$

In Stock, Qty 20+

0

6

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

8

MTD 731-1543

Battery Cover

$

$

Not available

9

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0264

Fl-Wash. .33" I.D. x .63" O.D.

$6.49

$

In Stock, only 2 left!

0

11

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

12

MTD 783-0227

Fender

Variations

MTD 783-0227-0638

No Longer Available FENDER-EUR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0227-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

?13

MTD 17770A

Running Board
(Superseded to 17770H)

Variations

MTD 17770A-0480

BOARD-RUNNING - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17770A-0483

BOARD-RUNNING - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17770A-0499

BOARD-RUNNING - CUB BEIGE (0499)

$

$

Not available

MTD 17770A-0629

BOARD-RUNNING - SILVER FLAKE (0629)

$

$

Not available

MTD 17770A-0637

BOARD-RUNNING - POWDER BLACK (0637)

$

$

Not available

MTD 17770A-0660

BOARD-RUNNING - TEAL (0660)

$

$

Not available

MTD 17770A-0662

BOARD-RUNNING - OYSTER GRAY (0662)

$

$

Not available

MTD 17770A-0665

BOARD-RUNNING - YARDMAN GREEN (0665)

$

$

Not available

MTD 17770A-0667

BOARD-RUNNING - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17770A-0692

BOARD-RUNNING - AGWAY BLUE (0692)

$

$

Not available

MTD 17770A-0638

No Longer Available BOARD-RUNNING - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17770A-0648

No Longer Available BOARD-RUNNING - TECH GRAY (0648)

$

$

Not available

MTD 17770A-0650

No Longer Available BOARD-RUNN - RED METALLIC (0650)

$

$

Not available

MTD 17770A-0663

No Longer Available BOARD-RUNN - CAYMEN GREEN (0663)

$

$

Not available

MTD 17770A-0691

No Longer Available BOARD-RUNN - BLACK JACK (0691)

$

$

Not available

$

$
