13AK79BT211 - Troy-Bilt Horse 46" Lawn Tractor, Hydro Drive (2018) Electrical Parts Diagram

Horse 46" Lawn Tractor, Hydro Drive

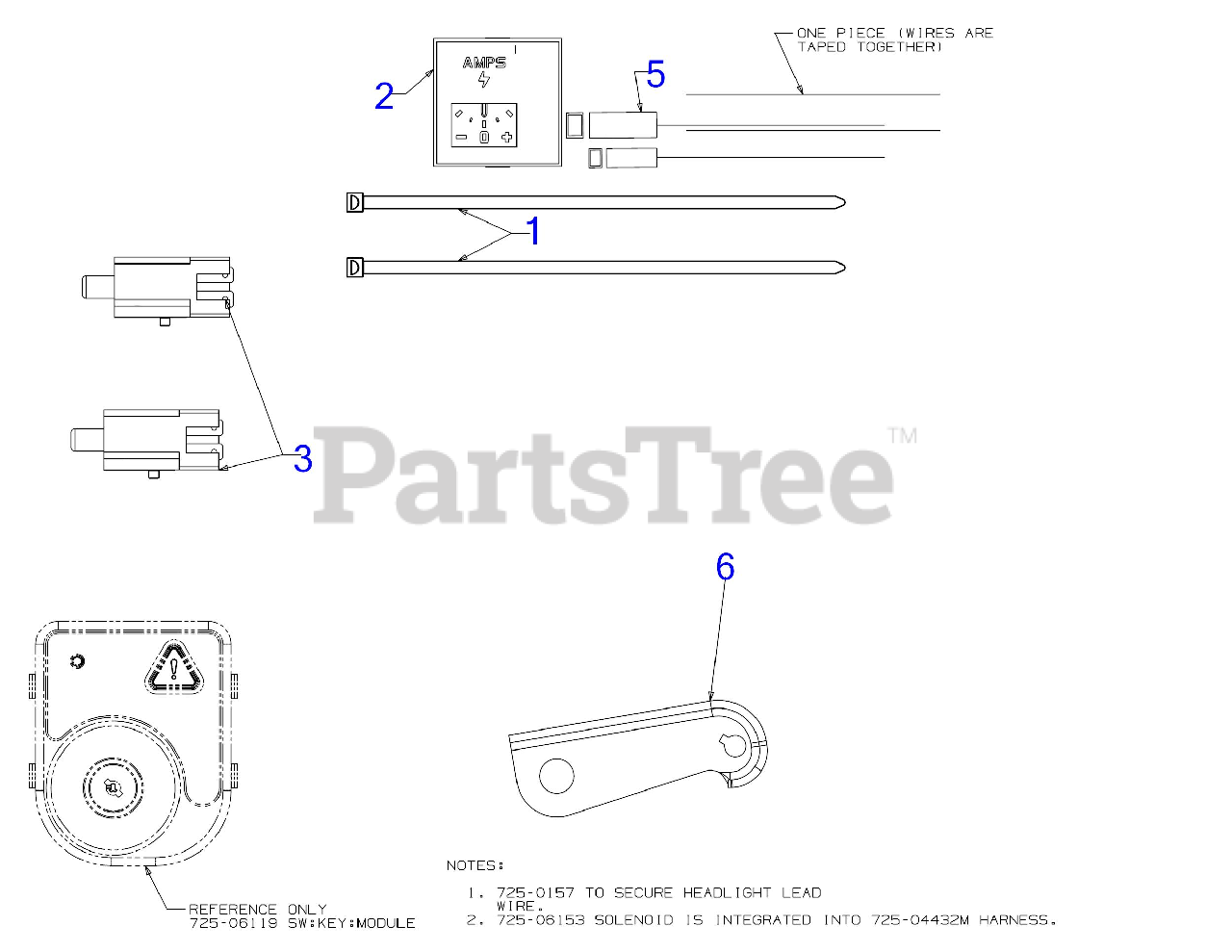

Electrical Parts Diagram

  • Title

1

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 925-04156

INDICATOR MONITOR

$29.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 725-04469

JUMPER HARNESS ASSEMBLY

$18.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 783-06991-0637

LATCH SPEED BRACKET

$9.49

$

In Stock, Qty 5

0

Troy-Bilt 925-04432M

MAIN HARNESS RMC/AM/ACDC/BULB
(Superseded to 725P04432P)

Note: (Not Shown)

$143.99

$

In Stock, only 3 left!

0

Troy-Bilt 725-06153

SOLENOID
(Superseded to 725-06153A)

Note: (Not Shown)

$42.99

$

In Stock, Qty 20+

0
