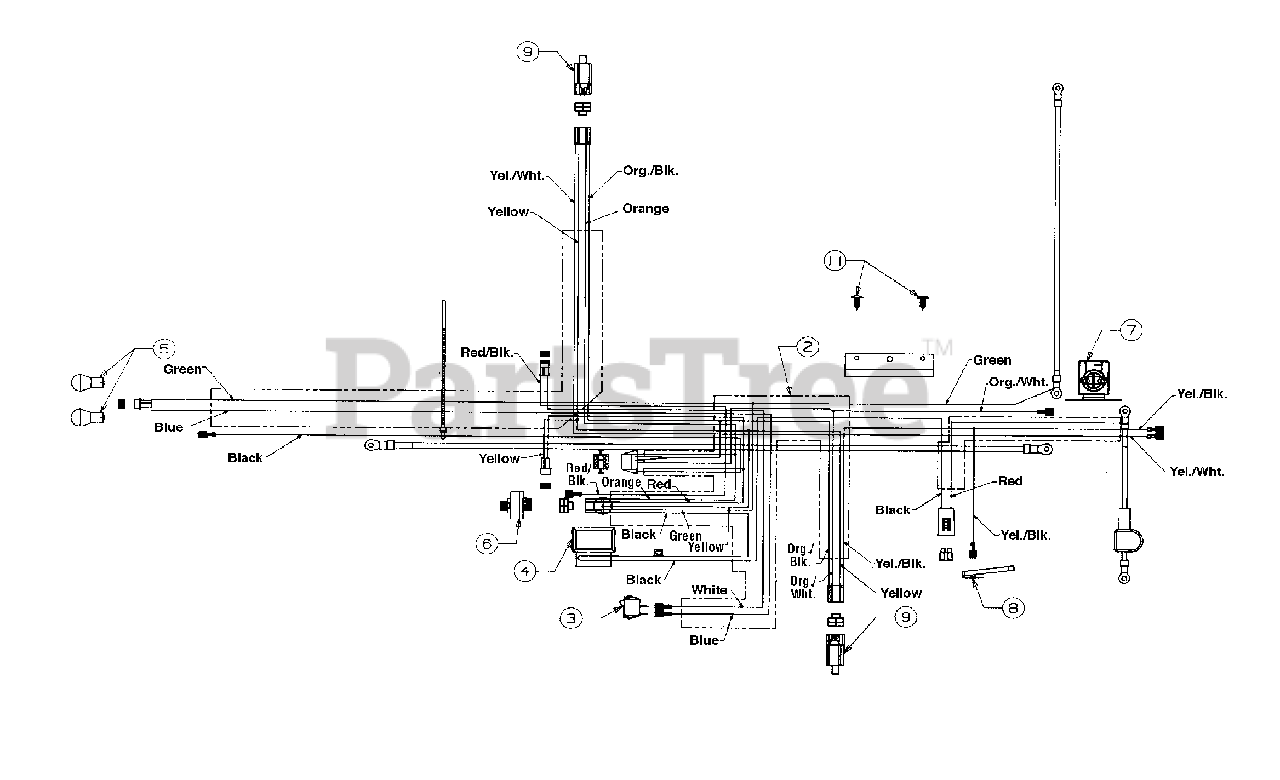

13AM675G062 - Yard Machines Lawn Tractor (1998) (Lowes) Electrical/Switches (Over Head Valve) Parts Diagram

Lawn Tractor

Electrical/Switches (Over Head Valve) Parts Diagram

  • Title

2

MTD 629-0305B

Wire Harness w/Light Switch and Amp
(Superseded to 929-0305E)

Note: Code N

$176.99

$

Usually ships in 3-6 days

0

MTD 629-0304B

Wire Harness w/o Light Switch and Amp
(Superseded to 929-0304E)

Note: Code N

$

$

Not available

3

MTD 725-0634

Light Switch
(Superseded to 925-0634)

Note: (Optional)

$16.99

$

In Stock, Qty 5

0

4

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: (Optional)

$28.99

$

In Stock, only 2 left!

0

5

MTD 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

6

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$40.99

$

In Stock, Qty 14

0

7

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

8

MTD 725-1643

Safety Switch (Reverse)

$9.99

$

In Stock, only 1 left!

0

9

MTD 725-1657A

Safety Switch
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

11

MTD 726-3046

Ratchet

$3.99

$

In Stock, Qty 20+

0
