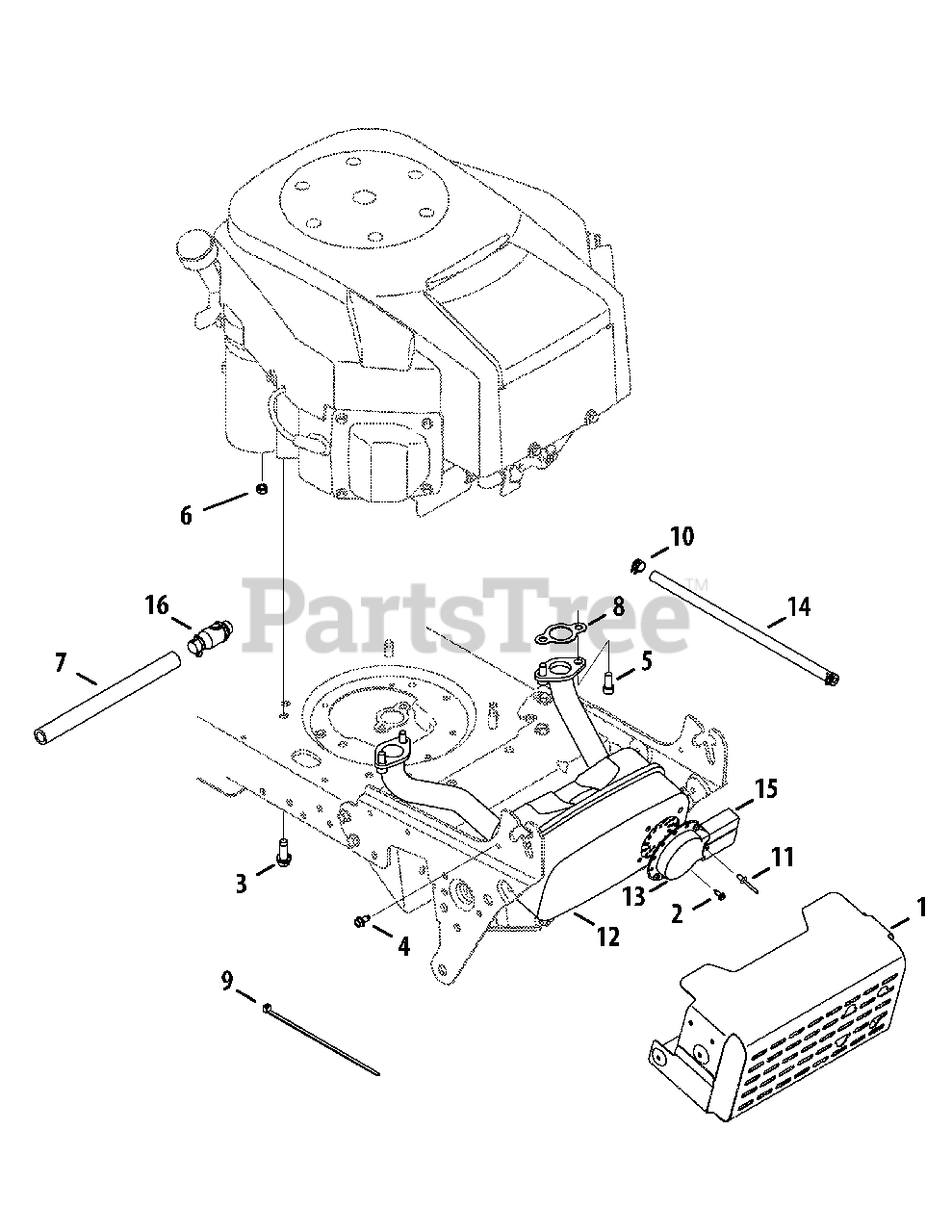

13AT915T004 - MTD Gold Lawn Tractor (2012) Engine Accessories, Twin Parts Diagram

Gold Lawn Tractor

Engine Accessories, Twin Parts Diagram

  • Title

1

MTD 683-04549-0637

Shield Ass’y, Muffler
(Superseded to 683-05460A-0637)

$74.99

$

Usually ships in 3-6 days

0

2

MTD 683-04561

Screw, Ab, #8-18, 0.500
(Superseded to 983-04561)

Variations

MTD 683-04561-0637

50" DECK SHELL (POWDER BLACK) - POWDER BLACK (0637)

$1100.99

$

Usually ships in 3-6 days

0

MTD 683-04561-4021

SHELL-50" DECK - CUB YELLOW 2 (4021)

$1183.99

$

Usually ships in 3-6 days

0

MTD 683-04561-4028

SHELL-50" DECK - SEARS YELLOW (4028)

$1183.99

$

Usually ships in 3-6 days

0

MTD 683-04561-0665

SHELL-50" DECK - YARDMAN GREEN (0665)

$

$

Not available

$957.99

$

Usually ships in 3-6 days

0

3

MTD 710-04683

Screw, Self-tapping, 3/8-16x1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 15

0

4

MTD 710-0599

Screw, Self-tapping, 1/4-20x0.500

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Screw, Socket Head, 5/16-18x.750

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

7

MTD 751-3141-14

Hose, Extension, Oil Drain

$11.99

$

In Stock, Qty 20+

0

8

MTD 721-0460

Gasket, Exhaust, Briggs
(Superseded to 721P0460)

$6.49

$

In Stock, only 2 left!

0

9

MTD 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 4 left!

0

10

MTD 726-0205

Clamp, Hose, .490 Dia.

$3.99

$

In Stock, Qty 20+

0

11

MTD 728-04000

Rivet, Pop, .188 Dia x .300

$6.49

$

In Stock, Qty 10

0

12

MTD 751-10528A

Muffler, Briggs Twin
(Superseded to 951-10528B)

$149.99

$

Usually ships in 3-6 days

0

13

MTD 751-0564B

Deflector, Muffler

$12.99

$

In Stock, Qty 20+

0

14

MTD 751-10349

Hose, Fuel, Low Permeation, 1/4

$

$

Not available

15

MTD 751-10353

Deflector, Muffler, Long
(Superseded to 751-11053B)

$4.99

$

In Stock, Qty 18

0

16

MTD 951-10517A

Drain, Oil

$22.99

$

In Stock, Qty 20+

0
