13BC762F000 - Yard Machines Lawn Tractor (2016) Deck Lift Parts Diagram
Lawn Tractor

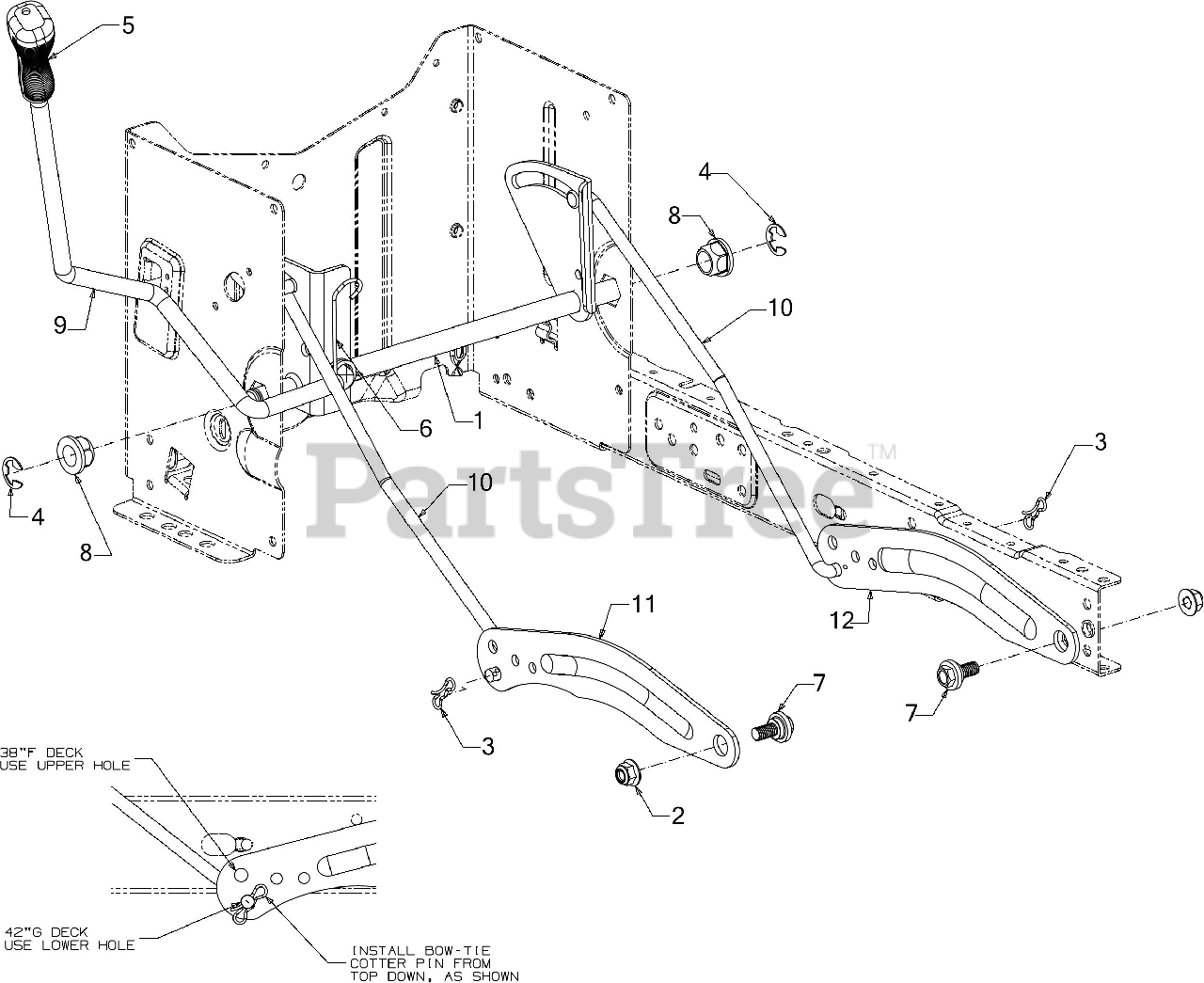

Deck Lift Parts Diagram
MTD 683-04155A-0637
LIFT SHAFT ASSEMBLY
$55.99
$
In Stock, only 1 left!
MTD 712-04065
NUT
$3.99
$
In Stock, Qty 20+
MTD 714-04040
BOW TIE COTTER PIN 1/4-5/16
$1.49
$
In Stock, Qty 20+
MTD 716-0106A
E-RING
$5.49
$
In Stock, Qty 14
MTD 720-0311
HANDLE GRIP
$15.99
$
In Stock, only 4 left!
MTD 732-04225
TORSION SPRING
$12.99
$
In Stock, only 1 left!
MTD 738-04130A
SHOULDER SCREW .625X.165X3/8-16
$9.49
$
In Stock, Qty 13
MTD 941-0225
FLANGE BEARING
$7.49
$
In Stock, Qty 20+
MTD 747-04282
DECK LIFT HANDLE
$35.99
$
Usually ships in 3-6 days
MTD 747-04393
LIFT ROD
$23.99
$
In Stock, Qty 8
MTD 783-04494C-0637
DECK LIFT ARM (RH)
$21.99
$
In Stock, only 1 left!
MTD 783-04711C-0637
DECK LIFT ARM (LH)
$24.99
$
Usually ships in 3-6 days
