1405 (13A-145F100) - Cub Cadet Garden Tractor Flywheel, Magneto & Alternator Parts Diagram

Garden Tractor

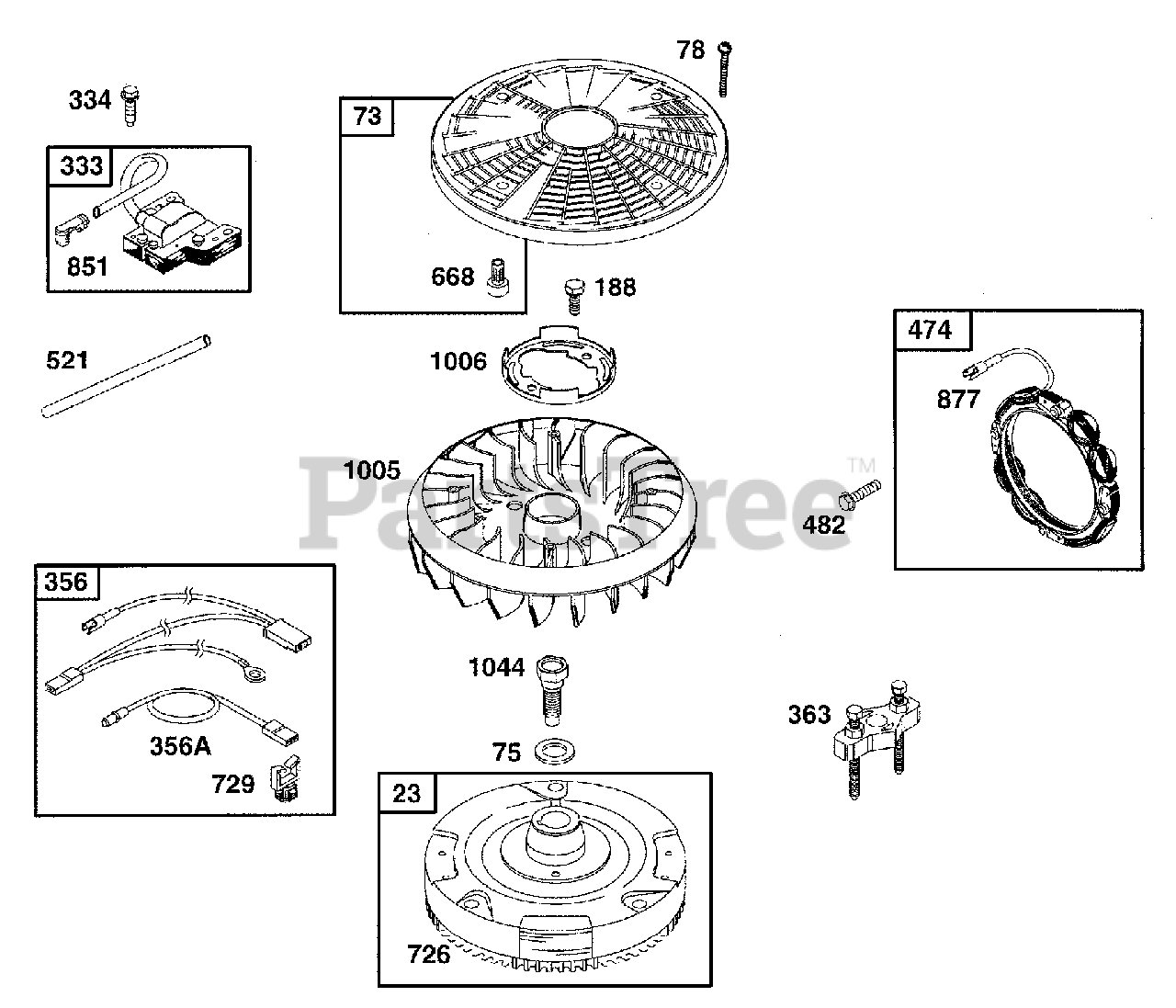

Flywheel, Magneto & Alternator Parts Diagram

  • Title
23

Cub Cadet BS-492326

Flywheel
(Superseded to BS-693557)

$

$

Not available

73

Cub Cadet BS-494439

Rotating Screen

$53.99

$

In Stock, only 1 left!

0

75

Cub Cadet BS-225136

Flywheel Washer

$

$

Not available

78

Cub Cadet BS-94821

Torx Screw
(Superseded to BS-691674)

$2.49

$

Usually ships in 2-12 days

0

188

Cub Cadet BS-94627

Hex Screw

$

$

Not available

333

Cub Cadet BS-495859

Magneto Armature
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-94731

Hex Screw

$

$

Not available

356

Cub Cadet BS-497708

Wiring Harness
(Superseded to BS-692037)

$35.99

$

In Stock, only 1 left!

0

356A

$

$

Not available

363

Cub Cadet BS-19203

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

474

Cub Cadet BS-392595

Alternator
(Superseded to BS-592829)

$102.99

$

In Stock, only 3 left!

0

482

Cub Cadet BS-93621

Hex Screw
(Superseded to BS-691183)

$

$

Not available

521

Cub Cadet BS-272699

Cable Shielding

$

$

Not available

668

Cub Cadet BS-805402

Spacer
(Superseded to BS-691500)

$7.49

$

In Stock, only 1 left!

0

726

Cub Cadet BS-399676

Ring Gear
(Superseded to BS-696537)

Note: (Includes mounting hardware)

$50.99

$

Usually ships in 2-12 days

0

729

$

$

Not available

851

Cub Cadet BS-493880

Cable Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

877

Cub Cadet BS-393537

Alternator Wire

$

$

Not available

1005

Cub Cadet BS-281400

Flywheel Fan
(Superseded to BS-695493)

$92.99

$

Usually ships in 2-12 days

0

1006

Cub Cadet BS-224413

Fan Retainer
(Superseded to BS-690452)

$10.99

$

Usually ships in 2-12 days

0

1044

Cub Cadet BS-94673

Shoulder Screw
(Superseded to BS-698139)

$5.99

$

In Stock, only 4 left!

0
