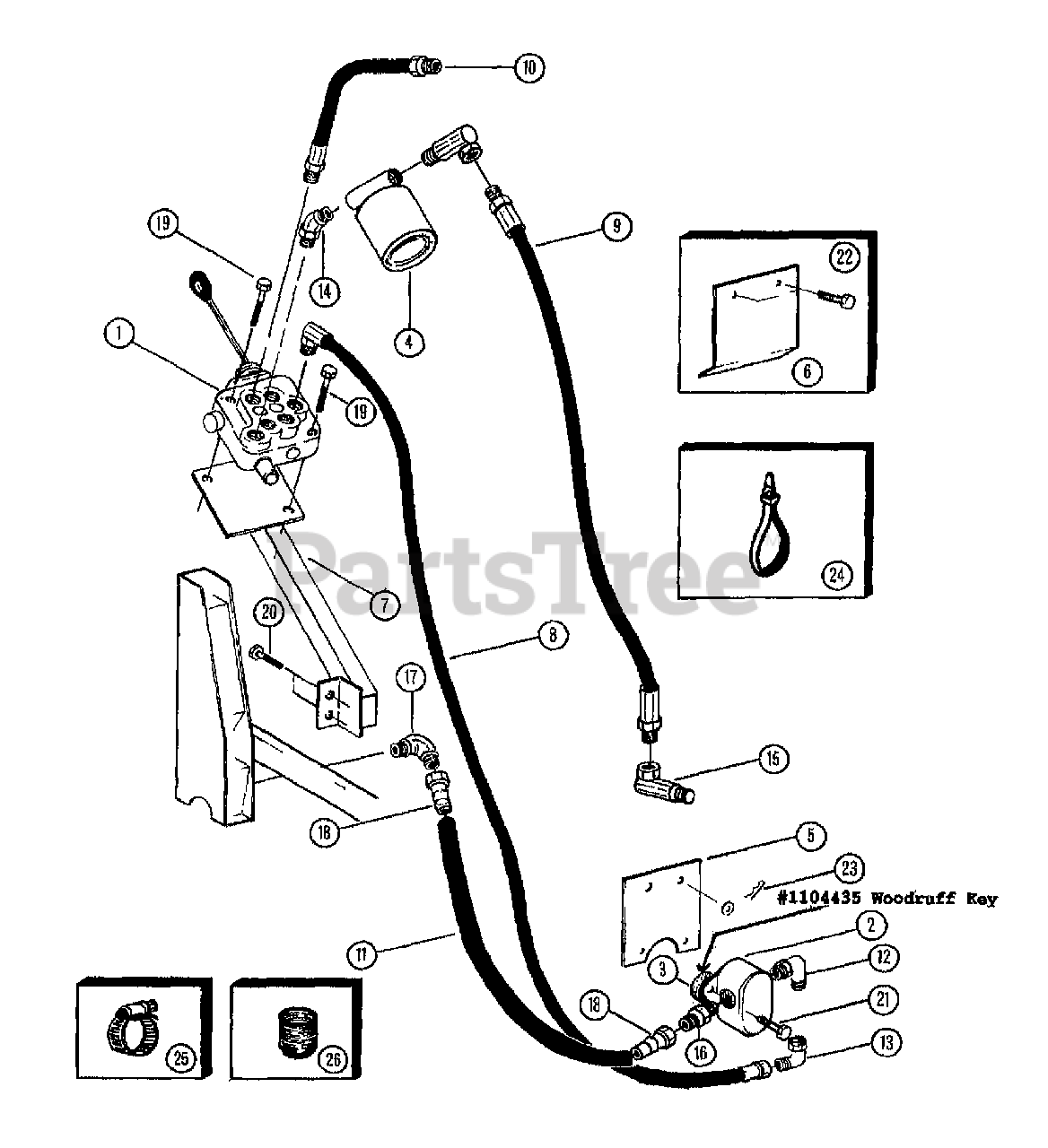

14066 - Troy-Bilt Loader Attachment (SN: 140660100101 - 140660199999) HYDRAULIC SYSTEM Parts Diagram

Loader Attachment

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Troy-Bilt 1814163

ASSM-VALVE HYDRAULIC

$

$

Currently unavailable

2

Troy-Bilt 1814251

PUMP

$

$

Currently unavailable

3

Troy-Bilt 1814252

COUPLER

$

$

Currently unavailable

4

MTD 1814253

FILTER-OIL

$

$

Not available

5

Troy-Bilt 1814254

PAD

$

$

Currently unavailable

6

Troy-Bilt 1814255

GUARD

$

$

Currently unavailable

7

Troy-Bilt 1814256

STAND-VALVE

$

$

Currently unavailable

8

Troy-Bilt 1814257

HOSE-HYD

$

$

Currently unavailable

9

Troy-Bilt 1814258

HOSE-HYD

$

$

Currently unavailable

10

Troy-Bilt 1814259

HOSE-HYD

$

$

Currently unavailable

11

Troy-Bilt 1814260

HOSE-HYD

$

$

Currently unavailable

12

Troy-Bilt 1814261

FITTING-ADAPTOR

$

$

Currently unavailable

13

MTD 1814262

FITTING-ADAPTOR 90

$

$

Not available

14

Troy-Bilt 1814263

FITTING-ADAPTOR

$

$

Currently unavailable

15

MTD 1814264

FITTING-ADAPTOR

$

$

Not available

16

MTD 1814265

FITTING-ADAPTOR

$

$

Not available

17

Troy-Bilt 1814266

ELBOW

$

$

Currently unavailable

18

MTD 1814267

HOSE-END

$

$

Not available

19

0

N/A

$

$

Not available

20

0

N/A

$

$

Not available

21

0

N/A

$

$

Not available

22

0

N/A

$

$

Not available

23

Troy-Bilt 1703011

CLIP-HAIRPIN .07 DIA
(Superseded to 914-0145)

$4.49

$

In Stock, Qty 20+

0

24

0

N/A

$

$

Not available

25

0

N/A

$

$

Not available

26

0

N/A

$

$

Not available

?27

Troy-Bilt 1814268

SINGLE LEVER CONTROL

$

$

Currently unavailable

0

N/A

$

$

Not available

MTD 1104435

KEY-WOODRUFF 1/8 X 5/8

$

$

Not available
