14071 - Troy-Bilt Sleeve Hitch Attachment (SN: 140710100101 & Above) SLEEVE HITCH ATTACHMENT Parts Diagram

Sleeve Hitch Attachment

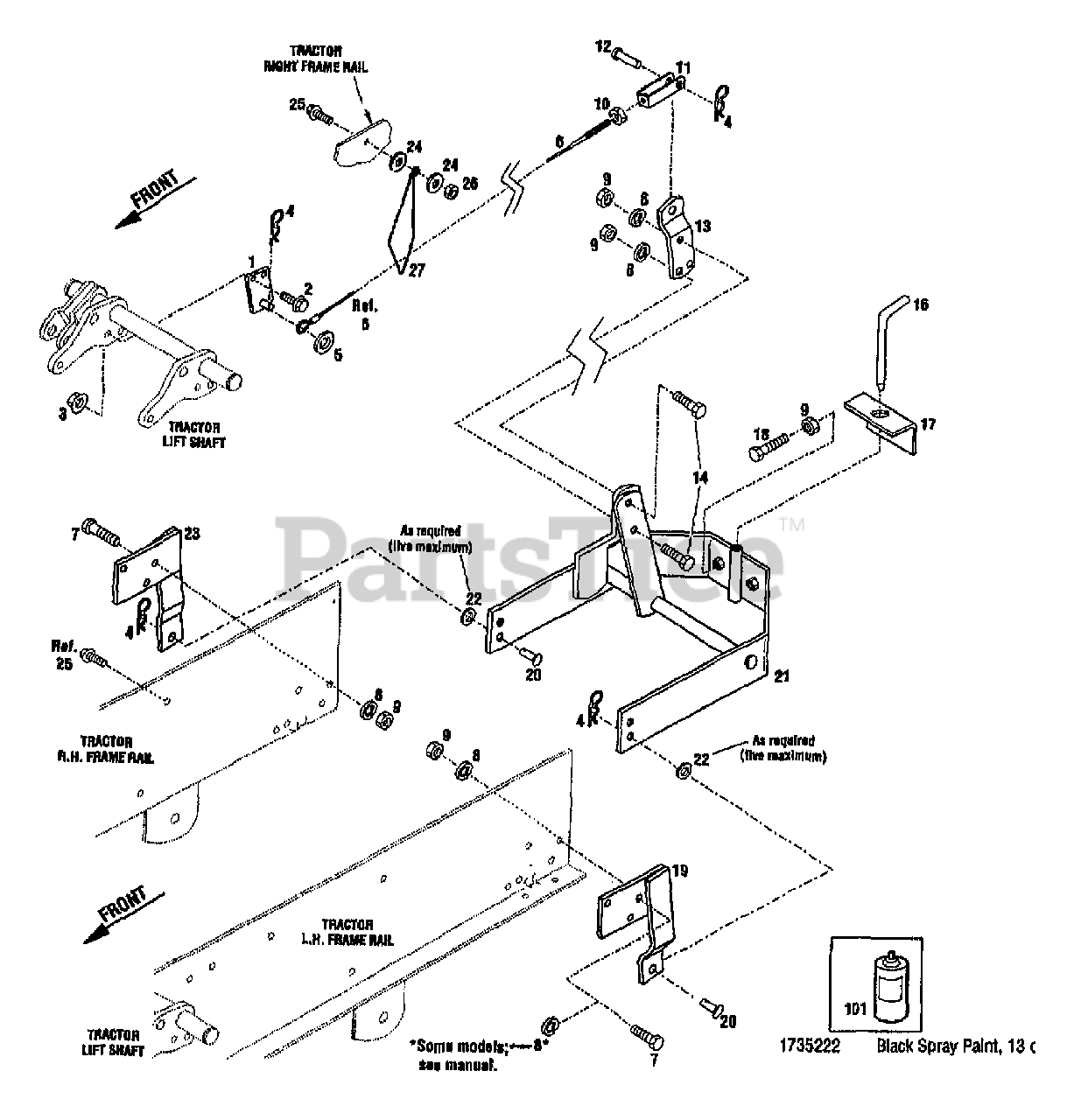

SLEEVE HITCH ATTACHMENT Parts Diagram

  • Title

1

Troy-Bilt 1744936001

ARM-LIFT

$

$

Currently unavailable

2

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

Usually ships in 3-6 days

0

4

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

5

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1744967

CABLE-LIFT

$

$

Currently unavailable

7

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1186233

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

10

MTD 1186259

NUT-HEX/JAM 3/8-16

$

$

Not available

11

MTD 1734192

YOKE-CABLE

$

$

Not available

12

Troy-Bilt 1730851

PIN-CLEVIS .5X1.25

$

$

Not available

13

Troy-Bilt 1745384001

ARM-LIFT

$

$

Currently unavailable

14

Troy-Bilt 1100064

SCR-HH 1/2-13X1.5 G5 ZP
(Superseded to 710-3181)

$6.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 1730809

PIN-HITCH .625 DIA

$

$

Currently unavailable

17

Troy-Bilt 1731147001

PLATE-STABLIZER

$

$

Currently unavailable

18

MTD 1731412

SCR-HH 1/2-13 X 2.00

$

$

Not available

19

MTD 1733854001

ARM-HITCH LH

$

$

Not available

20

MTD 1724639

PIN-CLEVIS

$

$

Not available

21

Troy-Bilt 1734952001

HITCH-SLEEVE F/GARDEN TRAC

$

$

Currently unavailable

22

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$3.99

$

In Stock, Qty 20+

0

23

MTD 1733855001

ASSM-ARM HITCH RH

$

$

Not available

24

MTD 1708755

WASHER-.875X.390X.134

$

$

Not available

25

MTD 1186348

SCR-HFLK 3/8-16X1.25 ZP

$

$

Not available

26

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

27

MTD 1731956

GUIDE-CABLE

$

$

Not available

101

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$

$

Not available
