141 LE - Husqvarna Chainsaw (2008-06) FUEL TANK & HANDLE Parts Diagram

Chainsaw

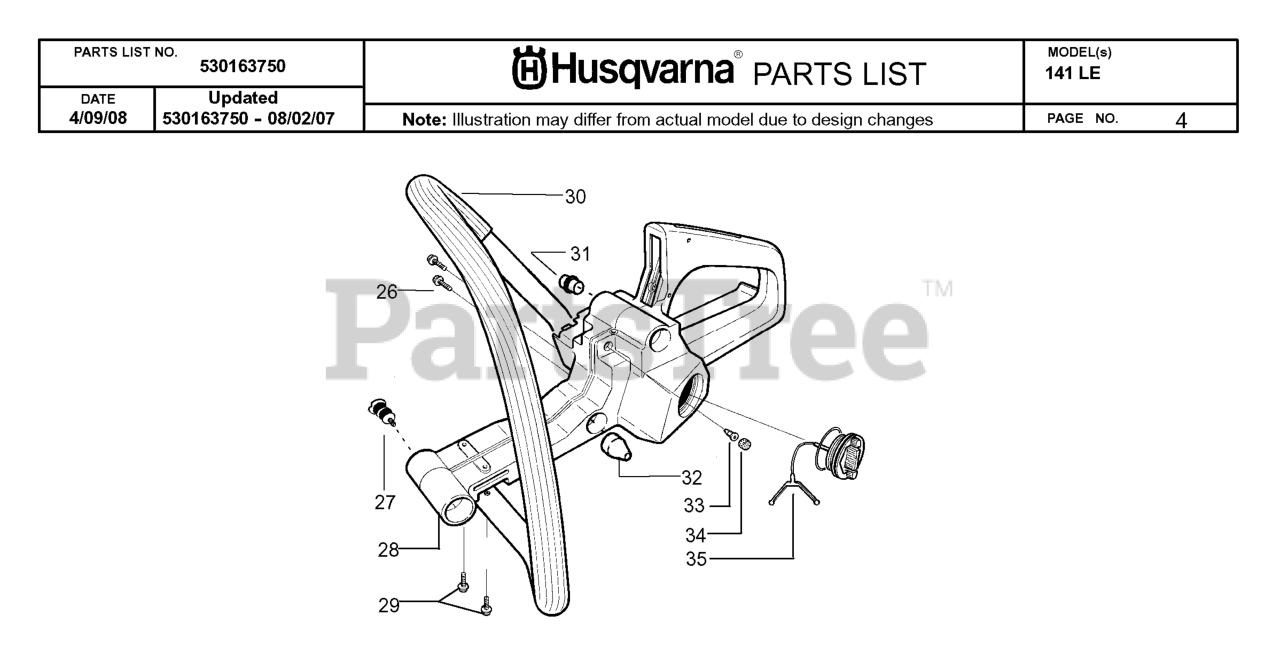

FUEL TANK & HANDLE Parts Diagram

  • Title

35

Husqvarna 530071266

FUEL CAP KIT

$

$

Not available

7

Husqvarna 530047599

FAN HOUSING ASSEMBLY
(Superseded to 530049811)

$

$

Not available

23

Husqvarna 530069587

THROTTLE TRIGGER-KIT

$

$

Not available

5

Husqvarna 530069313

PULLEY 36/41

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 530029870

ISOLATOR

$12.99

$

In Stock, Qty 11

0

28

Husqvarna 530055613

TANK HANDLE ASSY

$

$

Not available

20

Husqvarna 530029863

THROTTLE ACTUATOR 36/41

$

$

Not available

26

Husqvarna 530015940

SCREW

$6.49

$

In Stock, Qty 9

0

25

Husqvarna 530014497

FUEL PICK-UP
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 530403257

LEAD WIRE ASSY

$

$

Not available

31

Husqvarna 530052439

FRONT HANDLE ISOLATOR

$4.99

$

In Stock, only 4 left!

0

4

Husqvarna 530016080

SCREW

$6.49

$

In Stock, Qty 11

0

6

Husqvarna 530015891

RETURN SPRING
(Superseded to 545008005)

$

$

Not available

30

Husqvarna 530049876

FRONT HANDLE
(Superseded to 530059981)

$26.99

$

In Stock, only 1 left!

0

12

Husqvarna 530015896

SCREW

$6.49

$

In Stock, Qty 13

0

1

Husqvarna 530150318

STARTER HANDLE GRAY

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 530015893

SCREW

$6.49

$

In Stock, Qty 20+

0

22

Husqvarna 530029861

TRIGGER SPRING 36/41

$6.49

$

In Stock, Qty 5

0

19

Husqvarna 530029869

THROTTLE SHAFT 36/41

$6.49

$

In Stock, Qty 16

0

10

Husqvarna 530058562

Decal - Fan Housing

$

$

Not available

2

Husqvarna 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 545121901

SCREW

$3.99

$

In Stock, Qty 5

0

32

Husqvarna 530029984

SHOCK MOUNT(X2) 36/41

$2.49

$

In Stock, Qty 12

0

29

Husqvarna 530015843

SCREW

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 530016071

NUT

$

$

Not available

13

Husqvarna 503717901

SWITCH ON/OFF

$17.99

$

In Stock, Qty 20+

0

18

Husqvarna 530039143

%IGNITION MODULE
(Superseded to 575803501)

$18.99

$

In Stock, Qty 20+

0

3

Husqvarna 530015920

SCREW

$6.49

$

In Stock, Qty 8

0

8

Husqvarna 530015892

SCREW,STRTR CVR 36/41

$6.49

$

In Stock, Qty 20+

0

34

Husqvarna 530038264

BRONZE PLUG

$6.49

$

In Stock, Qty 6

0

15

Husqvarna 530015127

WASHER-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 530029860

PIN,TRIGGER 36/41

$4.99

$

In Stock, Qty 9

0

24

Husqvarna 530069247

HOSE. FUEL

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 14

0

14

Husqvarna 530039147

ROTOR COMPL. 36/41
(Superseded to 575635502)

$17.99

$

In Stock, Qty 5

0
