14105 - Troy-Bilt Electric Lift Kit ELECTRIC LIFT KIT Parts Diagram

Electric Lift Kit

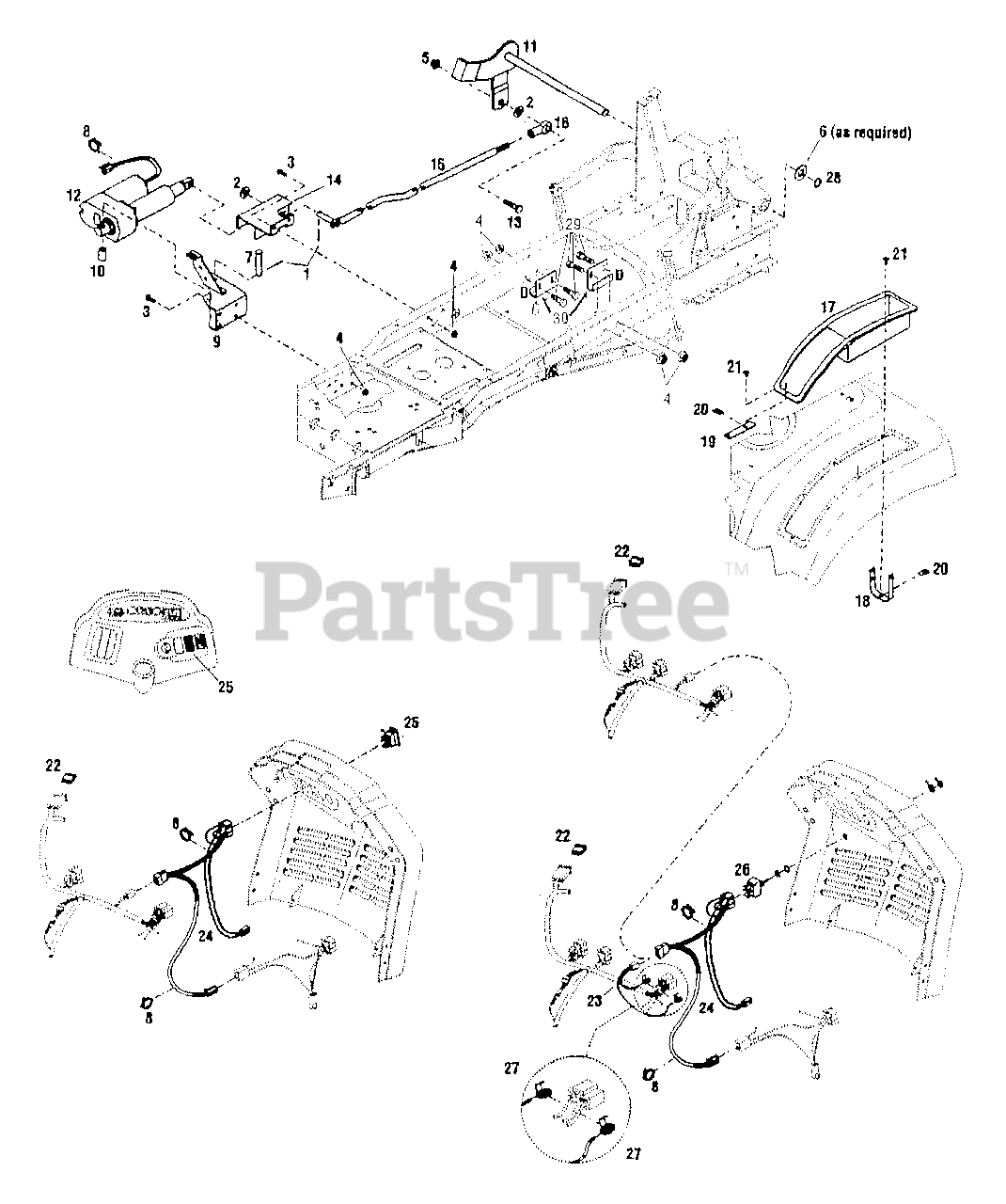

ELECTRIC LIFT KIT Parts Diagram

  • Title

1

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1186397

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1701447

WASHER-1.25X.765X.049

$3.99

$

In Stock, Qty 12

0

7

MTD 1706621

PIN-CLEVIS .5X2.75

$

$

Not available

8

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

9

MTD 1770688001

SUPPORT-FRONT

$

$

Not available

10

Troy-Bilt 1770694

SPACER

$

$

Currently unavailable

11

Troy-Bilt 1771674

PIVOT LIFT ARM ASSY.

$

$

Currently unavailable

12

Troy-Bilt 1771678

ACTUATOR

$

$

Currently unavailable

13

MTD 1771784

SCR-SPECIAL 1/2-13X1 1/2

$

$

Not available

14

Troy-Bilt 1771799001

SUPPORT-REAR

$

$

Currently unavailable

15

MTD 1771802

ROD-LIFT

$

$

Not available

16

MTD 1771814

ROD-END

$

$

Not available

17

MTD 1771873

UTILITY BOX

$

$

Not available

18

MTD 1772088

RETAINER-UTILITY BOX

$

$

Not available

19

MTD 1772156

RETAINER-UTILITY BOX

$

$

Not available

20

MTD 1772157

SPEED NUT-1/4-20

$

$

Not available

21

MTD 1772164

SCR-1/4-20X5/8

$

$

Not available

22

Troy-Bilt 1743516

FUSE-30 AMP
(Superseded to 725-1543)

$3.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1771843

ADAPTER HARNESS

$

$

Currently unavailable

24

Troy-Bilt 1771681

HARNESS-ACTUATOR

$

$

Currently unavailable

25

MTD 1771668

SWITCH-ROCKER

$

$

Not available

26

MTD 1771813

SWITCH-TOGGLE

$

$

Not available

27

MTD 1721038

CONNECTOR

$

$

Not available

28

0

RETAINING RING

$

$

Not available

29

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

30

MTD 1766086001

STOP-MOWER DECK

$

$

Not available

Troy-Bilt 1771836

ELEC. LIFT KIT

$

$

Currently unavailable
