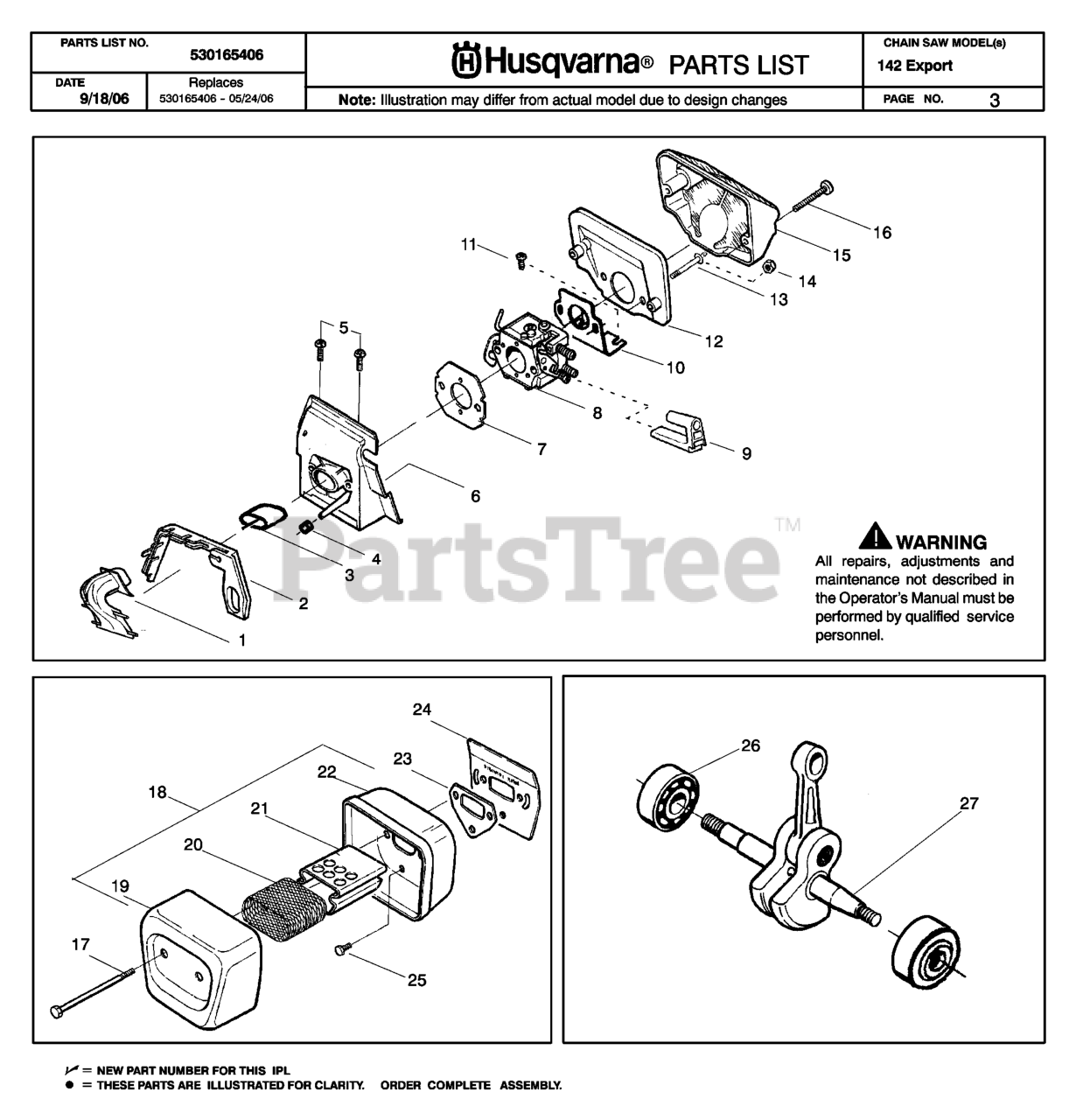

142 - Husqvarna Chainsaw (SN: 20070100001 - 20082299999) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

CARBURETOR & AIR FILTER Parts Diagram

  • Title

27

Husqvarna 530029794

CRANKSHAFT ASSY 36/41
(Superseded to 503920801)

$

$

Not available

8

Husqvarna 530071987

CARBURETOR W-29

$44.99

$

In Stock, Qty 14

0

22

Husqvarna 530037251

SILENCER BODY

$

$

Not available

24

Husqvarna 530037640

MUFFLER PLATE

$

$

Not available

6

Husqvarna 530037465

CARB ADAPTOR

$

$

Not available

15

Husqvarna 545057801

AIR FILTER - TOP

$

$

Not available

10

Husqvarna 530047767

PLATE

$

$

Not available

14

Husqvarna 530016008

NUT 5M

$2.23

$

In Stock, only 3 left!

0

5

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna 530069415

MUFFLER KIT

$37.99

$

In Stock, only 4 left!

0

7

Husqvarna 530019172

GSKT,CARB 36/41

$6.49

$

In Stock, Qty 20+

0

16

Husqvarna 530015899

SCREW

$6.49

$

In Stock, Qty 15

0

19

Husqvarna 530037254

SILENCER COVER

$12.99

$

In Stock, only 4 left!

0

1

Husqvarna 530029813

INTAKE HORN

$

$

Not available

25

Husqvarna 530015902

BOLT-MUFFLER(SUPPORT)

$4.99

$

In Stock, Qty 7

0

9

Husqvarna 530035587

GROMMET

$4.99

$

In Stock, Qty 8

0

12

Husqvarna 530036582

AIR FILTER (BOTTOM)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530029810

SPARK ARRESTOR 36/41

$8.99

$

In Stock, Qty 6

0

26

Husqvarna 530056363

BEARING & SEAL ASSEMBLY

$18.99

$

In Stock, Qty 7

0

23

Husqvarna 530019205

GASKET

$6.49

$

In Stock, only 4 left!

0

2

Husqvarna 530019203

TURBO CLEAN SEAL

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 530015896

SCREW

$6.49

$

In Stock, Qty 13

0

21

Husqvarna 530037246

FLAME PROTECTOR

$6.49

$

In Stock, Qty 5

0

4

Husqvarna 530053435

IMPULSE PIPE

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 530029814

INTAKE PIPE

$13.99

$

In Stock, Qty 17

0

13

Husqvarna 530015968

STUD-CARBURETOR

$

$

Not available

17

Husqvarna 530016044

BOLT

$6.49

$

In Stock, Qty 20+

0
