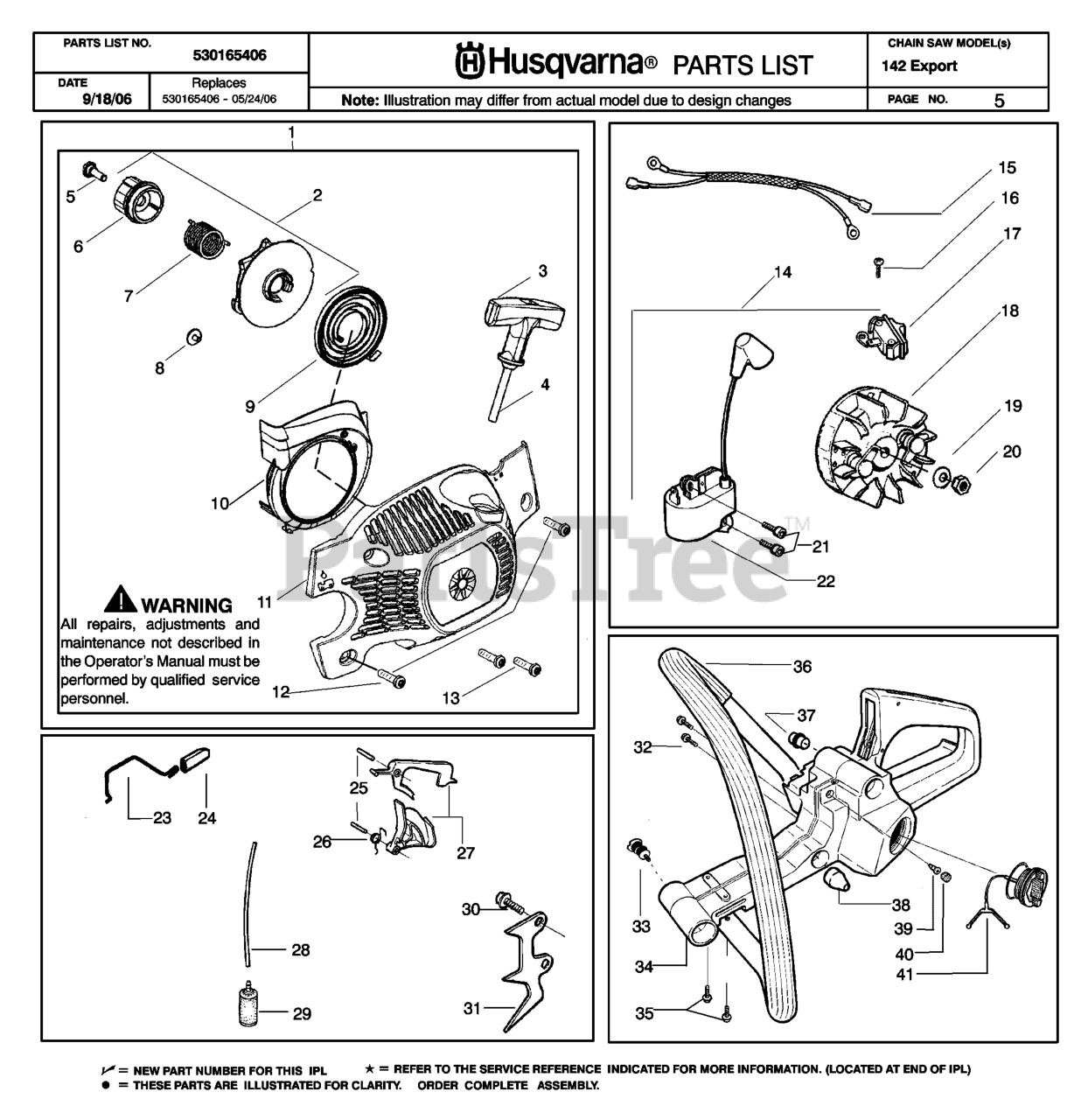

142 - Husqvarna Chainsaw (SN: 20070100001 - 20082299999) STARTER Parts Diagram

Chainsaw

STARTER Parts Diagram

  • Title

36

Husqvarna 530059961

HANDLE FRONT

$26.99

$

In Stock, only 1 left!

0

41

Husqvarna 530071266

FUEL CAP KIT

$

$

Not available

10

Husqvarna 530059959

BAFFLE AIR

$

$

Not available

1

Husqvarna 530071968

KIT FAN HSG & STARTER EPS

$

$

Not available

8

Husqvarna 530016080

SCREW

$6.49

$

In Stock, Qty 11

0

18

Husqvarna 530059637

FLYWHEEL ASSY

$

$

Not available

25

Husqvarna 530029860

PIN,TRIGGER 36/41

$4.99

$

In Stock, Qty 9

0

7

Husqvarna 530021180

SPRING EPS

$6.49

$

In Stock, only 4 left!

0

12

Husqvarna 530015893

SCREW

$6.49

$

In Stock, Qty 20+

0

6

Husqvarna 530059677

HUB STARTER EPS

$9.99

$

In Stock, Qty 9

0

3

Husqvarna 530150318

STARTER HANDLE GRAY

$6.49

$

In Stock, Qty 20+

0

34

Husqvarna 530052446

TANK ASSY

$

$

Not available

21

Husqvarna 545003902

SCREW

$4.99

$

In Stock, Qty 7

0

22

Husqvarna 530039239

IGNITION MODULE
(Superseded to 545063901)

$

$

Not available

32

Husqvarna 530015940

SCREW

$6.49

$

In Stock, Qty 9

0

28

Husqvarna 530069247

HOSE. FUEL

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 530059958

HOUSING FAN W/ EYELET

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530016134

NUT-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 530029984

SHOCK MOUNT(X2) 36/41

$2.49

$

In Stock, Qty 12

0

17

Husqvarna 503717901

SWITCH ON/OFF

$17.99

$

In Stock, Qty 20+

0

31

Husqvarna 530014381

SPIKE 36/41

$9.99

$

In Stock, Qty 16

0

16

Husqvarna 530015896

SCREW

$6.49

$

In Stock, Qty 13

0

35

Husqvarna 530015843

SCREW

$6.49

$

In Stock, only 2 left!

0

39

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 14

0

19

Husqvarna 530015127

WASHER-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530403257

LEAD WIRE ASSY

$

$

Not available

24

Husqvarna 530029863

THROTTLE ACTUATOR 36/41

$

$

Not available

5

Husqvarna 530021179

SCREW SHOULDER

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 530016439

SCREW

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 530052439

FRONT HANDLE ISOLATOR

$4.99

$

In Stock, only 4 left!

0

26

Husqvarna 530029861

TRIGGER SPRING 36/41

$6.49

$

In Stock, Qty 5

0

4

Husqvarna 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 530042095

SPRING STARTER
(Superseded to 545008013)

$6.49

$

In Stock, Qty 5

0

2

Husqvarna 530071966

KIT EPS STARTER

$26.99

$

In Stock, Qty 12

0

40

Husqvarna 530038264

BRONZE PLUG

$6.49

$

In Stock, Qty 6

0

13

Husqvarna 530015892

SCREW,STRTR CVR 36/41

$6.49

$

In Stock, Qty 20+

0

29

Husqvarna 530014497

FUEL PICK-UP
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 530069587

THROTTLE TRIGGER-KIT

$

$

Not available

23

Husqvarna 530029869

THROTTLE SHAFT 36/41

$6.49

$

In Stock, Qty 16

0

14

Husqvarna 530071967

KIT EPS IGNITION

$72.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530029870

ISOLATOR

$12.99

$

In Stock, Qty 11

0
