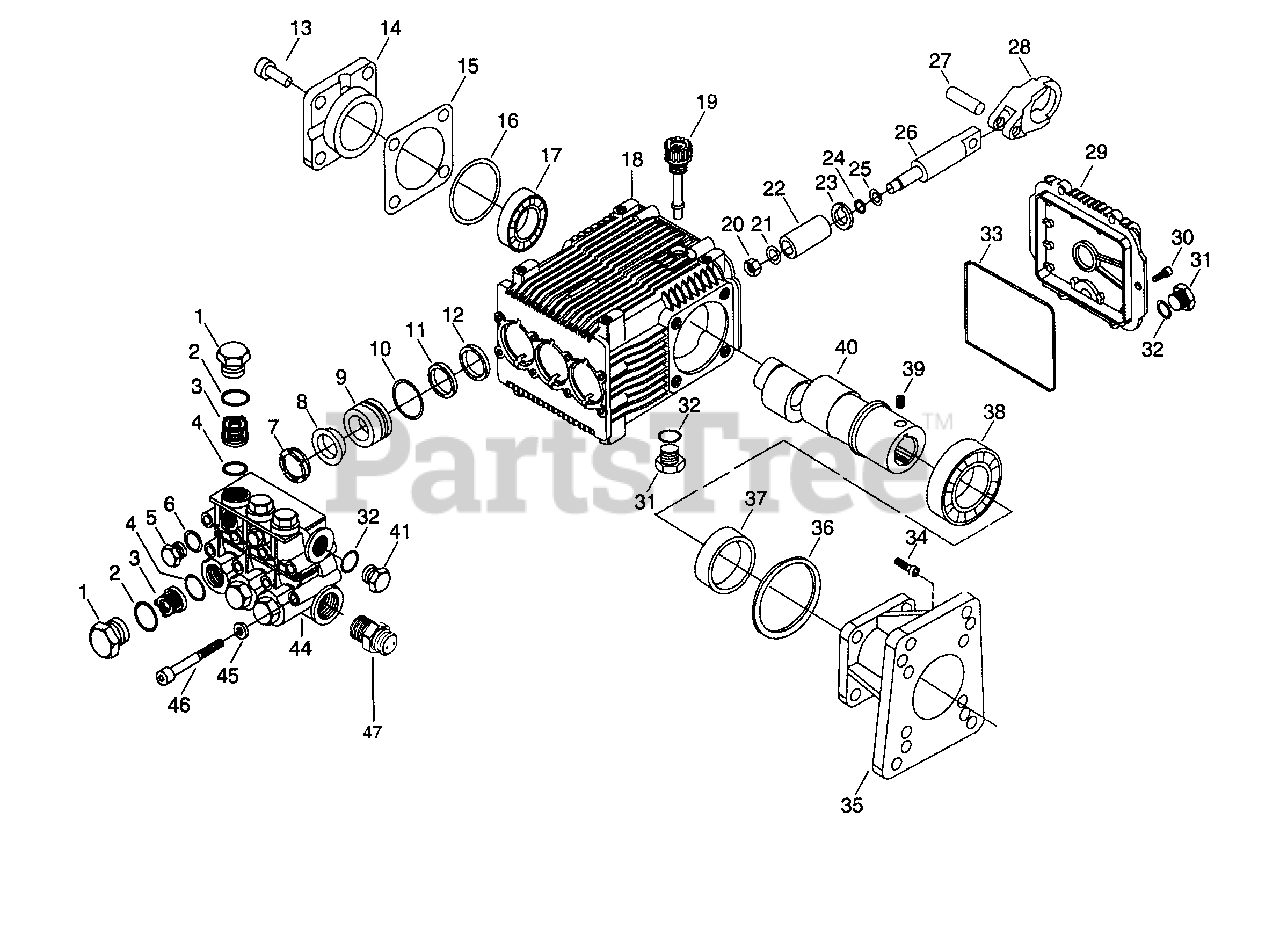

1420-0 - Generac 3,500 PSI Pressure Washer Pump Parts Diagram

3,500 PSI Pressure Washer

Pump Parts Diagram

  • Title

Briggs & Stratton 187263

Complete Pump Assy

Note: (See "Unloader" Illustration and Parts List)

$

$

Currently unavailable

1

Briggs & Stratton 101B2327

Plug
(Superseded to 101B2327GS)

$70.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 100B2327

O-Ring

$

$

Currently unavailable

3

Briggs & Stratton 102B2327

Valve
(Superseded to 102B2327GS)

$27.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 103B2327

O-Ring

$

$

Currently unavailable

5

Briggs & Stratton 104B2327

Plug
(Superseded to 104B2327GS)

$24.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 105B2327

O-Ring

$

$

Currently unavailable

7

Briggs & Stratton 106B2327

Support Ring
(Superseded to 106B2327GS)

$19.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 107B2327

Gasket
(Superseded to 107B2327GS)

$77.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 108B2327

Piston Guide
(Superseded to 108B2327GS)

$48.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 109B2327

O-Ring
(Superseded to 109B2327GS)

$5.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 110B2327

Gasket
(Superseded to 110B2327GS)

$47.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 186381

Seal
(Superseded to 186381GS)

$56.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 112B2327

Screw

$

$

Currently unavailable

14

Briggs & Stratton 113B2327

Bearing Support
(Superseded to 113B2327GS)

$79.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 132B2327

Shim
(Superseded to 132B2327GS)

$15.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 114B2327

O-Ring
(Superseded to 10887628PGS)

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 186382

Bearing
(Superseded to 186382GS)

$82.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 186383

Pump Housing
(Superseded to 186383GS)

$645.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 117B2327

Oil Cap

$

$

Currently unavailable

20

Briggs & Stratton 118B2327

Nut
(Superseded to 118B2327GS)

$8.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 119B2327

Washer
(Superseded to 119B2327GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 120B2327

Piston
(Superseded to 120B2327GS)

$131.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 121B2327

Spacer
(Superseded to 121B2327GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 122B2327

O-Ring

$

$

Currently unavailable

25

Briggs & Stratton 161B2327

Ring

$

$

Currently unavailable

26

Briggs & Stratton 123B2327

Piston Guide
(Superseded to 123B2327GS)

$142.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 124B2327

Piston Pin
(Superseded to 124B2327GS)

$136.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 186384

Con Rod
(Superseded to 186384GS)

$216.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 118B2126

Cover
(Superseded to 118B2126GS)

$83.99

$

Usually ships in 2-12 days

0

30

Screw

$

$

Not available

31

Briggs & Stratton 186385

Plug
(Superseded to 203034GS)

$14.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 134B2327

O-Ring

$

$

Currently unavailable

33

Briggs & Stratton 116B2126

O-Ring
(Superseded to 116B2126GS)

$6.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 142B2126

Screw

$

$

Currently unavailable

35

Briggs & Stratton 150B2126

Flange
(Superseded to 150B2126GS)

$182.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 139B1410

O-Ring
(Superseded to 139B1410GS)

$5.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 138B1410

Seal
(Superseded to 138B1410GS)

$59.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 137B1410

Bearing
(Superseded to 137B1410GS)

$148.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 152B2126

Grub Screw
(Superseded to 152B2126GS)

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 186386

Shaft
(Superseded to 186386GS)

$307.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 136B2327

Plug
(Superseded to 136B2327GS)

$25.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 139B2327

Pump Head
(Superseded to 139B2327GS)

$683.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 159B2327

Washer
(Superseded to 159B2327GS)

$3.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 140B2327

Screw
(Superseded to 140B2327GS)

$6.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B1554

Thermal Relief Valve
(Superseded to 195016GS)

$25.99

$

In Stock, only 1 left!

0
