1448H - MTD Pro Walk-Behind Mower Standard Engine Deck Assembly Hydro Parts Diagram

Pro Walk-Behind Mower

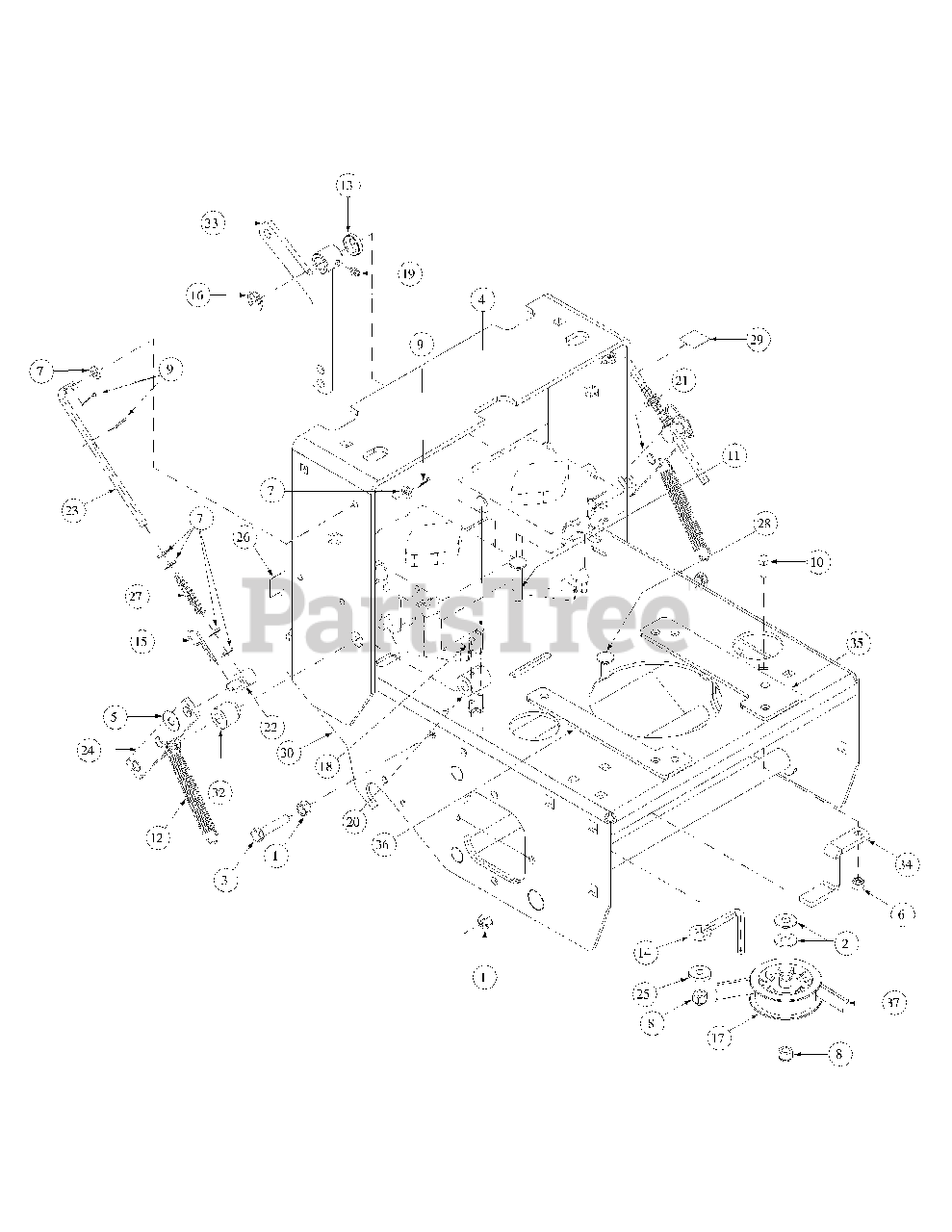

Standard Engine Deck Assembly Hydro Parts Diagram

  • Title

1

MTD 912-3017

Nut, Hex, 3/8-16 Grade C
(Superseded to 712-3017)

$3.99

$

In Stock, Qty 20+

0

2

MTD 00006168

Flat Washer, USS 3/8 Zinc
(Superseded to 936-3015)

$3.99

$

In Stock, only 4 left!

0

3

MTD 00008495

Cap Screw, 3/8-16 x 1-3/4" Grade 5

$6.49

$

In Stock, Qty 9

0

4

MTD 00011448

Cap Screw, Square Head Set, 1/4-20

$

$

Not available

5

MTD 00012158

Flat Washer, 3/8, SAE, Zinc/Yellow

$4.49

$

In Stock, Qty 10

0

6

MTD 00012165

Nut, 5/16-18, Nylock

$4.49

$

In Stock, only 1 left!

0

7

MTD 00012169

Flat Washer, SAE Grade 8 5/16, Zinc

$4.49

$

In Stock, only 2 left!

0

8

MTD 712-04065

Nut, L, Nylon Insert, 3/8-16 Grade A

$3.99

$

In Stock, Qty 20+

0

9

MTD 00012204

Cotter Pin 3/32 x 3/4, Zinc

$

$

Not available

10

MTD 00013092

Cap Screw,Standard, 5/16-18 x 1.0, Grade 5
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

11

MTD 00014270

Carriage Bolt, 3/8-16 x 2 Grade 5
(Superseded to 710-04157)

$8.49

$

Usually ships in 3-6 days

0

12

MTD 00020816

Spring, Music Wire, LE-093G-9, Plated

$16.99

$

Usually ships in 3-6 days

0

13

MTD 00021924

Spacer, Blade Nom, 5/8 ID 1/4 Thick

$

$

Not available

14

MTD 01005114

Guide, Traction Drive Belt

$12.99

$

Usually ships in 3-6 days

0

15

MTD 00021956

Pin, Hair 3/8"-1/2"
(Superseded to 914-04023)

$3.99

$

In Stock, Qty 20+

0

16

MTD 00021962

E-Ring, 5/8" #5113-62

$

$

Not available

17

MTD 02004558

Pulley, Flat Idler W/Adaptor

$21.99

$

In Stock, Qty 16

0

18

MTD 00034961

Screw, Cap, Square Head Set, 1/4-20

$

$

Not available

19

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16 STR

$4.49

$

In Stock, Qty 17

0

20

MTD 00070873

Coupling, Trunnion

$

$

Not available

21

MTD 00072046

Hydraulic Pump, Lever Assembly, Left Handle

$

$

Not available

22

MTD 00072274

Hydraulic, Pivot

$

$

Not available

23

MTD 00072627

Rod, Safety Spring

$

$

Not available

24

MTD 00072818

Hydraulic Pump, Lever Assembly, Right Hand

$

$

Not available

25

MTD 00083192

Washer, Idler
(Superseded to 736-0258)

$4.49

$

In Stock, only 2 left!

0

26

MTD 00090006

Decal, "Made In America"

$

$

Not available

27

MTD 00096275

Spring

$

$

Not available

28

MTD 01000643

Carriage Bolt, 3/8-16 x 2 Grade 5

$5.49

$

In Stock, Qty 10

0

29

MTD 01001035

Label, Mower, Warn, Open Belt Drive

$

$

Not available

30

MTD 01002025

Engine Base Assembly, Hydro

Note: NLA

$

$

Not available

32

MTD 01002669

Bushing, Pump Lever,

$

$

Not available

33

MTD 00021902

Bellcrank Clutch
(Superseded to 01009455)

$79.99

$

Usually ships in 3-6 days

0

34

MTD 01003146-0637

Belt Guide, Engine, 36/42/48

$

$

Not available

35

MTD 01003197

Spacer, Engine, Left Hand

Note: NLA

$

$

Not available

36

MTD 01003198

Spacer, Engine, Right Hand

Note: NLA

$

$

Not available

37

MTD 00023887

Belt

$51.99

$

In Stock, only 1 left!

0
