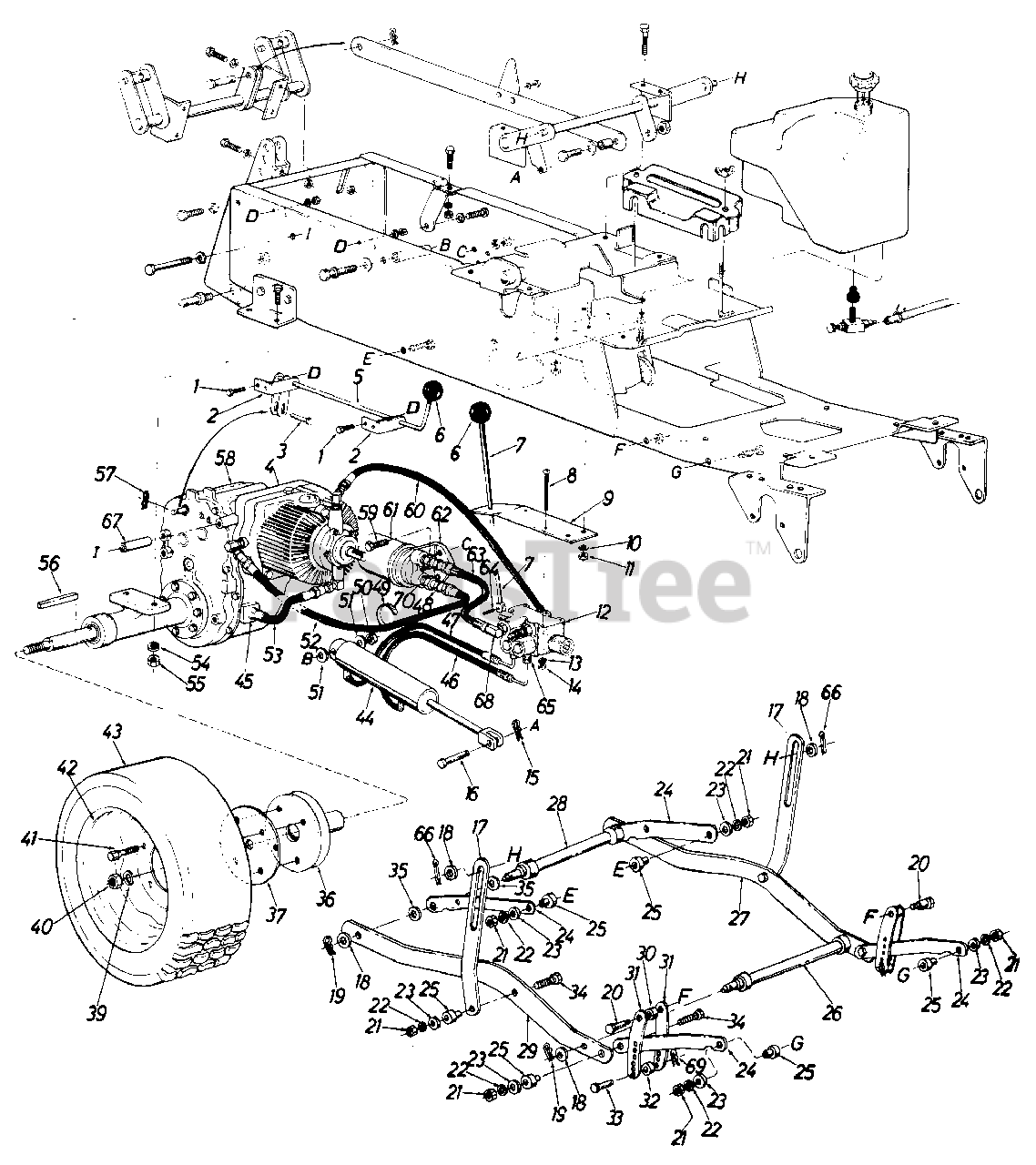

145-995-190 - White Outdoor Garden Tractor, 18hp (1985) Hydraulics & Linkage Parts Diagram

Garden Tractor, 18hp

Hydraulics & Linkage Parts Diagram

  • Title

1

MTD 710-0237

Hex Scr. 1/4-20 x .75" Lg.*

$4.49

$

Usually ships in 3-6 days

0

2

MTD 13524-0637

Hi-Lo Speed Control Brkt.

$

$

Not available

3

MTD 711-0684

Clevis Pin 1/4" Dia.

$

$

Not available

4

MTD 917-0344

Hydrostatic Pump Comp.

$

$

Not available

5

MTD 13532

Hi-Lo Control Handle Ass'y.

Note: NLA

$

$

Not available

6

MTD 931-0009A

Ball Knob

$14.99

$

In Stock, Qty 5

0

7

MTD 13531

Cylinder Control Handle Ass'y.

Note: NLA

$

$

Not available

8

MTD 710-0105

Truss Mach. Scr. 1/4-20 x 3.00" Lg.*

Note: NLA

$

$

Not available

9

MTD 13534

Valve Base Plate

Note: NLA

Variations

MTD 13534-0648

No Longer Available PLATE-BASE - TECH GRAY (0648)

$

$

Not available

$

$

10

MTD 936-0119

L-Wash 5/16" Scr.*

$4.99

$

In Stock, Qty 20+

0

11

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 927-0200

Valve Ass'y. Comp.

$

$

Not available

13

MTD 936-0329

L-Wash. 1/4" Scr.*

$4.49

$

In Stock, Qty 12

0

14

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

In Stock, only 2 left!

0

15

MTD 914-0101

Hairpin Cotter 1/2" Dia.
(Superseded to 714-0101)

$

$

Not available

16

MTD 711-0308

Clevis Pin 1/2" Dia.

$

$

Not available

17

MTD 13570

Deck Link

Note: NLA

Variations

MTD 13570-0637

No Longer Available LINK-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 736-0156

Fl-Wash. .62" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 13

0

19

MTD 714-0147

Hairpin Cotter

$4.99

$

In Stock, Qty 13

0

20

MTD 938-0148

Shld. Scr. .498 Dia. x .66

$16.99

$

Usually ships in 3-6 days

0

21

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

22

MTD 936-0217

L-Wash. 3/8" Scr. H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 13

0

23

MTD 736-0258

Fl-Wash. .38 I.D. x 1.00" O.D.

$4.49

$

In Stock, Qty 6

0

24

MTD 13151-0637

Lift Arm

$

$

Not available

25

MTD 748-0241

Shoulder Spacer

$

$

Not available

26

MTD 13729

Cross Shaft Ass'y. Front

Note: NLA

$

$

Currently unavailable

27

MTD 13139

Lift Arm Link

Note: NLA

Variations

MTD 13139-0637

No Longer Available LINK - POWDER BLACK (0637)

$

$

Not available

MTD 13139-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 13139-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

MTD 13728

Cross Shaft Ass'y. Rear

Note: NLA

$

$

Not available

29

MTD 13139

Lift Arm Link

Note: NLA

Variations

MTD 13139-0637

No Longer Available LINK - POWDER BLACK (0637)

$

$

Not available

MTD 13139-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 13139-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

30

MTD 711-0146

Collar.50" I.D. x 1.00" O.D. x .320 Thk.

$

$

Not available

31

MTD 13545-0637

Index Brkt.

$

$

Not available

32

MTD 911-0242

Spacer.38" I.D. x 1.00" O.D. x .320

$4.49

$

In Stock, Qty 11

0

33

MTD 711-0173

Clevis Pin 3/8" Dia.
(Superseded to 711-04722)

$6.99

$

In Stock, only 3 left!

0

34

MTD 710-0459A

Hex Scr. 3/8-24 x 1.50" Lg. Grade 5

$6.99

$

In Stock, Qty 10

0

35

MTD 936-0167

Fl-Wash. .62" I.D. x 1.25" O.D. x .020

$6.99

$

In Stock, Qty 7

0

36

MTD 13572

Rear Wheel Hub Ass'y.

Note: NLA

Variations

MTD 13572-0637

No Longer Available HUB ASM-W - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 13574A-0637

Hub Plate

$

$

Not available

39

MTD 936-0364

L-Wash. 3/4" Scr.*

$

$

Not available

40

MTD 912-0288

Hex Ins. L-Nut 3/4-16 Thd.

$

$

Not available

41

MTD 910-0470

Wheel Lug Bolt 1/2-20 x 1.50" Lg.

$

$

Not available

42

MTD 734-0935

Rear Wheel Rim Only

Note: NLA

Variations

MTD 734-0935-0499

No Longer Available WHEEL ASM - CUB BEIGE (0499)

$

$

Not available

MTD 734-0935-0662

No Longer Available WHEEL ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-0935-0674

No Longer Available WHEEL ASM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

43

MTD 734-0934

Rear Wheel Ass'y. Comp. 27 x 9.50

Note: NLA

Variations

MTD 734-0934-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

MTD 734-0934-0912

No Longer Available 911 Wheel - Dico Gray (0912)

$

$

Not available

MTD 734-0934-0941

No Longer Available WHL ASM 2 - Carlisle Yellow (0941)

$

$

Not available

MTD 734-0934-0942

No Longer Available WHEEL ASM - Dico Yellow (0942)

$

$

Not available

$

$

43

MTD 734-0397

Tire Only 27 x 9.50

Note: NLA

Variations

MTD 734-0397-0901

No Longer Available - Carlisle (0901)

$

$

Not available

MTD 734-0397-0902

No Longer Available TIRE-TUBEL - Dico (0902)

$

$

Not available

$

$

43

MTD 734-0936

Air Valve

Note: NLA

$

$

Currently unavailable

44

MTD 727-0159

Hydraulic Cylinder

Note: NLA

$

$

Not available

45

MTD 727-0220

7/8-14 UNF-2A Thd. 5/8 Tube Fitting

$

$

Not available

46

MTD 727-0219

Valve to Cylinder Hose 20" Lg .

$

$

Not available

47

MTD 727-0219

Valve to Cylinder Hose 20" Lg.

$

$

Not available

48

MTD 727-0222

Bushing Reducer 1/2-14 NPTF to 3/8-18 NPTF

Note: NLA

$

$

Not available

49

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 4 left!

0

50

MTD 712-3029

Hex Jam Nut 1/2-20 Thd.

$6.99

$

In Stock, Qty 6

0

51

MTD 936-0179

Fl-Wash. .50" I.D. x 1.25 O.D.
(Superseded to 736-0179)

$4.99

$

In Stock, Qty 20+

0

52

MTD 727-0217

Filter Return Hose 24" Lg.

Note: NLA

$

$

Not available

53

MTD 749-0309

Pu mp Tu be Ass'y.

Note: NLA

$

$

Not available

54

MTD 936-0217

L-Wash. 3/8" Scr.*
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 13

0

55

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

56

MTD 914-0114

Sq Key 1/4 X 1/4 X 2.00*

$4.49

$

In Stock, only 1 left!

0

57

MTD 914-0104

Hairpin Cotter 1/4" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

58

Peerless Transaxle

Note: (See Breakdown)

$

$

Not available

59

MTD 710-0528

Hex Scr. 5/16-18 x 1.25"*

$4.49

$

In Stock, Qty 20+

0

60

MTD 727-0167

Pump to Valve Hose

Note: NLA

$

$

Not available

61

MTD 727-0162

Fram Filter Ass'y. PH-16

Note: NLA

$

$

Not available

62

MTD 727-0163

Filter Base

Note: NLA

$

$

Not available

63

MTD 727-0218

Valve to Filter Hose 8.38" Lg.

Note: NLA

$

$

Not available

64

MTD 715-0129

Spring Pin Spiral 1/8" Dia. x.81" Lg.

$4.99

$

In Stock, only 1 left!

0

65

MTD 727-0187

Flare Adapter

Note: NLA

$

$

Not available

66

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

67

MTD 750-0417

Spacer

Note: NLA

$

$

Not available

68

MTD 727-0175

Adapter 9/16-18 to 9/16-18

Note: NLA

$

$

Not available

69

MTD 914-0145

Hairpin Cotter
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

70

MTD 727-0222

Reducer 1/2-3/8 NPT

Note: NLA

$

$

Not available
