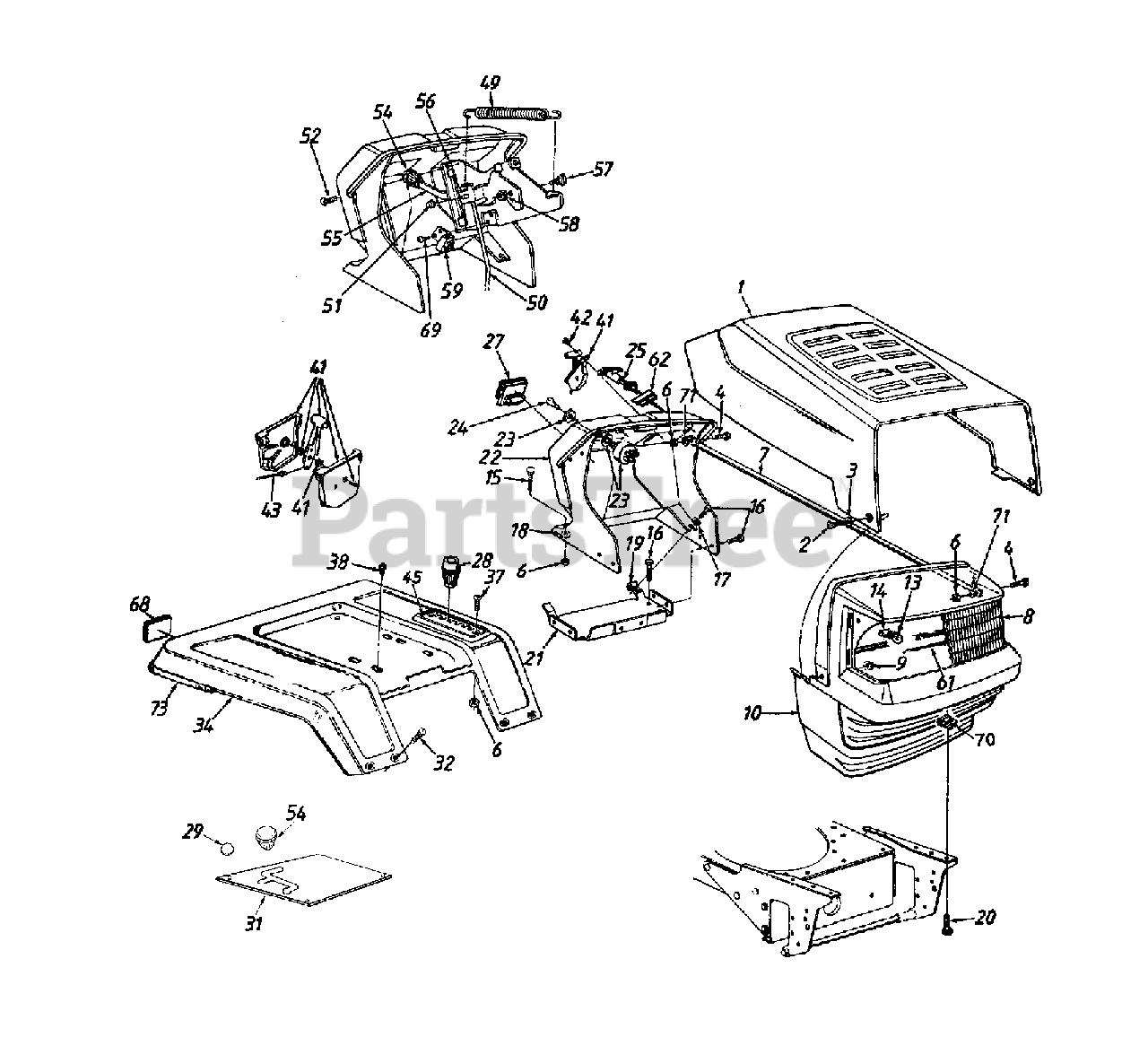

14AS820H352 - Yard Machines Garden Tractor (2002) (Walmart) Hood Style O Parts Diagram

Garden Tractor

Hood Style O Parts Diagram

  • Title

1

MTD 783-0250

Hood

Variations

MTD 783-0250-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0250-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0250-0498

HOOD-STY O W/LOUVE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0250-0499

No Longer Available HOOD-STY O - CUB BEIGE (0499)

$

$

Not available

MTD 783-0250-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0250-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0250-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0250-0648

HOOD-S - TECH GRAY (0648)

$

$

Not available

MTD 783-0250-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

MTD 783-0250-0660

No Longer Available HOOD-STY O - TEAL (0660)

$

$

Not available

MTD 783-0250-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0250-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0250-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0250-0667

HOOD-STY O W/LOUVE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0250-0668

No Longer Available HOOD-STY O - MOSS GREEN (0668)

$

$

Not available

MTD 783-0250-0674

HOOD-STY O W/LOUVE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0250-0677

No Longer Available HOOD-O STY - GRASS GREEN (0677)

$

$

Not available

MTD 783-0250-0686

No Longer Available HOOD-STY O - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 783-0250-0687

No Longer Available USE 783-0250A-0687 HOOD-O STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0250-0688

No Longer Available HOOD-STY O - SPRING GREEN (0688)

$

$

Not available

MTD 783-0250-0691

HOOD-STY O W/LOUVE - BLACK JACK (0691)

$

$

Not available

MTD 783-0250-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0250-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0250-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

2

MTD 738-0952

Shld. Bolt .375" Dia. x .125"
(Superseded to 938-0952A)

$6.99

$

In Stock, Qty 14

0

3

MTD 736-0175

Spr. Washer .265" I.D. x .562" OD
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

4

MTD 710-0751

Hex Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

7

MTD 749-0813A

Grille Support Rod

Variations

MTD 749-0813A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 731-1099A

Headlight Lens w/o Logo
(Superseded to 931-1099A)

$86.99

$

In Stock, only 2 left!

0

MTD 731-1767

Headlight Lens w/Logo
(Superseded to 931-1099A)

$86.99

$

In Stock, only 2 left!

0

9

MTD 712-3027

Flange L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

10

MTD 731-1097D

Grille
(Superseded to 931-1097G)

$179.99

$

In Stock, only 1 left!

0

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

14

MTD 725-1649

Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

15

MTD 710-0932

Carriage Bolt 1/4-20 x 1.0"
(Superseded to 710-0932A)

$3.99

$

In Stock, Qty 5

0

16

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

17

MTD 736-0173

Flat Washer .281" I.D. x .73" O.D.

$3.99

$

In Stock, Qty 10

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$3.99

$

In Stock, Qty 11

0

19

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

20

MTD 710-3008

Hex Bolt 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

21

MTD 783-0347A

Battery Plate
(Superseded to 783-0347A-0637)

Variations

MTD 783-0347A-0637

BRACKET-MT BATTERY - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 731-1678

Dash-w/Ammeter & Light Switch Holes

$

$

Not available

MTD 731-1679

Dash-w/o Ammeter & Light Switch

$

$

Not available

23

MTD 725-1717

Ignition Switch
(Superseded to 925-1717)

$48.99

$

Usually ships in 3-6 days

0

24

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

25

MTD 746-0614A

Choke Control

$22.99

$

In Stock, Qty 13

0

27

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: (Optional)

$28.99

$

In Stock, only 2 left!

0

28

MTD 720-0218

Shift Knob

$18.99

$

In Stock, only 1 left!

0

29

MTD 720-0166

Knob

$

$

Not available

31

MTD 783-0348

Shift Cover

Variations

MTD 783-0348-0637

No Longer Available COVER-SHIF - POWDER BLACK (0637)

$

$

Not available

MTD 783-0348-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0348-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0348-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

32

MTD 710-0167

Carriage Bolt 1/4-20 x .5"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

34

MTD 17426A

Fender

Variations

MTD 17426A-0483

FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17426A-0499

No Longer Available FENDER-RR - CUB BEIGE (0499)

$

$

Not available

MTD 17426A-0606

No Longer Available FENDER-RR - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 17426A-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17426A-0638

FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17426A-0648

FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17426A-0650

No Longer Available FENDER-RR - RED METALLIC (0650)

$

$

Not available

MTD 17426A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17426A-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

MTD 17426A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17426A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17426A-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17426A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17426A-0692

No Longer Available FENDER-RR - AGWAY BLUE (0692)

$

$

Not available

MTD 17426A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

37

MTD 710-0924

Truss Mach. Scr. #1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-0726

Hex Washer Hd. AB-Tap Scr. 5/16 x .75"

$3.99

$

In Stock, Qty 20+

0

41

MTD 831-0823A

Throttle Box Assembly

$30.99

$

In Stock, Qty 20+

0

42

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5"

$4.49

$

In Stock, Qty 12

0

43

MTD 746-0634

Throttle Control Wire 35"
(Superseded to 946-0634)

$10.99

$

In Stock, Qty 11

0

MTD 746-0630

Throttle Control Wire 39"
(Superseded to 946-0630A)

$26.99

$

Usually ships in 3-6 days

0

45

MTD 731-1360

6-Speed Selector Plate (820)
(Superseded to 931-1774)

$29.99

$

In Stock, only 3 left!

0

MTD 731-1774

7-Speed Selector Plate (840)
(Superseded to 931-1774)

$29.99

$

In Stock, only 3 left!

0

49

MTD 732-0626

Ext. Spring 5.06"

$11.99

$

In Stock, only 4 left!

0

50

MTD 747-0750A

Deck Control Rod

$28.99

$

Usually ships in 3-6 days

0

51

MTD 726-0106

Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

52

MTD 710-1017

Torx Mach. Scr. 1/4 x .62"

$7.99

$

In Stock, Qty 20+

0

54

MTD 720-0232

PTO Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

55

MTD 17500

PTO Lever

$

$

Not available

56

MTD 783-0461A

PTO Bracket
(Superseded to 783-0461A-0637)

Variations

MTD 783-0461A-0637

BRACKET-PT0 - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

58

MTD 712-3009

Hex L-Nut 5/16-18 Thd.

$6.49

$

In Stock, Qty 20+

0

59

MTD 725-1657A

Safety Switch
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

61

MTD 777-9206

Grille Reflector Label
(Superseded to 777X40318)

$

$

Not available

62

MTD 17782

Retainer Clip

$4.99

$

In Stock, only 3 left!

0

68

MTD 730-3000

Reflector
(Superseded to 930-3000)

Note: (Optional)

$16.99

$

In Stock, only 3 left!

0

69

MTD 710-1066

Hex Washer Hd. B-Tap Scr. #10 x .38"
(Superseded to 910-0224)

$3.49

$

In Stock, only 1 left!

0

70

MTD 726-0211

U-Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

71

MTD 736-0342

Flat Washer .28" I.D. x .75" O.D.

$6.99

$

Usually ships in 3-6 days

0

73

MTD 731-0511-81

Trim Strip 81"

$97.99

$

Usually ships in 3-6 days

0
