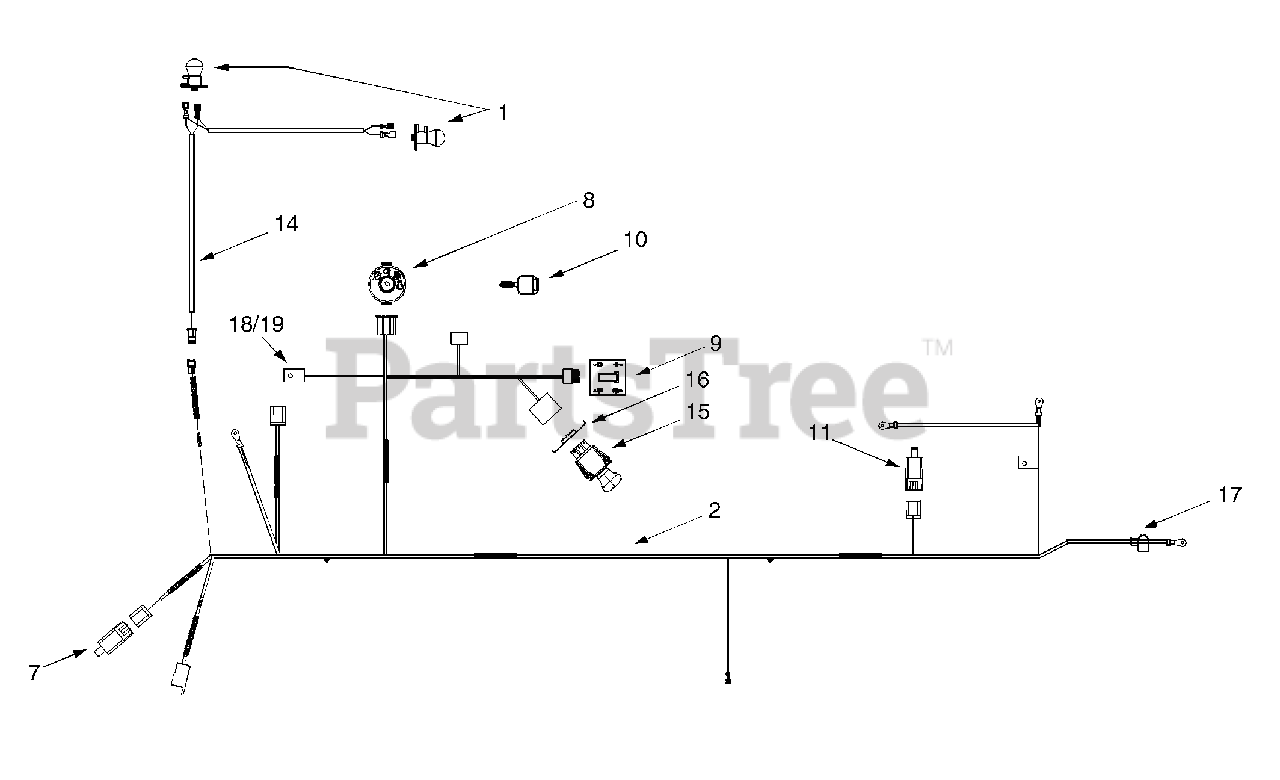

14AY809P063 - Troy-Bilt Garden Tractor (2000) Electrical Wiring Kohler Twin Parts Diagram

Garden Tractor

Electrical Wiring Kohler Twin Parts Diagram

  • Title

1

Troy-Bilt 625-0051

Bulb/Socket Headlight Assembly
(Superseded to 925-0051)

$15.99

$

In Stock, only 2 left!

0

2

MTD 629-0941

Wiring Harness w/o

Note: Ref. 14 (units w/Kohler Twin)

$

$

Not available

7

Troy-Bilt 725-1657A

Snap Mount Safety Interlock Switch (Brake)
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

8

Troy-Bilt 725-1741

Ignition Switch
(Superseded to 925-1741)

$41.99

$

In Stock, Qty 18

0

9

MTD 725-1743

Indicator Monitor / Hour Meter
(Superseded to 753-0908)

$

$

Not available

10

Troy-Bilt 725-1745

Ignition Key
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 725-1747

Safety Plunger Switch (Seat)
(Superseded to 925-1747)

$37.99

$

Usually ships in 3-6 days

0

?12

Troy-Bilt 736-0222

External Lock Washer, 1/4

$5.49

$

In Stock, only 3 left!

0

14

Troy-Bilt 629-0309

Headlight Harness
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$65.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 783-0462

Retainer Bracket

$7.99

$

In Stock, only 3 left!

0

17

MTD 725-3007A

Positive Terminal Cover (Boot)

$

$

Not available

18

Troy-Bilt 729-0357

Fuse Holder

$

$

Not available

19

Troy-Bilt 725-1381

20-amp Fuse
(Superseded to 925-1381)

$5.99

$

In Stock, Qty 14

0
