14AZ814K401 - Yard-Man Garden Tractor (2003) Engine Accessories Parts Diagram

Garden Tractor

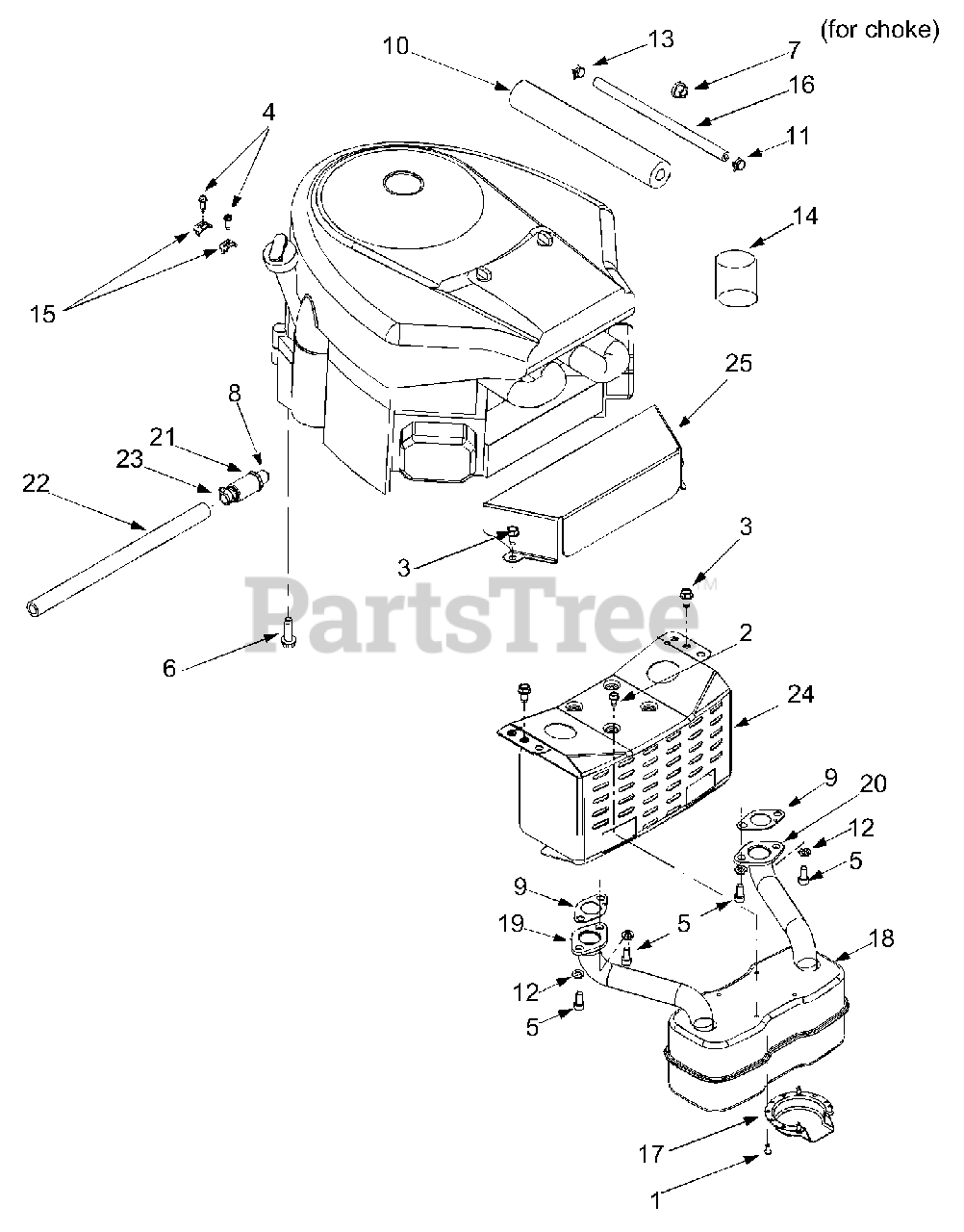

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0227

Self-tapping Screw, #8-18 x .50"

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-0726

AB Screw 5/16-12 x 0.75"

$

$

Currently unavailable

4

MTD 710-1237

Screw, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Socket Cap Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

TT Screw 3/8-16 x 1.250"

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

MTD 721-0331

Sealant

$

$

Currently unavailable

9

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

10

MTD 722-0263

Foam
(Superseded to 723-3066-24)

$16.99

$

In Stock, only 3 left!

0

11

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

12

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

14

UNKNOWN

$

$

Not available

15

MTD 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 20+

0

16

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

17

MTD 751-0564

Deflector: Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 20+

0

18

MTD 751-0616

Muffler: Dual Inlet
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 20+

0

19

MTD 751-0650

Exhaust Pipe RH
(Superseded to 751-0650B)

$63.99

$

Usually ships in 3-6 days

0

20

MTD 751-0651

Exhaust Pipe LH
(Superseded to 751-0651B)

$60.99

$

Usually ships in 3-6 days

0

21

MTD 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, Qty 20+

0

22

MTD 751-3141

Hose: Oil Drain Extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

23

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 7

0

24

MTD 783-0615B

Heat Shield: Muffler
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 3 left!

0

$64.99

$

In Stock, only 3 left!

0

25

MTD 783-0625C

Heat Shield

$111.99

$

Usually ships in 3-6 days

0
