14BY833P206 - Ranch King Garden Tractor (1998) Muffler Parts Diagram

Garden Tractor

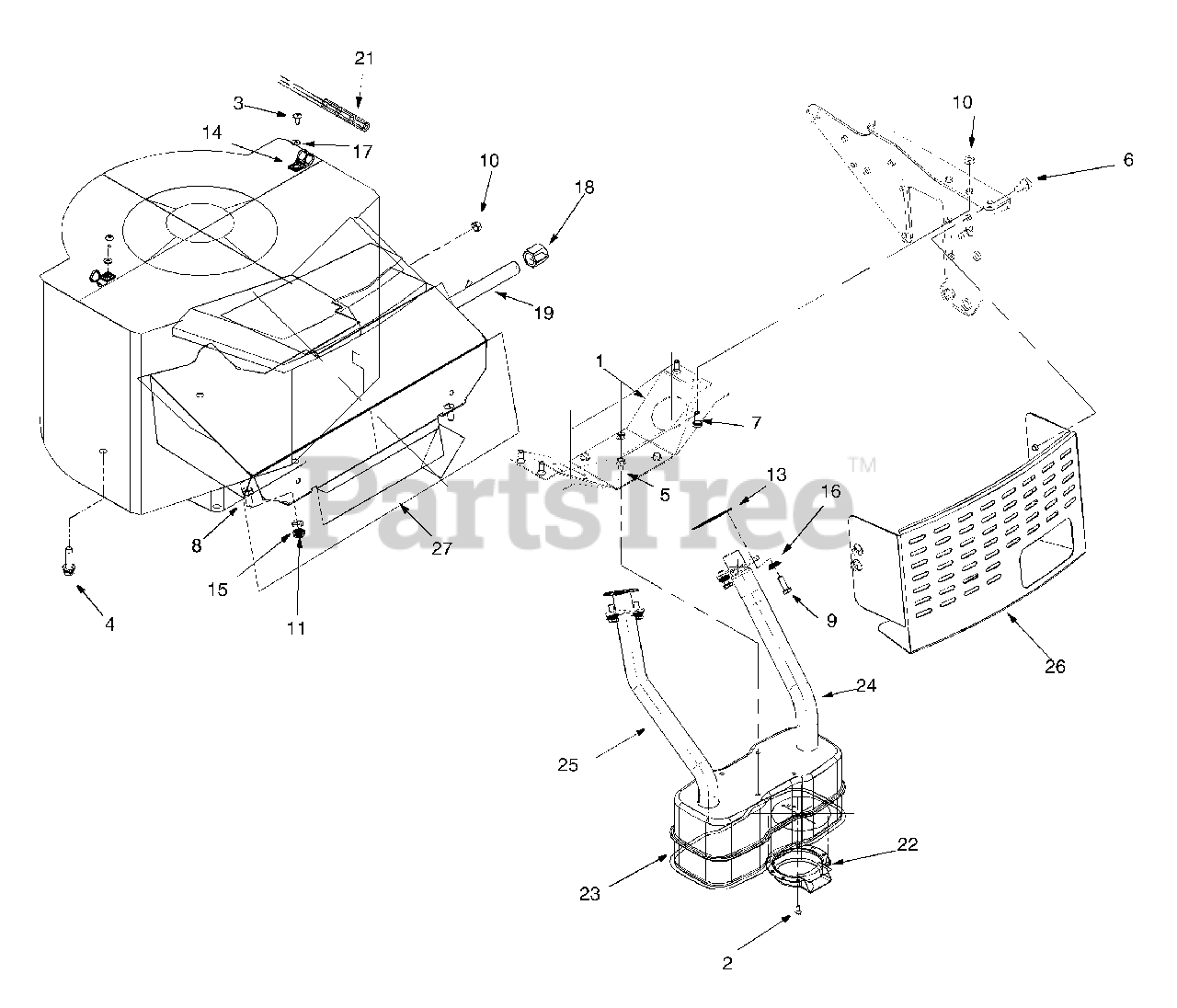

Muffler Parts Diagram

  • Title

1

MTD 17958

Muffler Mounting Brkt.

$

$

Not available

2

MTD 710-0148

Hex Wash Hd. Scr. #8-32 x .375" Lg.

$4.49

$

In Stock, Qty 16

0

3

MTD 710-0351

Pan Hd. Scr. #10-16 x .5" Lg.

$4.49

$

In Stock, only 3 left!

0

4

MTD 710-0502A

Hex Wash. Hd. Scr. 3/8-16 x 1.25"

$6.99

$

In Stock, Qty 7

0

5

MTD 710-0599

Hex Wash. Hd. Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0604

Hex Wash. Hd. Scr. 5/16-18 x .625"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

9

7103015

Hex Bolt 1/4-20 x .75" Lg.

$

$

Not available

10

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 18

0

11

MTD 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

13

MTD 721-0346

Exhaust Gasket

$8.49

$

Usually ships in 3-6 days

0

14

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

15

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

MTD 736-3067

Fl-Wash. .188" I.D. x .437"

$3.49

$

Usually ships in 3-6 days

0

18

MTD 737-0143

Oil Drain Cap

$

$

Not available

19

MTD 737-0164

Straight Pipe 3/8-18 NPT. x 5" Lg.
(Superseded to 937-0164)

$

$

Not available

21

MTD 751-0535-46

Fuel Line 46" Lg.
(Superseded to 751-10349-54)

$53.99

$

Usually ships in 3-6 days

0

22

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 20+

0

23

MTD 751-0616

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 20+

0

24

MTD 751-0623

Exhaust Pipe-L.H.

$

$

Not available

25

MTD 751-0624

Exhaust Pipe-R.H.

$

$

Not available

26

MTD 783-0023A

Tractor Heat Shield
(Superseded to 783-0023A-0637)

Variations

MTD 783-0023A-0637

SHEILD-HEAT - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 782-0452

Heat Shield

$

$

Currently unavailable
