15008 (21A-530-081) - Troy-Bilt Pony Rear-Tine Tiller (SN: 0400101 - 1199999) Row Marker & Bumper Attachments Parts Diagram

Pony Rear-Tine Tiller

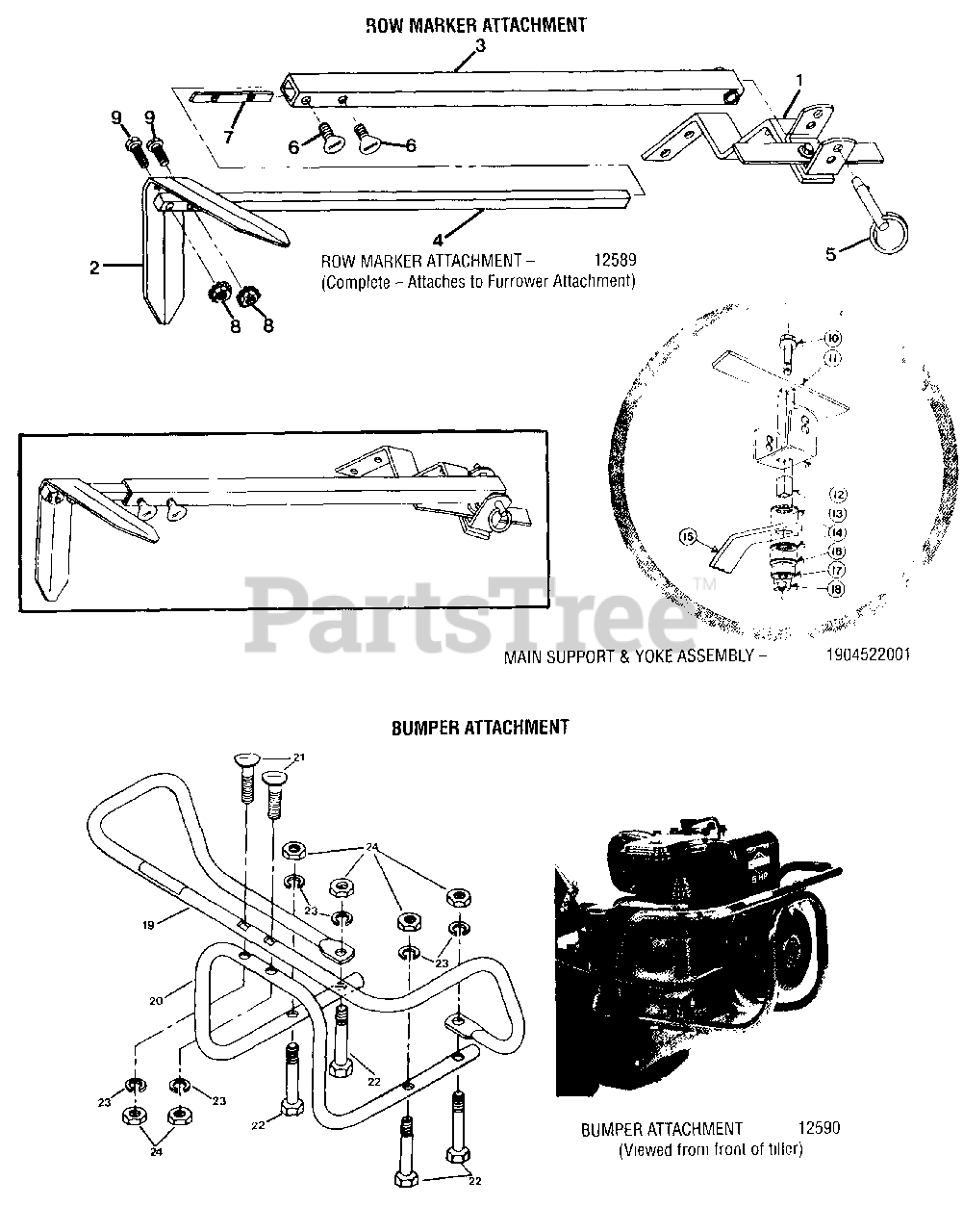

Row Marker & Bumper Attachments Parts Diagram

  • Title

1

Troy-Bilt 1904522001

Main Support & Yoke Assy complete

$

$

Currently unavailable

2

MTD 1594

Marker Blade-blade only

$

$

Not available

3

MTD 1904524001

Marker Arm-main arm

$

$

Not available

4

MTD 1904523001

Marker Arm-extension arm with stop pin

$

$

Not available

5

Troy-Bilt 9347

Hitch Pin
(Superseded to GW-9347)

Note: (Incl. in Hardware Pkg #1837)

$13.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 9786

Thumbscrew-1/4-20 x 1/2,

Note: Not avail. sep. (see hardware pkg. #1837)

$

$

Currently unavailable

7

MTD 1596

Nut Bar

Note: (Incl. in hardware pkg #1837)

$

$

Not available

8

MTD 9828

Nut-hex, 10-24 w/attached start washers

Note: Not avail sep. (see hardware pkg #1837)

$

$

Not available

9

Troy-Bilt 1100135

Screw-round hd,10-24 x 1

Note: Not avail. sep (see hardware pkg #1837)

$

$

Not available

MTD 1837

Hardware Package

Note: Includes one #9347 hitch pin (Ref 5), two #9786 thumbscrews (Ref 6), one #1596 nut bar (Ref. 7), two #9828 hex nuts (Ref 8), two 1100135 screws (Ref. 9)

$

$

Not available

Row Marker Attachment & Pony Hiller/Furrower Attachment complete

Note: Incl. #12579 Pony Hiller/Furrower and #12589 Row Marker

$

$

Not available

Row Marker Attachment complete

Note: Attaches to furrower attachment #12579, includes #1904522001 Main Support & Yoke Assy

$

$

Not available

10

Troy-Bilt 1186349

Screw-hex flanged locking, 3/8-16 x 1-1/2

$3.49

$

Usually ships in 3-6 days

0

11

MTD 1593

Stop Bar

$

$

Not available

12

MTD 1592

Yoke

$

$

Not available

13

MTD 1591

Tube Key-square

$

$

Not available

14

Troy-Bilt 1590

Washer-friction
(Superseded to GW-1590)

$7.49

$

Usually ships in 3-6 days

0

15

MTD 1588

Main Support

$

$

Not available

16

MTD 1589

Washer-square hole

$

$

Not available

17

MTD 9925

Washer-disc spring

$

$

Not available

18

Troy-Bilt 1186231

Nut-hex 3/8-16
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

19

MTD 1901456001

Bumper-top section

$

$

Not available

20

Troy-Bilt 1900769001

Bumper-bottom section

$

$

Currently unavailable

21

Troy-Bilt 9795

Bolt-curved head, 5/16-18 x 2
(Superseded to 710-1174)

Note: (Special bolt), also see #1874 hardware kit

$6.99

$

In Stock, Qty 20+

0

22

MTD 1111608

Bolt-hex hd, 5/16-18 x 2-1/2,

Note: Not avail. separately (order #1874 hardware kit)

$

$

Not available

23

Troy-Bilt 1100242

Lockwasher-5/16,
(Superseded to 936-0119)

Note: Not avail. separately (order 11874 hardware kit)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 1186230

Nut-hex, 5/16-18,
(Superseded to 912-3010)

Note: Not avail. separately (order #1874 hardware kit)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1874

Hardware Kit

Note: Includes two #9795 curved head bolts, four #1111608 hex hd bolts, six #1100242 lock-washers, six #1186230 hex nuts

$

$

Currently unavailable

Bumper Attachment

Note: Complete attachment with mounting instructions included

$

$

Not available
