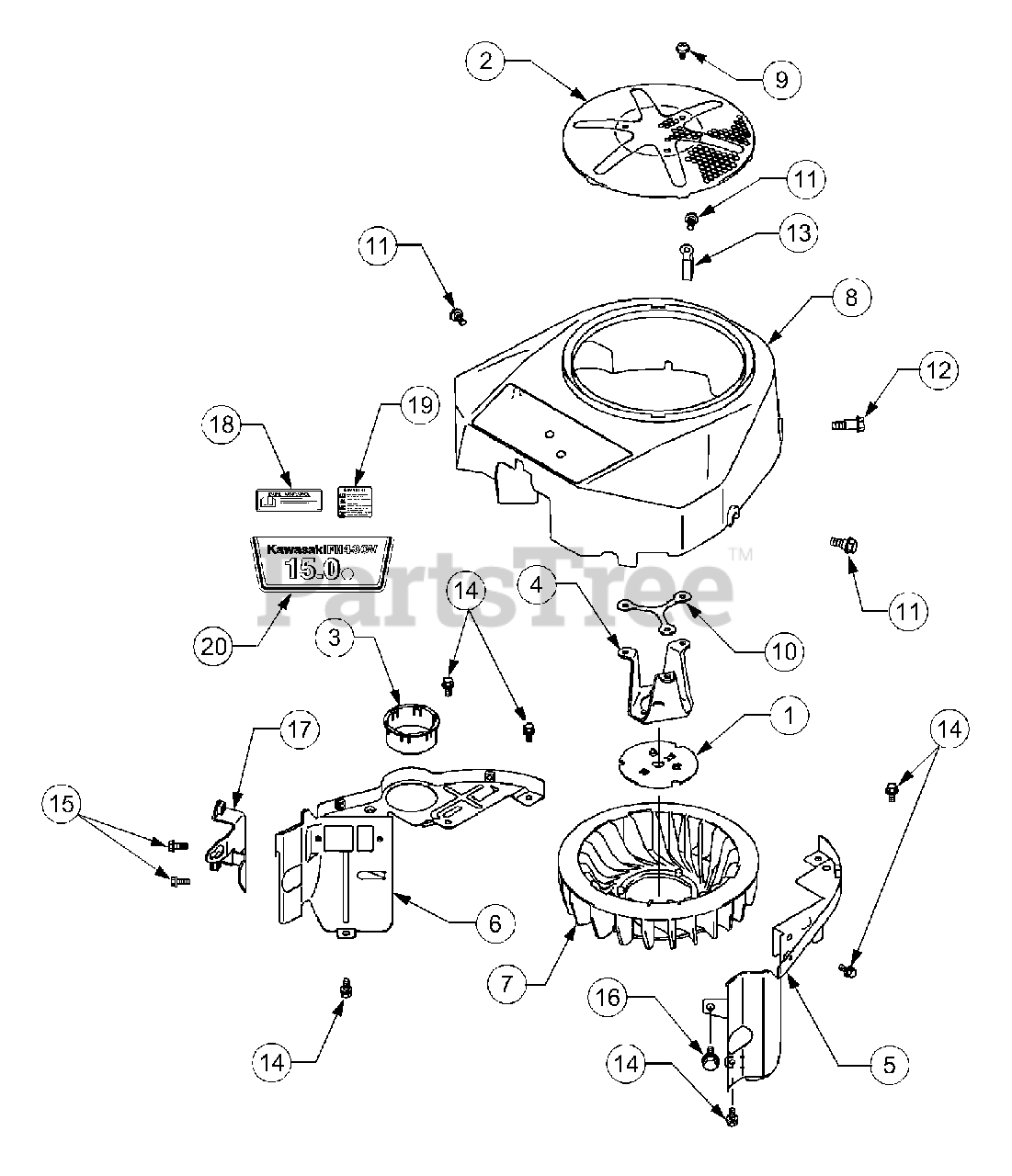

1525 (13A-221F100) - Cub Cadet Garden Tractor Cooling Parts Diagram

Garden Tractor

Cooling Parts Diagram

  • Title

1

Cub Cadet KM-13270-7007

Plate

$5.99

$

In Stock, Qty 5

0

2

Cub Cadet KM-14037-7010

Screen
(Superseded to KM-14037-70209H)

$33.99

$

In Stock, Qty 7

0

3

Cub Cadet KM-14091-7008

Cover

$3.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-23062-7008

Bracket, Comp
(Superseded to KM-23062-7010)

$10.99

$

In Stock, Qty 8

0

5

Cub Cadet KM-49089-7023

Shroud, Engine, #2 Cylinder

$21.99

$

In Stock, only 2 left!

0

6

Cub Cadet KM-49089-7025

Shroud, Engine

$

$

Not available

7

Cub Cadet KM-59041-7001

Fan
(Superseded to KM-59041-0020)

$19.99

$

In Stock, Qty 14

0

8

Cub Cadet KM-59066-7008

Housing, Fan

$99.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-92009-7008

Screw, 6x10
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-92026-7007

Spacer

$5.99

$

In Stock, Qty 19

0

11

Cub Cadet KM-92153-7007

Bolt

$4.49

$

In Stock, only 3 left!

0

12

Cub Cadet KM-92153-7008

Bolt
(Superseded to KM-92154-2823)

$0.99

$

In Stock, Qty 11

0

13

Cub Cadet KM-92171-7005

Clamp

$9.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-130B0612

Bolt, Flanged
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-130B0616

Bolt, Flanged
(Superseded to KM-130BA0616)

$1.49

$

In Stock, only 3 left!

0

16

Cub Cadet KM-130B0816

Bolt, Flanged
(Superseded to KM-130BA0816)

$1.99

$

In Stock, Qty 5

0

17

KM-23062-7004-9H

Bracket

$

$

Not available

18

Cub Cadet KM-56033-7001

Label, Manual

$1.49

$

In Stock, Qty 8

0

19

Cub Cadet KM-56070-7001

Label, Warning
(Superseded to KM-56071-0216)

$2.99

$

In Stock, only 3 left!

0

20

Cub Cadet KM-56080-7016

Label, Brand
(Superseded to KM-56080-0737)

$3.49

$

Usually ships in 2-5 days

0
