1529 (13A-261H100) - Cub Cadet Garden Tractor Piston/Crankshaft Parts Diagram

Garden Tractor

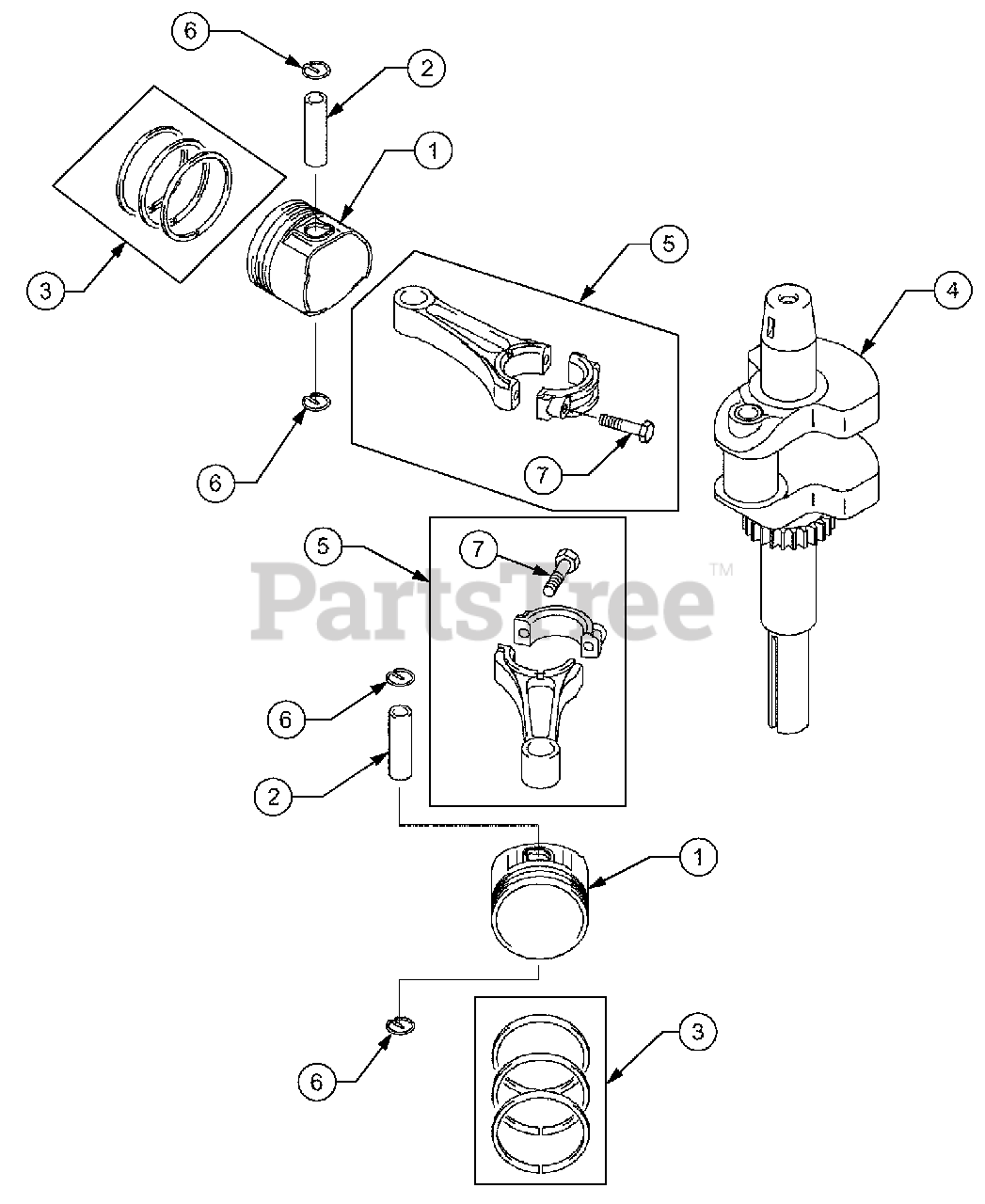

Piston/Crankshaft Parts Diagram

  • Title

1

Cub Cadet KM-13001-7010

Piston, Engine

$79.99

$

In Stock, Qty 7

0

2

Cub Cadet KM-13002-7001

Pin, Piston

$4.99

$

In Stock, Qty 9

0

3

Cub Cadet KM-13008-6060

Ring Set, Piston

$37.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-13031-7036

Crankshaft, Comp
(Superseded to KM-13031-7073)

$325.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-13251-7010

Rod Assy, Connecting
(Superseded to KM-13251-0724)

$59.99

$

In Stock, Qty 6

0

6

Cub Cadet KM-92033-7005

Ring, Snap

$0.99

$

In Stock, Qty 16

0

7

Cub Cadet KM-92151-7017

Bolt, 6 x 35
(Superseded to KM-92154-2842)

$1.49

$

In Stock, only 4 left!

0
