1569 - Troy-Bilt Row Marker Row Marker Attachment 12589 Parts Diagram

Row Marker

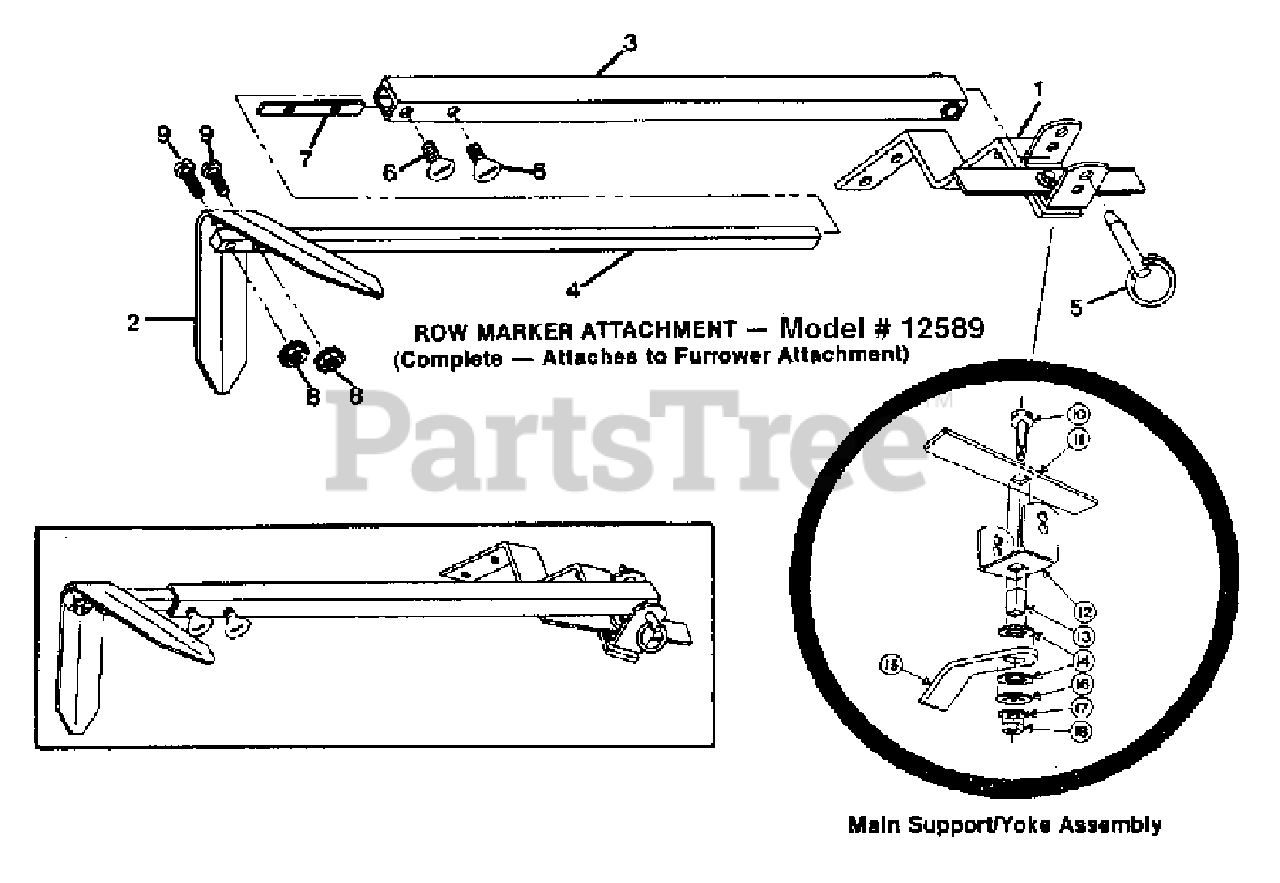

Row Marker Attachment 12589 Parts Diagram

  • Title

1

Troy-Bilt 1904522001

Main support & yoke assembly, complete

Note: Includes Ref No's. 10, 11, 12, 13, 14, 15, 16, 17, 18

$

$

Currently unavailable

2

MTD 1594

Marker blade (blade only)

$

$

Not available

3

MTD 1904524001

Marker arm, main arm

$

$

Not available

4

MTD 1904523001

Marker arm, ext. arm w/stop pin

$

$

Not available

5

Troy-Bilt 9347

Hitch pin
(Superseded to GW-9347)

Note: (See hardware pkg. No. 1837)

$13.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 9786

Thumbscrew, 1/4-20 x 1/2

Note: Not available separately (See hardware pkg. No. 1837)

$

$

Currently unavailable

7

MTD 1596

Nut bar

Note: (Incl. in hardware pkg. No. 1837)

$

$

Not available

8

MTD 9828

Nut, hex, No. 10-24 w/star washer

Note: Not available separately (See hardware pkg. No. 1837)

$

$

Not available

9

Troy-Bilt 1100135

Screw, round hd., 10-24 x 1

Note: Not available separately (See hardware pkg. No. 1837)

$

$

Not available

MTD 1837

Hardware package

Note: Incl. Ref. No's. 5 (qty 1), 6 (qty. 2), 7 (qty. 1), 8 (qty. 2) and 9 (qty. 2)

$

$

Not available

Troy-Bilt 12582

Row marker attachment & hiller/furrower attachment combination

Note: Incl. Part No. 12579 Hiller/Furrower & Part No. 12589 Row Marker

$

$

Currently unavailable

10

Troy-Bilt 90047

Bolt, whiz lock, 3/8-16 x 1-1/2

$

$

Currently unavailable

11

MTD 1593

Stop bar

$

$

Not available

12

MTD 1592

Yoke

$

$

Not available

13

MTD 1591

Tube key, square

$

$

Not available

14

Troy-Bilt 1590

Washer, friction
(Superseded to GW-1590)

$7.49

$

Usually ships in 3-6 days

0

15

MTD 1588

Main support

$

$

Not available

16

MTD 1589

Washer, square hole

$

$

Not available

17

MTD 9925

Washer, disc spring

$

$

Not available

18

Troy-Bilt 1186231

Nut, hex, 3/8-16
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

12589

Troy-Bilt 12589

Row marker attachment, complete

Note: (Attaches to Furrower Attachment)

$

$

Currently unavailable

Troy-Bilt 1569

Main support & yoke assembly

$

$

Currently unavailable
