16-56BY01 - Toro 56" Snow/Dozer Blade (1990) 56" (142 CM) SNOW BLADE VEHICLE IDENTIFICATION NUMBER 16-56BY01 Parts Diagram

56" Snow/Dozer Blade

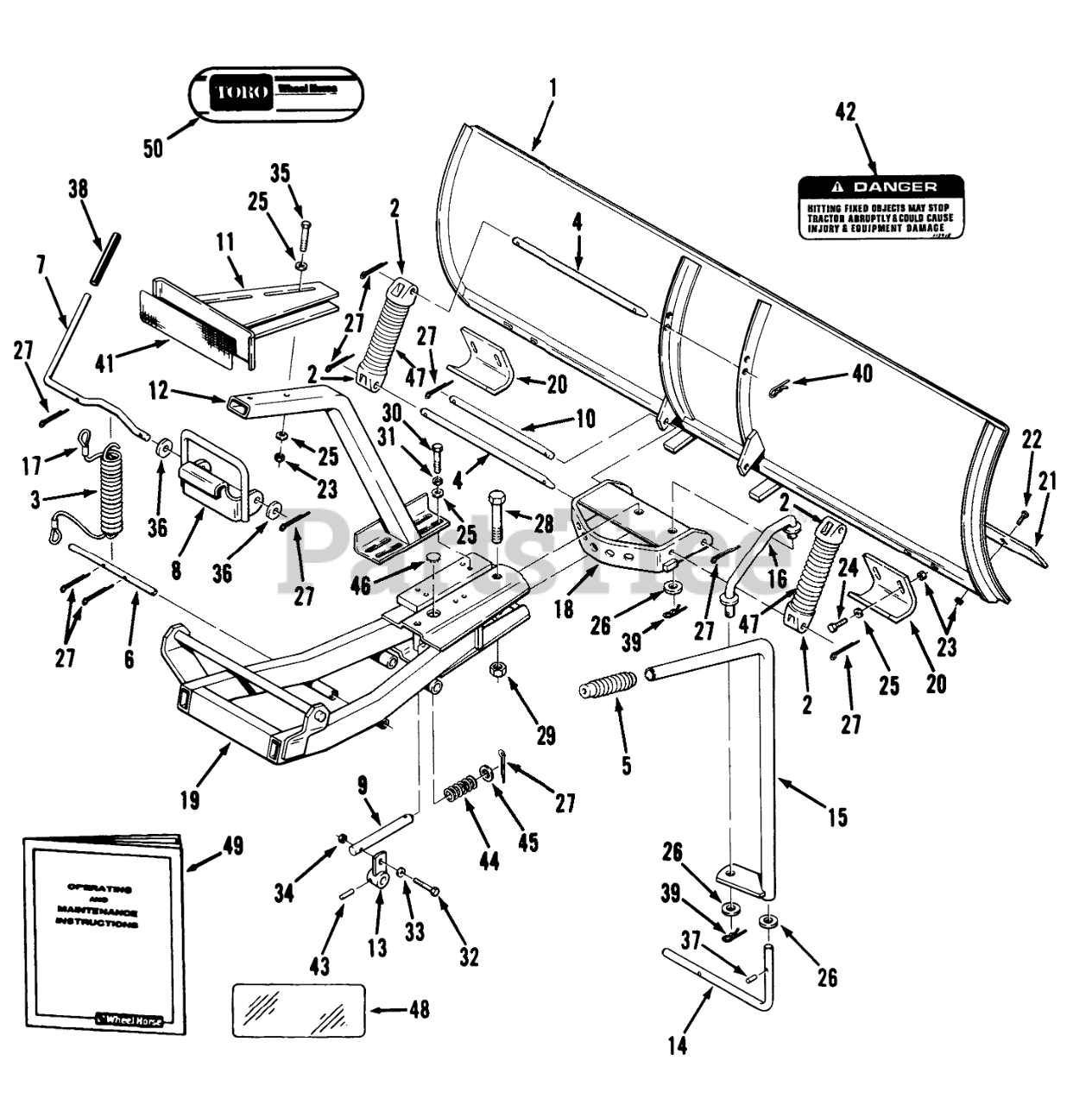

56" (142 CM) SNOW BLADE VEHICLE IDENTIFICATION NUMBER 16-56BY01 Parts Diagram

  • Title

1

Toro 116780

WLDMT-BLADE 56"
(Superseded to 116780-01)

$728.99

$

Usually ships in 3-6 days

0

2

Toro 5125

Lug

$

$

Not available

3

Toro 4629

SPRING

$70.99

$

In Stock, only 2 left!

0

4

Toro 5120

ROD-PIVOT, BLADE

$53.99

$

Usually ships in 3-6 days

0

5

Toro 6542

HANDGRIP

$14.99

$

Usually ships in 3-6 days

0

6

Toro 117178

SHAFT-LOWER R

$

$

Not available

7

Toro 117179

SHAFT-UPPER

$

$

Not available

8

Toro 119300

WLDMT-BRKT & HAND B

$

$

Not available

9

Toro 117850

Pin Index
(Superseded to 88-6520)

$100.99

$

Usually ships in 3-6 days

0

10

Toro 4564

ROD-LOWER

$34.99

$

Usually ships in 3-6 days

0

11

Toro 119320

WLDMT-PEDAL UPPER R

$

$

Not available

12

Toro 119330

WLDMT-PEDAL LOWER R

$

$

Not available

13

Toro 117970

WLDMT-LEVER INDEX R

$

$

Not available

14

Toro 118000

SHAFT-INDEX R

$

$

Not available

15

Toro 118010

HANDLE INDEX R

$

$

Not available

16

Toro 118290

WLDMT-ROD INDEX

$

$

Not available

17

Toro 118050

Cable
(Superseded to 78-1790)

Note: Included in Loose Parts Package.

$55.99

$

Usually ships in 3-6 days

0

18

Toro 117283

WLDMT-QUADRANT R

$

$

Not available

19

Toro 116845

WLDMT-FRAME BLADE R

$

$

Not available

20

Toro 117424

SKID
(Superseded to 117424-03)

$71.99

$

Usually ships in 3-6 days

0

21

Toro 103618

PLATE-BLADE EDGE
(Superseded to 103618-03)

$

$

Not available

22

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

23

Toro 915663

NUT
(Superseded to 3296-39)

Note: Included in Loose Parts Package.

$2.99

$

In Stock, Qty 20+

0

24

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

25

Toro 920039

Washer
(Superseded to 3256-4)

Note: Included in Loose Parts Package.

$1.99

$

In Stock, Qty 20+

0

26

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 13

0

27

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

Note: Included in Loose Parts Package.

$0.99

$

Usually ships in 3-6 days

0

28

Toro 908256

Bolt
(Superseded to 3216-7)

$21.99

$

Usually ships in 3-6 days

0

29

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 9

0

30

Toro 908032

Bolt
(Superseded to 323-4)

Note: Included in Loose Parts Package.

$3.99

$

In Stock, Qty 19

0

31

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

Note: Included in Loose Parts Package.

$0.99

$

In Stock, Qty 14

0

32

Toro 908021

Bolt
(Superseded to 322-7)

Note: Included in Loose Parts Package.

$1.49

$

In Stock, Qty 20+

0

33

Toro 920038

Collar
(Superseded to 3-2563)

Note: Included in Loose Parts Package.

$0.99

$

In Stock, Qty 18

0

34

Toro 915662

Nut
(Superseded to 3296-29)

Note: Included in Loose Parts Package.

$2.49

$

In Stock, Qty 20+

0

35

Toro 908038

Bolt
(Superseded to 323-10)

Note: Included in Loose Parts Package.

$0.99

$

In Stock, Qty 20+

0

36

Toro 920011

Washer
(Superseded to 3256-26)

Note: Included in Loose Parts Package.

$0.99

$

In Stock, Qty 20+

0

37

Toro 933190

PIN-SPIROL

$

$

Not available

38

Toro 9038

GRIP

Note: Included in Loose Parts Package.

$5.99

$

In Stock, Qty 5

0

39

Toro 932035

PIN-4

Note: Included in Loose Parts Package.

$

$

Not available

40

Toro 933512

Hairpin
(Superseded to 9335124)

Note: Included in Loose Parts Package.

$2.99

$

In Stock, only 1 left!

0

41

Toro 118581

PAD FOOTREST

$

$

Not available

42

Toro 113915

DECAL-DANGER

$

$

Not available

43

Toro 933190

PIN-SPIROL

$

$

Not available

44

Toro 119160

Spring
(Superseded to 235-4)

$

$

Not available

45

Toro 920013

WASHER
(Superseded to 3256-27)

Note: Included in Loose Parts Package.

$2.99

$

Usually ships in 3-6 days

0

46

Toro 4944

PLUG

$7.99

$

Usually ships in 3-6 days

0

47

Toro 5117

Spring
(Superseded to 105-1386-03)

$120.99

$

Usually ships in 3-6 days

0

48

Toro 112403

DECAL-OVERLAY

$7.49

$

Usually ships in 3-6 days

0

49

Toro 810671R1

Operator-s Manual

$

$

Currently unavailable

50

Toro 117516

Decal
(Superseded to 76-1330)

$9.99

$

In Stock, only 1 left!

0
