1600 - Husqvarna Chainsaw, Electric (SN: 19984000001 & Above) CHAIN BRAKE Parts Diagram

Chainsaw, Electric

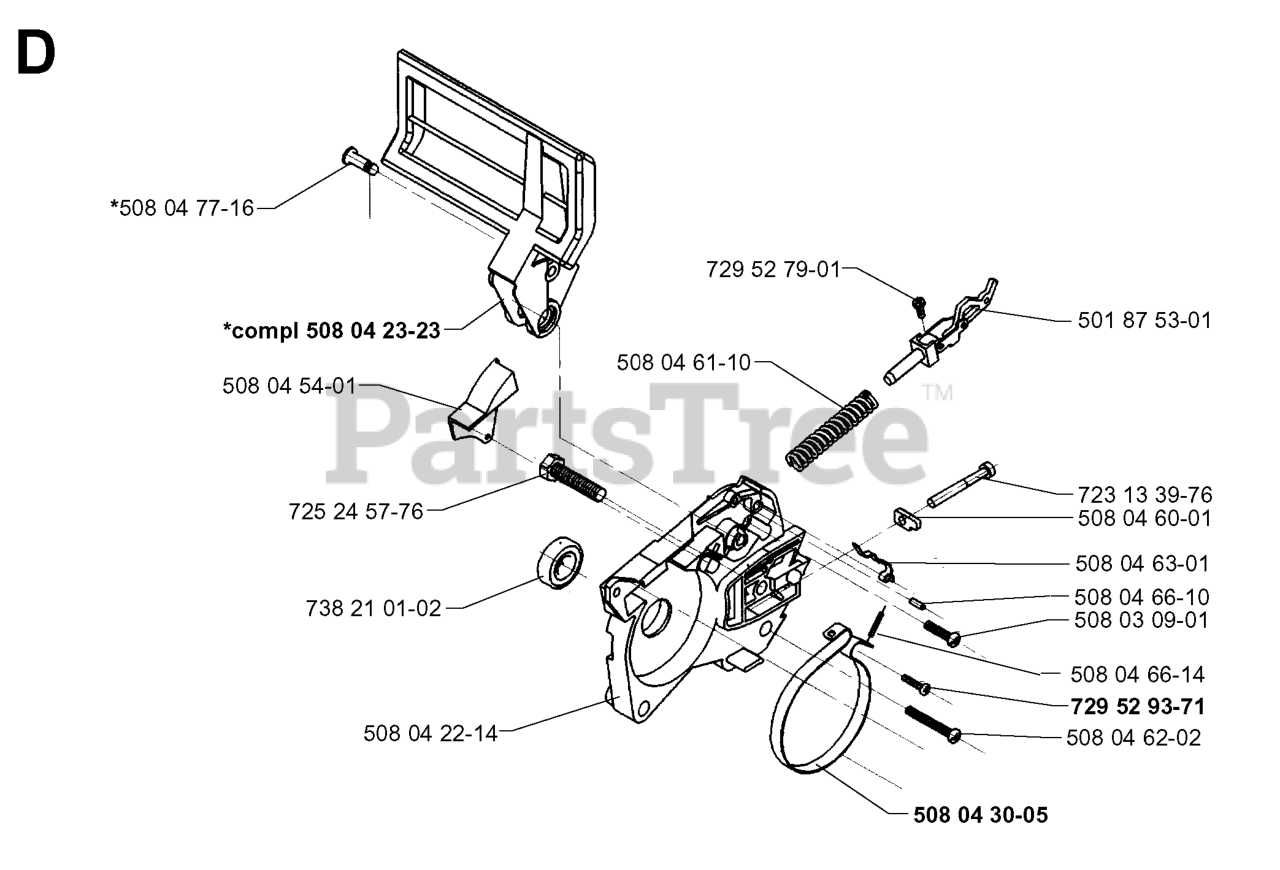

CHAIN BRAKE Parts Diagram

  • Title

508 04 77-16

Husqvarna 508047716

Pin

$

$

Not available

508 04 23-23

Husqvarna 508042323

HANDGUARD

$31.99

$

In Stock, Qty 8

0

508 04 54-01

Husqvarna 508045401

INSULATOR

$9.49

$

In Stock, Qty 11

0

725 24 57-76

Husqvarna 725245776

SCREW

$4.99

$

Usually ships in 3-10 days

0

738 21 01-02

Husqvarna 738210102

BALL BEARING

$31.99

$

In Stock, Qty 5

0

508 04 22-14

Husqvarna 508042214

BRACKET
(Superseded to 508042216)

$

$

Not available

508 04 61-10

Husqvarna 508046110

SPRING

$

$

Not available

729 52 79-01

Husqvarna 729527901

SCREW

$3.49

$

Usually ships in 3-10 days

0

501 87 53-01

Husqvarna 501875301

KNEE-JOINT

$37.99

$

Usually ships in 3-10 days

0

723 13 39-76

Husqvarna 723133976

SCREW
(Superseded to 508046203)

$6.99

$

In Stock, Qty 20+

0

508 04 60-01

Husqvarna 508046001

CHAIN TENSIONER

$10.99

$

In Stock, Qty 15

0

508 04 63-01

Husqvarna 508046301

SPRING

$

$

Not available

508 04 66-10

Husqvarna 508046610

PIN

$

$

Not available

508 03 09-01

Husqvarna 508030901

SCREW

$3.49

$

Usually ships in 3-10 days

0

508 04 66-14

Husqvarna 508046614

PIN

$

$

Not available

729 52 93-71

Husqvarna 729529371

SCREW

$2.49

$

Usually ships in 3-10 days

0

508 04 62-02

Husqvarna 508046202

SCREW

$2.49

$

Usually ships in 3-10 days

0

508 04 30-05

Husqvarna 508043005

BRAKE BAND

$10.37

$

In Stock, only 2 left!

0
