1600197 - Simplicity 57" Sickle Bar 57" Sickle Bar-Drive Group Parts Diagram

57" Sickle Bar

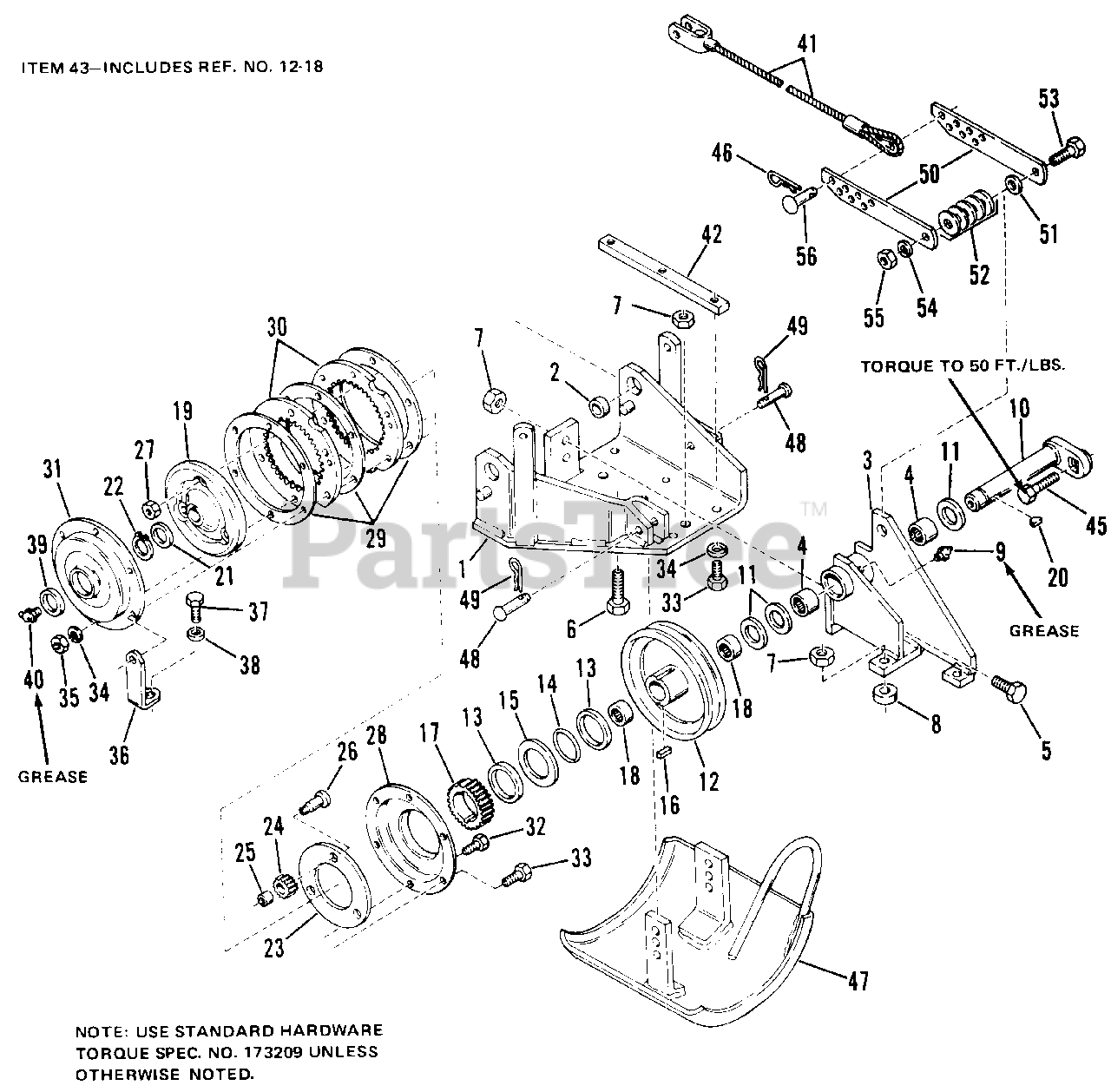

57" Sickle Bar-Drive Group Parts Diagram

  • Title

1

Simplicity 174184

PLATE ASSY, Mounting

$

$

Not available

2

Simplicity 173664

SPACER

$

$

Not available

3

Simplicity 174150

HOUSING SUB ASSY, Bearing

$

$

Not available

4

Simplicity 173739

BEARING

$

$

Not available

5

Simplicity 2820677

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4

$

$

Not available

6

Simplicity 2823027

CAPSCREW, Hex Hd., 7/16-14 x 1-3/4

$

$

Not available

7

Simplicity 2824058

NUT, Hex, Full Lock, 7/16-14

$

$

Not available

8

Simplicity 174119

SPACER

$

$

Not available

9

Simplicity 2812808SM

FITTING, Lube, 1/4-28

$4.49

$

In Stock, only 2 left!

0

10

Simplicity 174193

CRANKSHAFT

$

$

Not available

11

Simplicity 2173140

WASHER

$

$

Not available

12

Simplicity 173557

HUB & PULLEY

$

$

Not available

13

Simplicity 161037

WASHER

$

$

Not available

14

Simplicity 157326

RING

$

$

Not available

15

Simplicity 161075

SEAL

$

$

Not available

16

Simplicity 173570

KEY

$

$

Not available

17

Simplicity 173553

GEAR, Sun

$

$

Not available

18

Simplicity 173738

BEARING

$

$

Not available

19

Simplicity 173542

HUB, Spider

$

$

Not available

20

Simplicity 2805123SM

KEY, Woodruff, No. 9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 7

0

21

Simplicity 2173668SM

WASHER

$9.49

$

In Stock, only 2 left!

0

22

Simplicity 8051040

RING, Retaining

$

$

Not available

23

Simplicity 157333

RING, Bolt

$

$

Not available

24

Simplicity 157335

PINION

$

$

Not available

25

Simplicity 157337

BEARING, Needle

$

$

Not available

26

Simplicity 157336

PIN, Pinion

$

$

Not available

27

Simplicity 2828698

NUT, Hex, Full Lock, Jam, 5/16-18

$

$

Not available

28

Simplicity 161054

COVER, L.H.

$

$

Not available

29

Simplicity 161129

GASKET

$

$

Not available

30

Simplicity 157382

GEAR, Ring

$

$

Not available

31

Simplicity 173550

COVER

$

$

Not available

32

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

33

Simplicity 2823325

CAPSCREW, Hex Hd., 5/16-18 x 7/8

$

$

Not available

34

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 174517

BRACKET

$

$

Not available

37

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

38

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

39

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, Qty 6

0

40

Simplicity 2815019SM

FITTING, Lube, Elbow 90, 1/4-28

$4.49

$

In Stock, only 2 left!

0

41

Simplicity 174235

CABLE ASSY

$

$

Not available

42

Simplicity 173632

BAR, Spacer

$

$

Not available

43

Simplicity 173556

PULLEY & HUB ASSY (Incl. Ref. nos. 12-18)

$

$

Not available

44

Simplicity 173667

HOUSING SUB ASSY, Bearing

$

$

Not available

45

Simplicity 926109

CAPSCREW, Hex Hd., 7/16-14 x 2-1/4

$

$

Not available

46

Simplicity 2106787

CLIP, Spring

$

$

Not available

47

Simplicity 174178

SHOE ASSY

$

$

Not available

48

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 20+

0

49

Simplicity 2106788

CLIP, Spring

$

$

Not available

50

Simplicity 174238

BRACKET

$

$

Not available

51

Simplicity 121163

SPACER, Pinion

$

$

Not available

52

Simplicity 2156089

WASHER

$

$

Not available

53

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

54

Simplicity 1916965SM

LOCKWASHER, Spring, 5/16
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

55

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

56

Simplicity 1729281SM

PIN

$8.49

$

In Stock, only 1 left!

0
